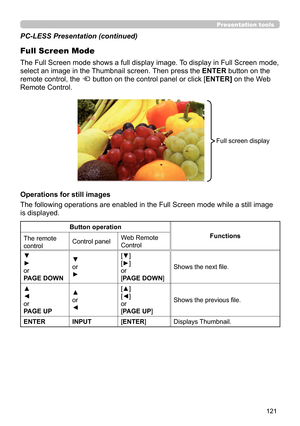

Dukane Projector 8120WIA User Manual

121
Presentation tools
PC-LESS Presentation (continued)
The Full Screen mode shows a full display image. To display in Full Screen mode,
select an image in the Thumbnail screen. Then press the ENTER button on the
remote control, the
 button on the control panel or click [ENTER] on the Web
Remote Control.
Full Screen Mode
Button operation
Functions
The remote
control Control panel
Web Remote
Control
▼
►
or
PAGE DOWN ▼
or
► [▼]
[►]
or
[PAGE DOWN]
Shows the next file.
▲
◄
or
PAGE UP
▲
or...

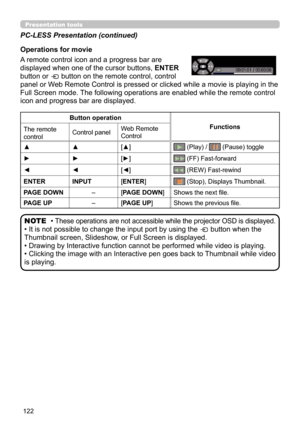

122
Presentation tools
PC-LESS Presentation (continued)
Button operationFunctions
The remote
control Control panel
Web Remote
Control
▲ ▲[▲]
 (Play) /  (Pause) toggle
►►[►] (FF) Fast-forward
◄◄[◄] (REW) Fast-rewind
ENTER INPUT [ENTER] (Stop), Displays Thumbnail.
PAGE DOWN –[PAGE DOWN]
Shows the next file.
PAGE UP –[PAGE UP]Shows the previous file.
• These operations are not accessible while the projector OSD is displayed.
• It is not possible to change the input port by using the  button when the...

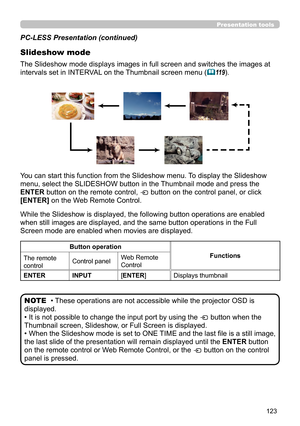

123
Presentation tools
PC-LESS Presentation (continued)
Slideshow mode
While the Slideshow is displayed, the following button operations are enabled
when still images are displayed, and the same button operations in the Full
Screen mode are enabled when movies are displayed.
• These operations are not accessible while the projector OSD is
displayed.
• It is not possible to change the input port by using the
 button when the
Thumbnail screen, Slideshow, or Full Screen is displayed.
•  When the...

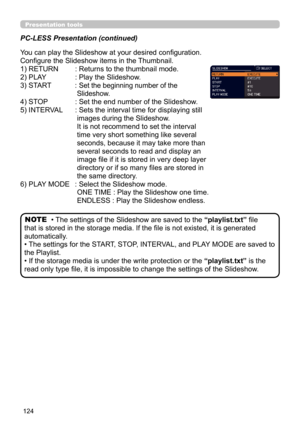

124
Presentation tools
PC-LESS Presentation (continued)
You can play the Slideshow at your desired configuration.
Configure the Slideshow items in the Thumbnail.
1) RETURN
  : Returns to the thumbnail mode.
2) PLAY
  :  Play the Slideshow.
3) START
  :  Set the beginning number of the
Slideshow.
4) STOP   : Set the end number of the Slideshow.
5) INTERVAL
  :  Sets the interval time for displaying still
images during the Slideshow.
It is not recommend to set the interval
time very short something...

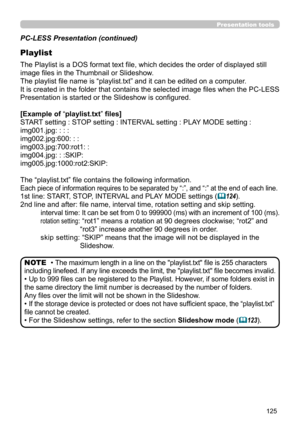

125
Presentation tools
PC-LESS Presentation (continued)
Playlist
The Playlist is a DOS format text file, which decides the order of displayed still
image files in the Thumbnail or Slideshow.
The playlist file name is “playlist.txt” and it can be edited on a computer.
It is created in the folder that contains the selected image files when the PC-LESS
Presentation is started or the Slideshow is configured.
[Example of “playlist.txt” files]
START setting : STOP setting : INTERVAL setting : PLAY MODE...

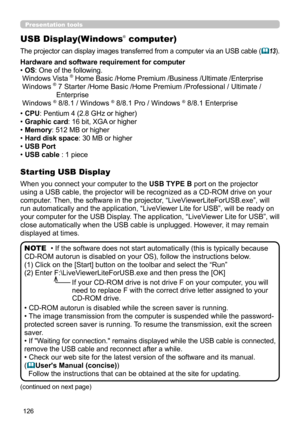

126
Presentation tools
USB Display(Windows® computer)
The projector can display images transferred from a computer via an USB cable (13).
When you connect your computer to the USB TYPE B port on the projector
using a USB cable, the projector will be recognized as a CD-ROM drive on your
computer. Then, the software in the projector, “LiveViewerLiteForUSB.exe”, will
run automatically and the application, “LiveViewer Lite for USB”, will be ready on
your computer for the USB Display. The application,...

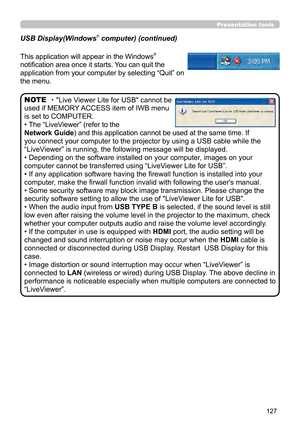

127
Presentation tools
This application will appear in the Windows®
notification area once it starts. You can quit the
application from your computer by selecting “Quit” on
the menu.
・"Live Viewer Lite for USB" cannot be
used if MEMORY ACCESS item of IWB menu
is set to COMPUTER.
• The “LiveViewer” (refer to the
Network Guide) and this application cannot be used at the same time. If
you connect your computer to the projector by using a USB cable while the
“LiveViewer” is running, the...

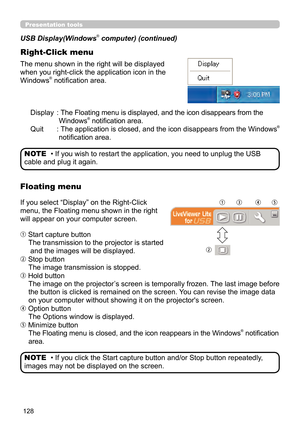

128
Presentation tools
Display :  The Floating menu is displayed, and the icon disappears from the
Windows® notification area.
Quit
 :  The application is closed, and the icon disappears from the Windows®
notification area.
The menu shown in the right will be displayed
when you right-click the application icon in the
Windows
® notification area.
USB Display(Windows
® computer) (continued)
Right-Click menu
• If you wish to restart the application, you need to unplug the USB
cable and plug it again....

129
Presentation tools
If you select the Option button on the Floating
menu, the Options window is displayed.
Optimize Performance
The “LiveViewer Lite for USB” captures
screenshots in JPEG data and sends them to
the projector. The “LiveViewer Lite for USB” has
two options that have different compression rate
of JPEG data. Transmission speedSpeed takes priority over Image quality.
It makes JPEG compression rate higher.
The screen on the projector is rewritten quicker because the transferred...

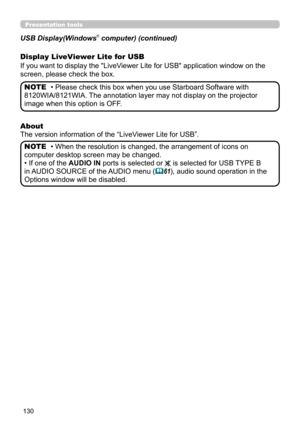

130
Presentation tools
Display LiveViewer Lite for USB
If you want to display the "LiveViewer Lite for USB" application window on the
screen, please check the box. USB Display(Windows
® computer) (continued)
• When the resolution is changed, the arrangement of icons on
computer desktop screen may be changed.
• If one of the  AUDIO IN ports is selected or
 is selected for USB TYPE B
in AUDIO SOURCE of the AUDIO menu (
61), audio sound operation in the
Options window will be disabled. NOTE
•...
