Dukane Projector 8120WIA User Manual

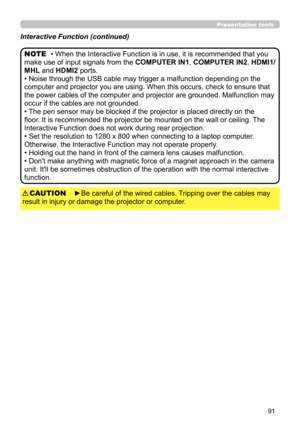

91
Presentation tools
• When the Interactive Function is in use, it is recommended that you
make use of input signals from the  COMPUTER IN1, COMPUTER IN2, HDMI1/
MHL and HDMI2 ports.
• Noise through the USB cable may trigger a malfunction depending on the
computer and projector you are using. When this occurs, check to ensure that
the power cables of the computer and projector are grounded. Malfunction may
occur if the cables are not grounded.
• The pen sensor may be blocked if the projector is...

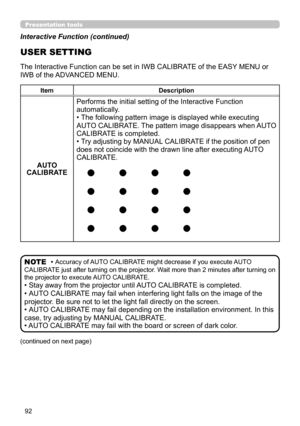

92
Presentation tools
Interactive Function (continued)
The Interactive Function can be set in IWB CALIBRATE of the EASY MENU or
IWB of the ADVANCED MENU.
USER SETTING
ItemDescription
AUTO
CALIBRATE Performs the initial setting of the Interactive Function
automatically.
• The following pattern image is displayed while executing
AUTO CALIBRATE. The pattern image disappears when AUTO
CALIBRATE is completed.
• Try adjusting by MANUAL CALIBRATE if the position of pen
does not coincide with the drawn...

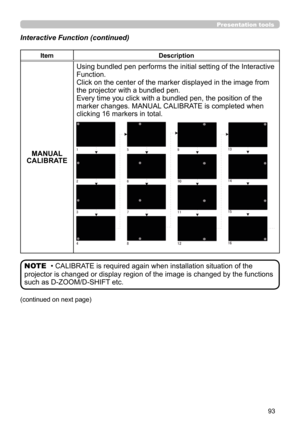

93
Presentation tools
Interactive Function (continued)
ItemDescription
MANUAL
CALIBRATE Using bundled pen performs the initial setting of the Interactive
Function.
Click on the center of the marker displayed in the image from
the projector with a bundled pen.
Every time you click with a bundled pen, the position of the
marker changes. MANUAL CALIBRATE is completed when
clicking 16 markers in total.
• CALIBRATE is required again when installation situation of the
projector is changed or display...

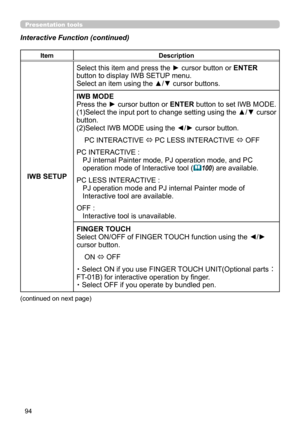

94
Presentation tools
Interactive Function (continued)
ItemDescription
IWB SETUPSelect this item and press the ► cursor button or ENTER
button to display IWB SETUP menu.
Select an item using the ▲/▼ cursor buttons.
IWB MODE
Press the ► cursor button or ENTER button to set IWB MODE.
(1)Select the input port to change setting using the ▲/▼ cursor
button.
(2)Select IWB MODE using the ◄/► cursor button.
    PC INTERACTIVE
⇔ PC LESS INTERACTIVE
⇔ OFF
PC INTERACTIVE : PJ internal Painter mode, PJ operation...

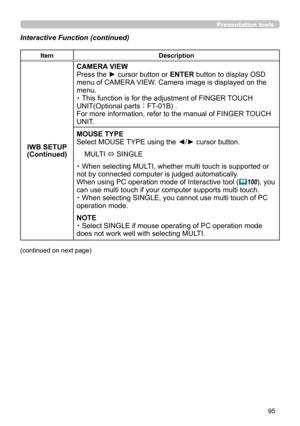

95
Presentation tools
Interactive Function (continued)
ItemDescription
IWB SETUP
(Continued) CAMERA VIEW
Press the ► cursor button or ENTER button to display OSD
menu of CAMERA VIEW. Camera image is displayed on the
menu.
・ This function is for the adjustment of FINGER TOUCH
UNIT(Optional parts ：FT-01B) .
For more information, refer to the manual of FINGER TOUCH
UNIT.
MOUSE TYPE
Select MOUSE TYPE using the ◄/► cursor button.
    MULTI  ⇔ SINGLE
・ When selecting MULTI, whether multi touch is supported...

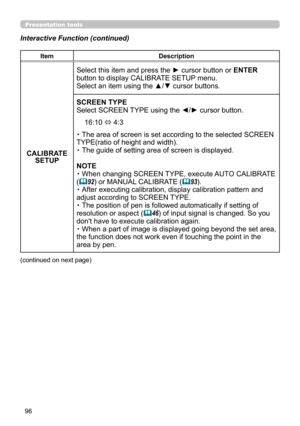

96
Presentation tools
Interactive Function (continued)
ItemDescription
CALIBRATE
SETUP Select this item and press the ► cursor button or ENTER
button to display CALIBRATE SETUP menu.
Select an item using the ▲/▼ cursor buttons.
SCREEN TYPE
Select SCREEN TYPE using the ◄/► cursor button.
    16:10
⇔ 4:3
・ The area of screen is set according to the selected
SCREEN
TYPE(ratio of height and width).
・ The guide of setting area of screen is displayed.
NOTE
・ When changing SCREEN TYPE, execute AUTO...

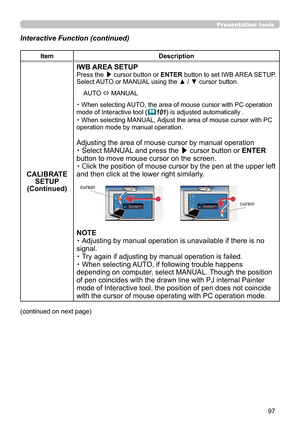

97
Presentation tools
Interactive Function (continued)
ItemDescription
CALIBRATE
SETUP
(Continued) IWB AREA SETUP
Press the
▶ cursor button or ENTER button to set IWB AREA SETUP.
Select AUTO or MANUAL using the ▲ / ▼ cursor button.
    AUTO  ⇔ MANUAL
・ When selecting AUTO, the area of mouse cursor with PC operation
mode of Interactive tool
(101) is adjusted automatically .
・ When selecting MANUAL, Adjust the area of mouse cursor with PC
operation mode by manual operation.
Adjusting the area of...

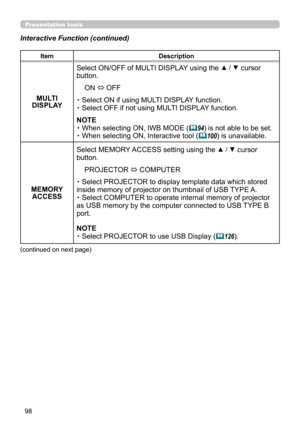

98
Presentation tools
Interactive Function (continued)
ItemDescription
MULTI
DISPLAY Select ON/OFF of MULTI DISPLAY using the
▲ / ▼ cursor
button.
    ON  ⇔ OFF
・ Select ON if using MULTI DISPLAY function.
・ Select OFF if not using MULTI DISPLAY function.
NOTE
・ When selecting ON, IWB MODE
(
94) is not able to be set.
・ When selecting ON, Interactive tool
(
100) is unavailable.
MEMORY  ACCESS Select MEMORY ACCESS setting using the
▲ / ▼ cursor
button.
    PROJECTOR  ⇔ COMPUTER
・ Select PROJECTOR...

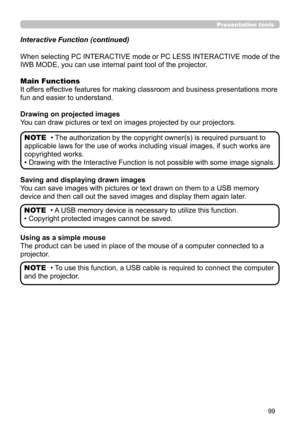

99
Presentation tools
When selecting PC INTERACTIVE mode or PC LESS INTERACTIVE mode of the
IWB MODE, you can use internal paint tool of the projector.
Main Functions
It offers effective features for making classroom and business presentations more
fun and easier to understand.
Drawing on projected images
You can draw pictures or text on images projected by our projectors.
Saving and displaying drawn images
You can save images with pictures or text drawn on them to a USB memory
device and then call out...

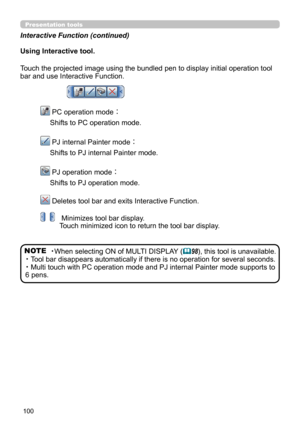

100
Presentation tools
Using Interactive tool.
Touch the projected image using the bundled pen to display initial operation tool
bar and use Interactive Function.
   PC operation mode：
Shifts to PC operation mode.
   PJ internal Painter mode：
Shifts to PJ internal Painter mode.
   PJ operation mode：
Shifts to PJ operation mode.
  Deletes tool bar and exits Interactive Function.
  Minimizes tool bar display.
Touch minimized icon to return the tool bar display.
NOTE ・When selecting ON of MULTI...
