Dukane Projector 8120WIA User Manual

11
Setting up

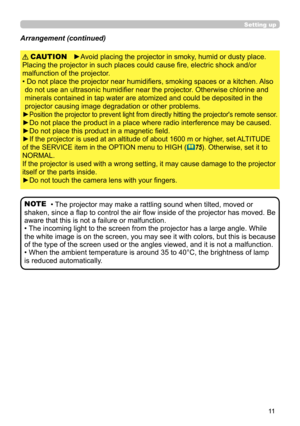

Arrangement (continued)
►Avoid placing the projector in smoky, humid or dusty place.
Placing the projector in such places could cause fire, electric shock and/or
malfunction of the projector.
•
 Do not place the projector near humidifiers, smoking spaces or a kitchen.  Also
do not use an ultrasonic humidifier near the projector. Otherwise chlorine and
minerals contained in tap water are atomized and could be deposited in the
projector causing image degradation or other problems.
►...

12
Setting up

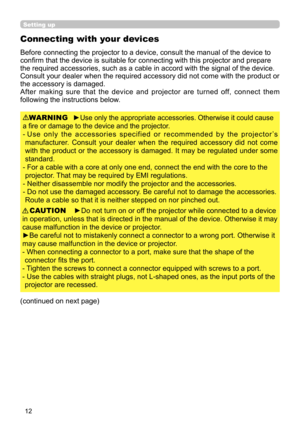

Before connecting the projector to a device, consult the manual of the device to
confirm that the device is suitable for connecting with this projector and prepare
the required accessories, such as a cable in accord with the signal of the device.
Consult your dealer when the required accessory did not come with the product or
the accessory is damaged.
After  making  sure  that  the  device  and  projector  are  turned  off,  connect  them
following the instructions below.
►Use only the...

13

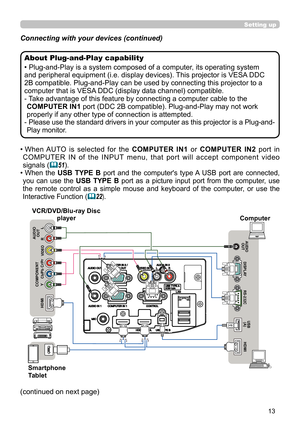

Connecting with your devices (continued)
•
 When AUTO  is  select
ed  for  the COMPUTER IN1  or  COMPUTER IN2  port  in
COMPUTER  IN  of  the  INPUT  menu,  that  port  will  accept  component  video
signals (
51).
•
 When  the  USB TYPE B  port  and  the  computer's  type A  USB  port  are  connected,
you  can  use  the  USB TYPE B  port  as  a  picture  input  port  from  the  computer,  use
the  remote  control  as  a  simple  mouse  and  keyboard  of  the  computer,  or  use  the...

14

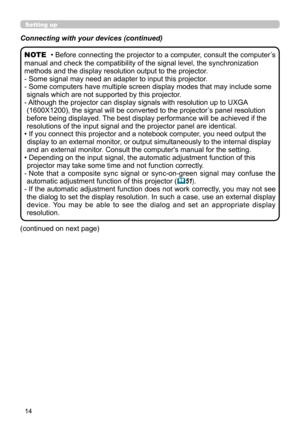

Connecting with your devices (continued)
(continued on next page)
• Before connecting the projector to a computer, consult the computer’s
manual and check the compatibility of the signal level, the synchronization
methods and the display resolution output to the projector.
-
 Some signal may need an adapter to input this projector.
-
 Some computers have multiple screen display modes that may include some
signals which are not supported by this projector.
-
 Although the projector can display...

15

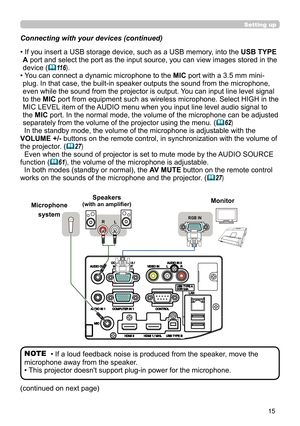

Microphone system
(continued on next page) Connecting with your devices (continued)
Setting up
•  If you insert a USB storage device, such as a USB memory, into the USB TYPE
A port and select the port as the input source, you can view images stored in the
device (
11 6 ).
•
 You can connect a dynamic microphone to the  MIC port with a 3.5 mm mini-
plug. In that case, the built-in speaker outputs the sound from the microphone,
even while the sound from the projector is output. You can input line...

16
Setting up
USB storage device
Connecting with your devices (continued)

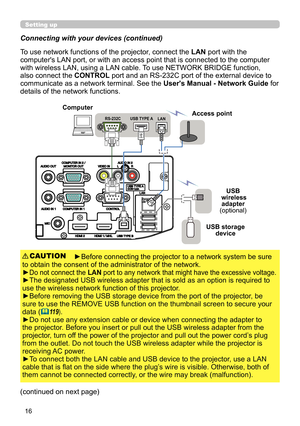

To use network functions of the projector, connect the LAN port with the
computer's LAN port, or with an access point that is connected to the computer
with wireless LAN, using a LAN cable. To use NETWORK BRIDGE function,
also connect the  CONTROL port and an RS-232C port of the external device to
communicate as a network terminal. See the  User's Manual - Network Guide for
details of the network functions.
►Before...

17

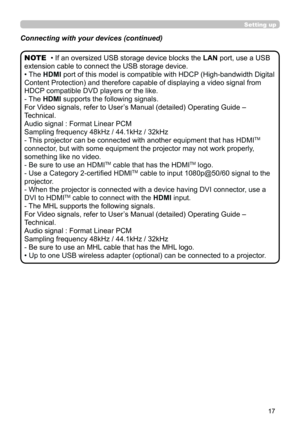

• If an oversized USB storage device blocks the LAN port, use a USB
extension cable to connect the USB storage device.
• The HDMI port of this model is compatible with HDCP (High-bandwidth Digital
Content Protection) and therefore capable of displaying a video signal from
HDCP compatible DVD players or the like.
- The HDMI supports the following signals.
For Video signals, refer to User’s Manual (detailed) Operating Guide –
Technical.
Audio signal : Format Linear PCM
Sampling frequency 48kHz /...

18
Setting up

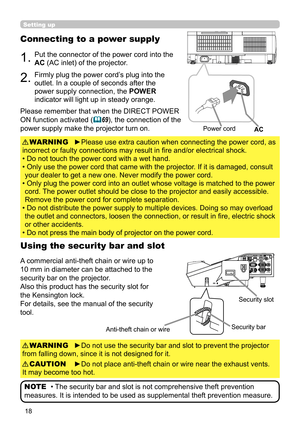

Connecting to a power supply
1.Put the connector of the power cord into the
AC (AC inlet) of the projector.
2.Firmly plug the power cord’s plug into the
outlet. In a couple of seconds after the
power supply connection, the POWER
indicator will light up in steady orange.
►Please use extra caution when connecting the power cord, as
incorrect or faulty connections may result in fire and/or electrical shock.
• Do not touch the power cord with a wet hand.
•
 Only use the power cord that...

19

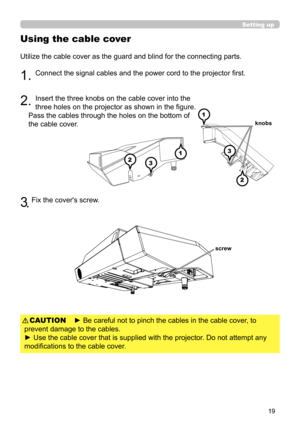

Using the cable cover
Utilize the cable cover as the guard and blind for the connecting parts.
1. Connect the signal cables and the power cord to the projector first.
2. Insert the three knobs on the cable cover into the
three holes on the projector as shown in the figure.
Pass the cables through the holes on the bottom of
the cable cover.
3 .
Fix the cover's screw.
Setting up
► Be careful not to pinch the cables in the cable cover, to
prevent damage to the cables.
► Use the cable cover that...

20
Remote control
Remote control

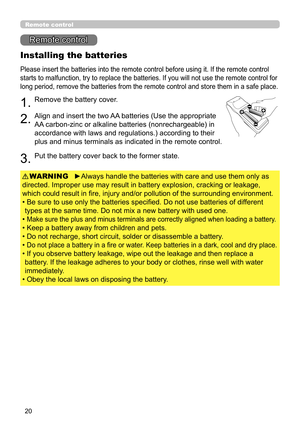

Installing the batteries
Please insert the batteries into the remote control before using it. If the remote control
starts to malfunction, try to replace the batteries. If you will not use the remote control for
long period, remove the batteries from the remote control and store them in a safe place.
1.Remove the battery cover.
2.Align and insert the two AA batteries (Use the appropriate
AA carbon-zinc or alkaline batteries (nonrechargeable) in
accordance with laws...
