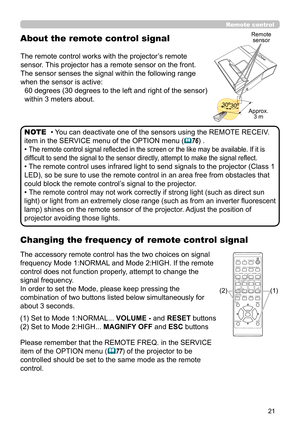

Changing the frequency of  remote control signal
The accessory remote control has the two choices on signal
frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote
control does not function properly, attempt to change the
signal frequency.
In order to set the Mode, please keep pressing the
combination of two buttons listed below simultaneously for
about 3 seconds.
(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons (2) Set to Mode 2:HIGH...  MAGNIFY OFF and ESC buttons
Please remember that the...

22
Remote control

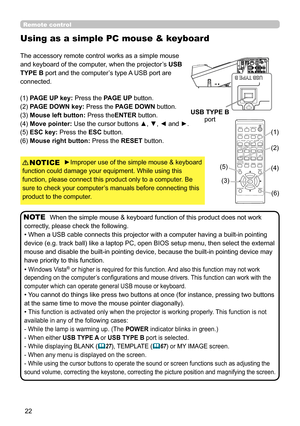

Using as a simple PC mouse & keyboard
The accessory remote control works as a simple mouse
and keyboard of the computer, when the projector’s USB
TYPE B port and the computer’s type A USB port are
connected.
(1) PAGE UP key: Press the PAGE UP button.
(2) PAGE DOWN key: Press the PAGE DOWN button.
(3) Mouse left button:  Press theENTER button.
(4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►.
(5) ESC key: Press the ESC button.
(6) Mouse right button:  Press the RESET button....

23

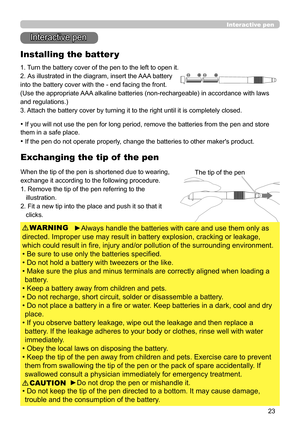

The tip of the pen
Interactive pen
Installing the batter y
Interactive pen
1. Turn the battery cover of the pen to the left to open it.
2.
 As illustrated in the diagram, insert the AAA battery
into the battery cover with the - end facing the front.
(Use the appropriate AAA alkaline batteries (non-rechargeable) in accordance with laws
and regulations.)
3. Attach the battery cover by turning it to the right until it is completely closed.
Exchanging the tip of  the pen
When the tip of the pen is...

24
Power on/off
1.Make sure that the power cord is firmly
and correctly connected to the projector
and the outlet.

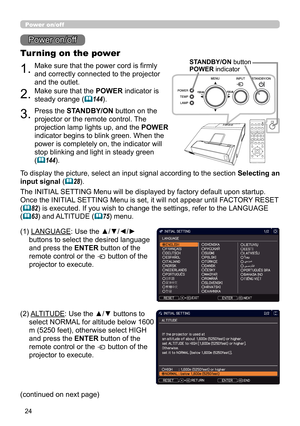

Turning on the power
2.Make sure that the POWER indicator is
steady orange (
144).
3.Press the STANDBY/ON button on the
projector or the remote control. The
projection lamp lights up, and the POWER
indicator begins to blink green. When the
power is completely on, the indicator will
stop blinking and light in steady green
(
144).
Power on/off
CALIBRATION
KEYSTONE/...

25

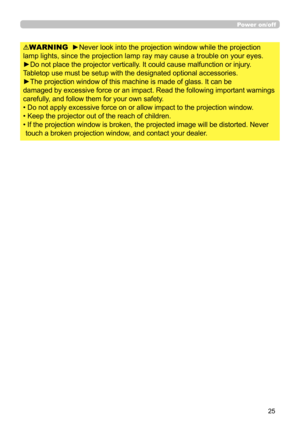

WARNING  ►Never look into the projection window while the projection
lamp lights, since the projection lamp ray may cause a trouble on your eyes.
►Do not place the projector vertically. It could cause malfunction or injury.
Tabletop use must be setup with the designated optional accessories.
►The projection window of this machine is made of glass. It can be
damaged by excessive force or an impact. Read the following important warnings
carefully, and follow them for your own safety.
• Do not apply...

26
Power on/off
►Do not touch around the lamp cover and the exhaust vents
during use or just after use, since it is too hot.
►Remove the power cord for complete separation. The power outlet should be
close to the projector and easily accessible. WARNING
1.Press the STANDBY/ON button on the projector or the remote control.
The message “Power off?” will appear on the screen for about 5 seconds.

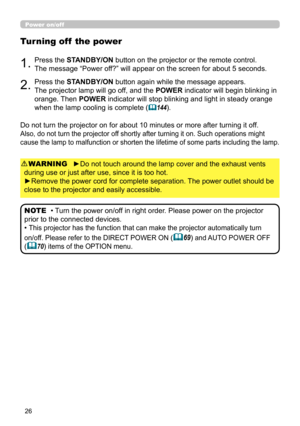

Turning off  the power
2.Press the STANDBY/ON button again while the message appears.
The projector lamp...

27
CALIBRATION
KEYSTONE/
ASPECTACCENTUALIZERHDCR
AV MUTE
POSITIONESC
MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP1
2
ENTER
FOCUS- +D-ZOOM-
+
＋
ー
VOLUMEMAGNIFYMYBUTTON
INPUT
PERFECT FITTEMPLATE
Operating
Operating
1.

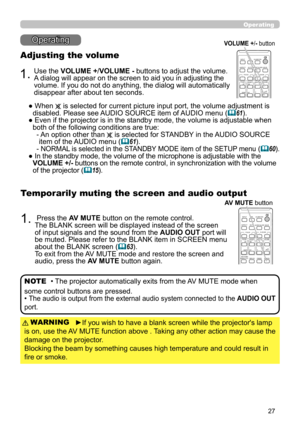

Adjusting the volume
Use the VOLUME +/VOLUME - buttons to adjust the volume.
A dialog will appear on the screen to aid you in adjusting the
volume. If you do not do anything, the dialog will automatically
disappear after about ten seconds.
●
 When  is selected for current picture input...

28
Operating

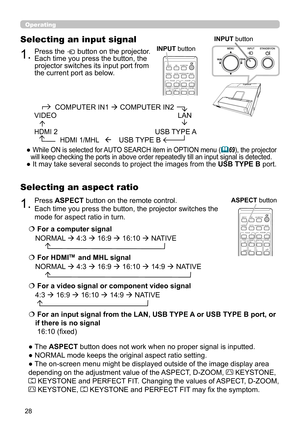

1.Press ASPECT button on the remote control.
Each time you press the button, the projector switches the
mode for aspect ratio in turn.
Selecting an aspect ratio
● The ASPECT button does not work when no proper signal is inputted.
● NORMAL mode keeps the original aspect ratio setting.
● The on-screen menu might be displayed outside of the image display area
depending on the adjustment value of the ASPECT, D-ZOOM,
 KEYSTONE,
 KEYSTONE and PERFECT FIT. Changing the values of ASPECT,...

29
Operating

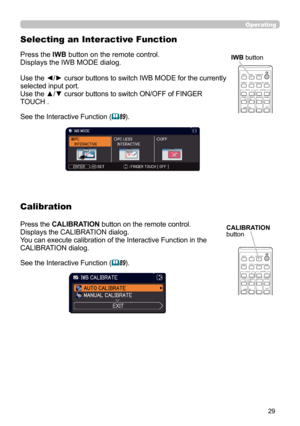

Selecting an Interactive Function
CALIBRATION
button
CALIBRATION
KEYSTONE/
ASPECTACCENTUALIZERHDCR
AV MUTE
POSITIONESC
MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP1
2
ENTER
FOCUS- +D-ZOOM-
+
＋
ー
VOLUMEMAGNIFYMYBUTTON
INPUT
PERFECT FITTEMPLATE
Press the IWB button on the remote control.
Displays the IWB MODE dialog.
Use the ◄/► cursor buttons to switch IWB MODE for the currently
selected input port.
Use the ▲/▼ cursor buttons to switch ON/OFF of FINGER
TOUCH .
See the Interactive...

30
Operating
Adjusting the zoom and focus
Adjusting the projector's elevator

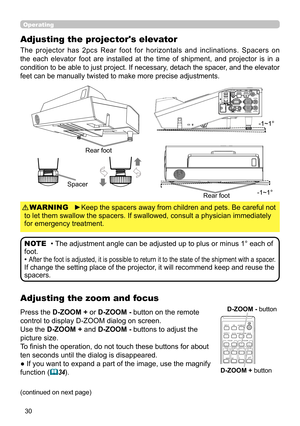

The  projector  has  2pcs  Rear  foot  for  horizontals  and  inclinations.  Spacers  on
the  each  elevator  foot  are  installed  at  the  time  of  shipment,  and  projector  is  in  a
condition to be able to just project. If necessary, detach the spacer, and the elevator
feet can be manually twisted to make more precise adjustments.
Spacer
Press the D-ZOOM +
 or D-ZOOM - button on the remote
control to display D-ZOOM...
