INPUT menu
ItemDescription

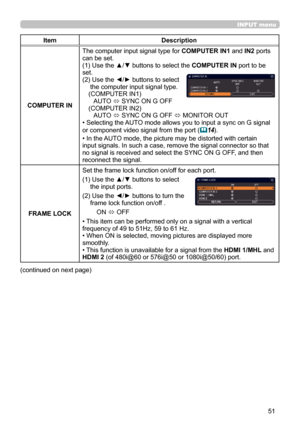

COMPUTER IN The computer input signal type for
COMPUTER IN1 and IN2 ports
can be set.
(1) Use the ▲/▼ buttons to select the  COMPUTER IN port to be
set.
(2)
 Use the ◄/► buttons to select
the computer input signal type.
(COMPUTER IN1)
   AUTO  ó SYNC ON G OFF
(COMPUTER IN2)
   AUTO  ó SYNC ON G OFF
ó MONITOR OUT
• Selecting the AUT

O mode allows you to input a sync on G signal
or component video signal from the port (
14).
• In the AUTO mode, the picture may be...

52
INPUT menu
ItemDescription

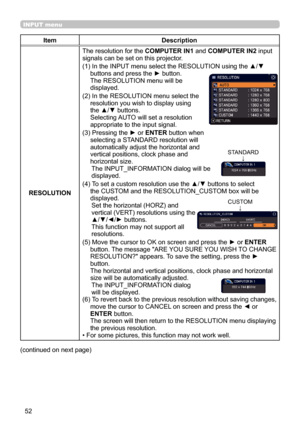

RESOLUTION The resolution for the
COMPUTER IN1 and COMPUTER IN2 input
signals can be set on this projector.
(1)
 In the INPUT menu select the RESOLUTION using the ▲/▼
buttons and press the ► button.
The RESOLUTION menu will be
displayed.
(2)
 In the RESOLUTION menu select the
resolution you wish to display using
the ▲/▼ buttons.
Selecting AUTO will set a resolution
appropriate to the input signal.
(3)
 Pressing the ► or ENTER button when
selecting a STANDARD...

53
INPUT menu
ItemDescription

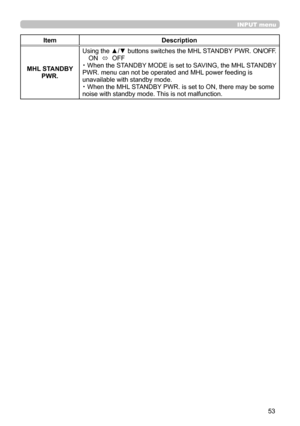

MHL STANDBY  PWR. Using the ▲/▼ buttons switches the MHL STANDBY PWR. ON/OFF.
ON   ó  OFF
・ When the STANDBY MODE is set to SAVING, the MHL STANDBY
PWR. menu can not be operated and MHL power feeding is
unavailable with standby mode.
・ When the MHL STANDBY PWR. is set to ON, there may be some
noise with standby mode. This is not malfunction.

54
SETUP menu
SETUP menu

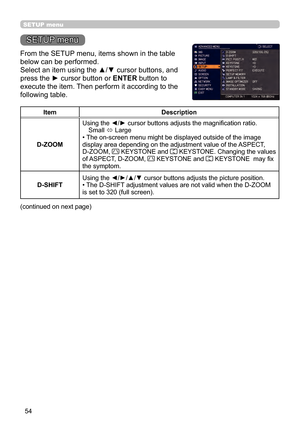

From the SETUP menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.
ItemDescription
D-ZOOM Using the ◄/► cursor buttons adjusts the magnification ratio.
Small  ó Large
• The on-screen menu might be displayed outside of the image
display area depending on the adjustment value of the ASPECT,
D-ZOOM,
 KEYSTONE and...

55
SETUP menu
ItemDescription

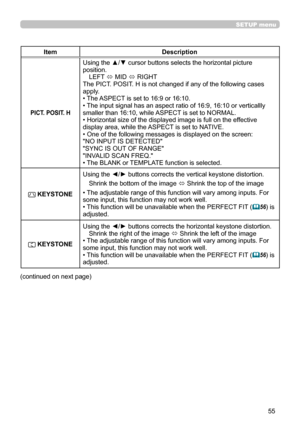

PICT. POSIT. H
Using the ▲/▼ cursor buttons selects the horizontal picture
position.
LEFT  ó MID
ó RIGHT
The PICT. POSIT. H is not changed if any of the following cases
apply.
• The ASPECT is set to 16:9 or 16:10.
• The input signal has an aspect ratio of 16:9, 16:10 or verticallly
smaller than 16:10, while ASPECT is set to NORMAL.
• Horizontal size of the displayed image is full on the effective
display area, while the ASPECT is set to NATIVE.
• One of the following...

56
SETUP menu
ItemDescription

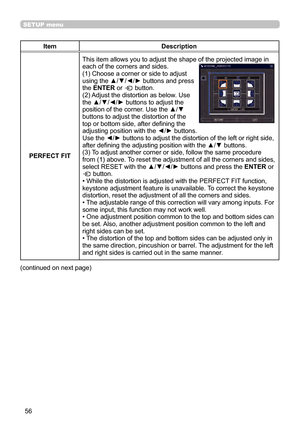

PERFECT FIT This item allows you to adjust the shape of the projected image in
each of the corners and sides.
(1) Choose a corner or side to adjust
using the ▲/▼/◄/► buttons and press
the ENTER or
 button.
(2) Adjust the distortion as below. Use
the ▲/▼/◄/► buttons to adjust the
position of the corner. Use the ▲/▼
buttons to adjust the distortion of the
top or bottom side, after defining the
adjusting position with the ◄/► buttons.
Use the ◄/► buttons to adjust the...

57
SETUP menu
(continued on next page)
ItemDescription

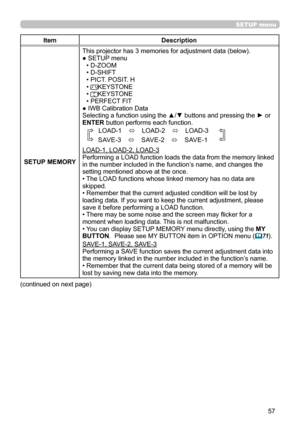

SETUP MEMORY
This projector has 3 memories for adjustment data (below).
● SETUP menu • D-ZOOM
• D-SHIFT
• PICT. POSIT. H
•
KEYSTONE
• KEYSTONE
• PERFECT FIT
● IWB Calibration Data
Selecting a function using the ▲/▼ buttons and pressing the ► or
ENTER button performs each function.
  LOAD-1  ó LOAD-2
 ó LOAD-3
  SAVE-3  ó SAVE-2
 ó SAVE-1
LOAD-1, LOAD-2, LOAD-3
Performing a LOAD function loads the data from the memory linked
in the number...

58
SETUP menu
(continued on next page)
ItemDescription

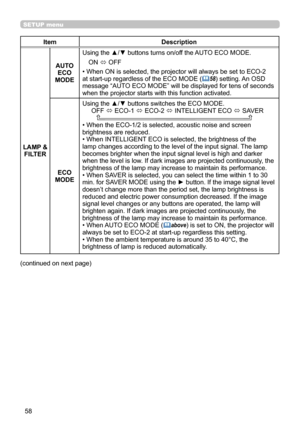

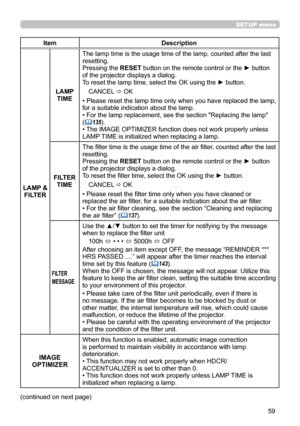

LAMP &  FILTER AUTO
ECO
MODE Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.
ON  ó OFF
• When ON is selected, the projector will always be set to ECO-2
at start-up regardless of the ECO MODE (
 58) setting. An OSD
message “AUTO ECO MODE” will be displayed for tens of seconds
when the projector starts with this function activated.
ECO
MODE Using the ▲/▼ buttons switches the ECO MODE.
     OFF
ó ECO-1
ó ECO-2
ó INTELLIGENT ECO
ó SAVER...

59
SETUP menu
ItemDescription
LAMP &  FILTER LAMP
TIME The lamp time is the usage time of the lamp, counted after the last
resetting.
Pressing the RESET button on the remote control or the ► button
of the projector displays a dialog.
To reset the lamp time, select the OK using the ► button.
CANCEL
ð OK
• Please reset the lamp time only when you have replaced the lamp,
for a suitable indication about the lamp.
• For the lamp replacement, see the section "Replacing the lamp"
(
 135).
• The...

60
SETUP menu
ItemDescription

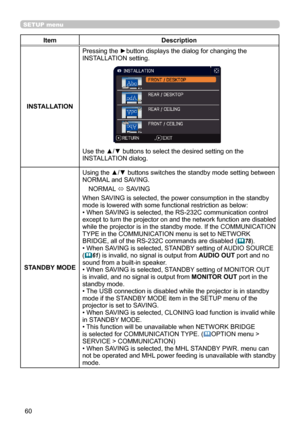

INSTALLATION Pressing the ►button displays the dialog for changing the
INSTALLATION setting.
Use the ▲/▼ buttons to select the desired setting on the
INSTALLATION dialog.
STANDBY MODE Using the ▲/▼ buttons switches the standby mode setting between
NORMAL and SAVING.
NORMAL  ó SAVING
When SAVING is selected, the power consumption in the standby
mode is lowered with some functional restriction as below:
• When SAVING is selected, the RS-232C communication control
except...
