Dukane Projector 8121WIA User Manual

Here you can view all the pages of manual Dukane Projector 8121WIA User Manual. The Dukane manuals for Projector are available online for free. You can easily download all the documents as PDF.

Page 1

1
Projector
8120WIA/8121WIA
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.►Before using this product, please read all manuals for this
product. Be sure to read “Safety Guide” first. After reading them, store them in a
safe place for future reference. WARNING
• The information in this manual is subject to change without notice.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.
• The manufacturer...

Page 2

2
Contents
Introduction  . . . . . . . . . . . . . . .3
Features
 ......................3
Checking the contents of package ...3
Part names
 ....................4
Setting up
  . . . . . .

 . . . . . . . . . .
 .9
Arrangement
 ...................9
Connecting with your devices .....12
Connecting to a power supply .....18
Using the security bar and slot
 ....18
Using the cable cover
 ...........19
Remote control
  . . . . . . .

 . . . .
 .20
Interactive pen
  . . . . . .

 . . . . .
 .23
Power on/off
  . ....

Page 3

3
Introduction
• Keep the original packing materials, for future reshipment. Be sure
to use the original packing materials when moving the projector. Use special
caution for the lens. NOTE
Introduction
The projector provides you with the broad use by the following features.
Checking the contents of  package
ü    The unique optics system produces a large projected image in a short
distance, which provides you with various ways of use.
ü
 This projector has a variety of I/O ports that supposedly...

Page 4

4
Introduction
(1)  Lamp cover (135)
The lamp unit is inside.
(2) Control panel (
5)
(3) Elevator feet (x 2) (
30)
(4) Remote sensor (x 2)(
21)
(5) Projection window (
139)
(6) Intake vents
(7)
 Filter cover (137)
The air filter and intake vent
are inside.
(8) Speaker (
15, 27, 61)
(9) Exhaust vent
(10)
 AC (AC inlet) (18)
(11 ) Ports (
6)
(12) Security bar (
18)
(13) Security slot (
18)
(14) Spacer (x 2) (
30)
(15) Battery cover (
140)
(16) Camera lens (
139)
►HOT! : Do not touch...

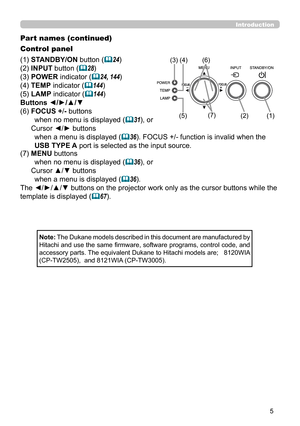

Page 5

5
Introduction
Part names (continued)
Control panel
(1) STANDBY/ON button (
24)
(2) INPUT button (
28)
(3) POWER indicator (
24, 144)
(4) TEMP indicator (
144)
(5) LAMP indicator (
144)
Buttons ◄/►/▲/▼
(6)
 FOCUS +/- buttons when no menu is displayed (
31), or
Cursor ◄/► buttons  when a menu is displayed (
36). FOCUS +/- function is invalid when the
USB TYPE A port is selected as the input source.
(7)
 MENU buttons
when no menu is displayed (
36), or
Cursor ▲/▼ buttons  when a menu is...

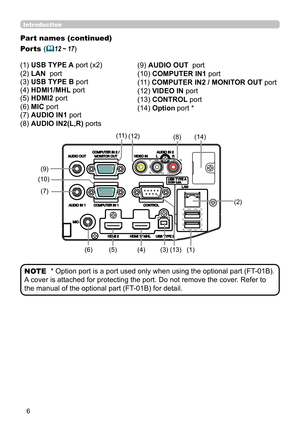

Page 6

6
Introduction
Part names (continued)
Ports (
12 ~ 17)
(1) USB TYPE A  port
(x2)
(2) LAN  port
(3) USB TYPE B port
(4)
 HDMI1/MHL port
(5) HDMI2 port
(6) MIC port
(7)

AUDIO IN1 port
(8) AUDIO IN2(L,R) ports  (9) AUDIO OUT  port
(10)
 COMPUTER IN1 port
(11) COMPUTER IN2 / MONITOR OUT port
(12) VIDEO IN

 port
(13) CONTROL port
(14) Option  port *
(1)
(12)
(8)
(6) (11)
(10)
(2)
(3)
(4)
(7)
(9)
(13) (14)
* Option port is a port used only when using the optional part (FT
-01B).
A cover is...

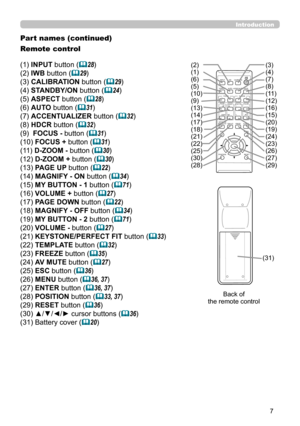

Page 7

7
Introduction
Part names (continued)
Remote control
(1) INPUT button (
28)
(2) IWB button (
29)
(3) CALIBRATION button (
29)
(4) STANDBY/ON button (
24)
(5) ASPECT button (
28)
(6) AUTO button (
31)
(7) ACCENTUALIZER button (
32)
(8) HDCR  button (
32)
(9)  FOCUS - button (
31)
(10) FOCUS + button (
31)
(11) D-ZOOM - button (
30)
(12) D-ZOOM + button (
30)
(13) PAGE UP button (
22)
(14) MAGNIFY - ON button (
34)
(15) MY BUTTON - 1 button (
71)
(16) VOLUME + button (
27)
(17) PAGE...

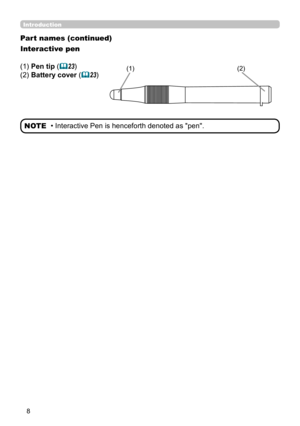

Page 8

8
Introduction
Part names (continued)
Interactive pen
(1) Pen tip (
23)
(2) Battery cover  (
23)(1)(2)
• Interactive Pen is henceforth denoted as "pen".
NOTE

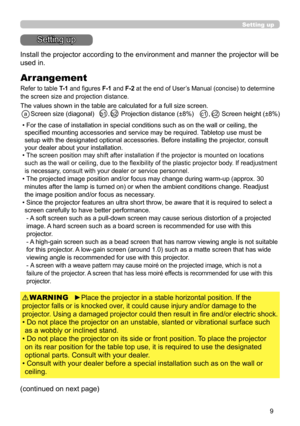

Page 9

9
Setting up
Setting up
(continued on next page) Install the projector according to the environment and manner the projector will be
used in.
Arrangement
Refer to table T- 1 and figures F-1 and F-2 at the end of User’s Manual (concise) to determine
the screen size and projection distance.
The values shown in the table are calculated for a full size screen.

a  Screen size (diagonal)   b1 , b2  Projection distance (±8%)   c1 , c2  Screen height (±8%)
•  For the case of installation in special...

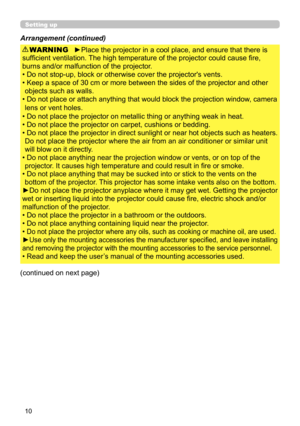

Page 10

10
Setting up
Arrangement (continued)
(continued on next page)
►Place the projector in a cool place, and ensure that there is
sufficient ventilation. The high temperature of the projector could cause fire,
burns and/or malfunction of the projector.
•
 Do not stop-up, block or otherwise cover the projector's vents.
•
 Keep a space of 30 cm or more between the sides of the projector and other
objects such as walls.
•
 Do not place or attach anything that would block the projection window , camera...
