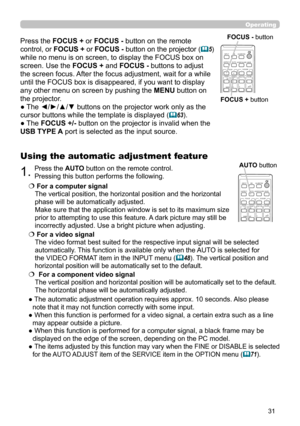

Page 31
31 CALIBRATION KEYSTONE/ ASPECTACCENTUALIZERHDCR AV MUTE POSITIONESC MENU RESET IWB AUTO PAGE DOWN ON OFF FREEZE UP1 2 ENTER FOCUS- +D-ZOOM- + ＋ ー VOLUMEMAGNIFYMYBUTTON INPUT PERFECT FITTEMPLATE Operating 1.Press the AUTO button on the remote control. Pressing this button performs the following. Using the automatic adjustment feature For a computer signal The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window...

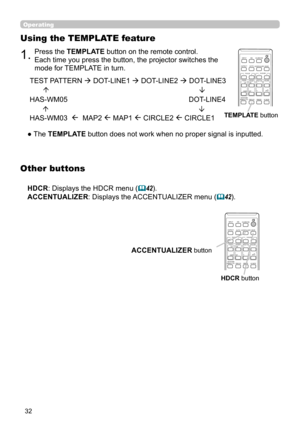

Page 32
32 Operating 1.Press the TEMPLATE button on the remote control. Each time you press the button, the projector switches the mode for TEMPLATE in turn. Using the TEMPLATE feature ● The TEMPLATE button does not work when no proper signal is inputted.TEST PATTERN DOT-LINE1 DOT-LINE2 DOT-LINE3 HAS-WM05 DOT -LINE4 HAS-WM03 MAP2 MAP1 CIRCLE2 CIRCLE1 TEMPLATE button CALIBRATION KEYSTONE/ ASPECTACCENTUALIZERHDCR AV MUTE...

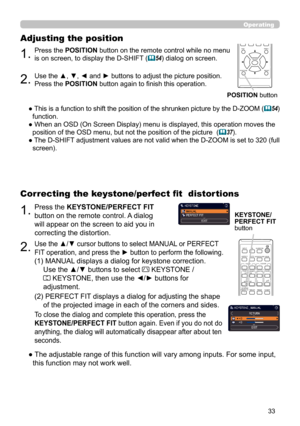

Page 33
33 CALIBRATION KEYSTONE/ ASPECTACCENTUALIZERHDCR AV MUTE POSITIONESC MENU RESET IWB AUTO PAGE DOWN ON OFF FREEZE UP 1 2 ENTER FOCUS-+D-ZOOM- + ＋ ー VOLUMEMAGNIFYMYBUTTON INPUT PERFECT FITTEMPLATE 1.Press the POSITION button on the remote control while no menu is on screen, to display the D-SHIFT (54) dialog on screen. Adjusting the position 2.Use the ▲, ▼, ◄ and ► buttons to adjust the picture position. Press the POSITION button again to finish this operation. ● This is a function to shift the...

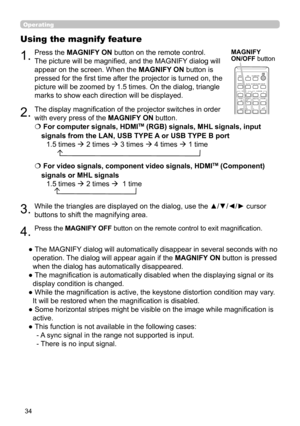

Page 34
34 CALIBRATION KEYSTONE/ ASPECTACCENTUALIZERHDCR AV MUTE POSITIONESC MENU RESET IWB AUTO PAGE DOWN ON OFF FREEZE UP1 2 ENTER FOCUS- +D-ZOOM- + ＋ ー VOLUMEMAGNIFYMYBUTTON INPUT PERFECT FITTEMPLATE Operating 1. Using the magnify feature 2. 3. 4. Press the MAGNIFY ON button on the remote control. The picture will be magnified, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the first time after the projector is turned on, the picture will be zoomed by 1.5...

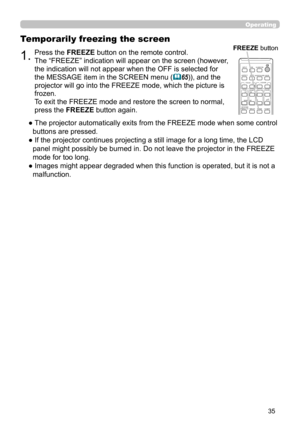

Page 35
35 Operating 1.Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for the MESSAGE item in the SCREEN menu ( 65)), and the projector will go into the FREEZE mode, which the picture is frozen. To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again. Temporarily freezing the screen ● The projector automatically exits from the FREEZE mode when some control...

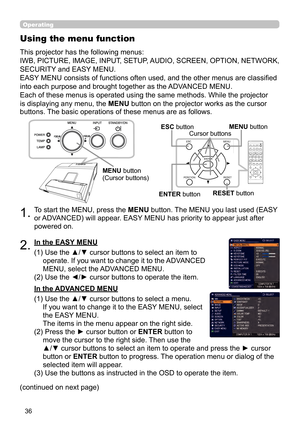

Page 36
36 CALIBRATION KEYSTONE/ ASPECTACCENTUALIZERHDCR AV MUTE POSITIONESC MENU RESET IWBAUTOPAGEDOWNONOFFFREEZE UP1 2 ENTER FOCUS- +D-ZOOM- +＋ーVOLUMEMAGNIFYMYBUTTON INPUT PERFECT FITTEMPLATE CALIBRATION KEYSTONE/ ASPECTACCENTUALIZERHDCR AV MUTE POSITIONESC MENU RESET IWB AUTO PAGE DOWN ON OFF FREEZE UP 1 2 ENTER FOCUS-+D-ZOOM- + ＋ ー VOLUMEMAGNIFYMYBUTTON INPUT PERFECT FITTEMPLATE Operating 1.To start the MENU, press the MENU button. The MENU you last used (EASY or ADVANCED) will appear. EASY MENU has...

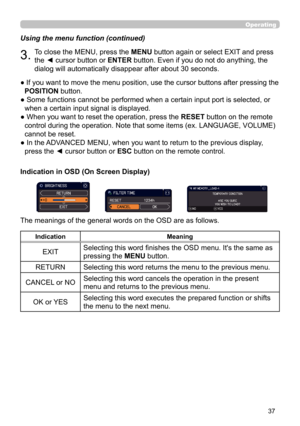

Page 37
37 Operating Using the menu function (continued) 3.To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds. ● If you want to move the menu position, use the cursor buttons after pressing the POSITION button. ● Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed. ● When you want to...

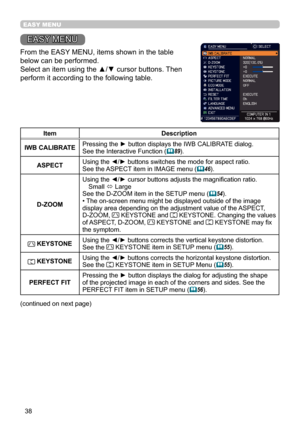

Page 38
38 EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. ItemDescription IWB CALIBRATE Pressing the ► button displays the IWB CALIBRATE dialog. See the Interactive Function ( 89). ASPECT Using the ◄/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu ( 46). D-ZOOM Using the ◄/► cursor buttons adjusts the magnification ratio. Small ó Large See...

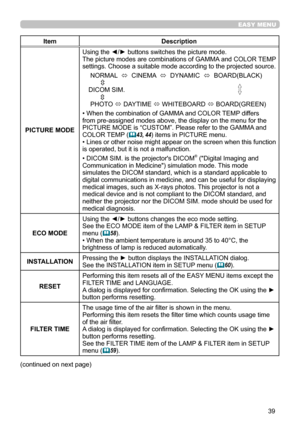

Page 39
39 EASY MENU ItemDescription PICTURE MODE Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source. NORMAL ó CINEMA ó DYNAMIC ó BOARD(BLACK) DICOM SIM. PHOTO ó DAYTIME ó WHITEBOARD ó BOARD(GREEN) • When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and...

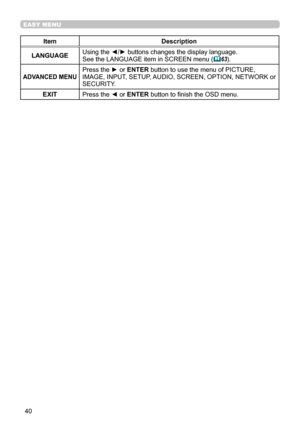

Page 40
40 EASY MENU ItemDescription LANGUAGE Using the ◄/► buttons changes the display language. See the LANGUAGE item in SCREEN menu ( 63). ADVANCED MENUPress the ► or ENTER button to use the menu of PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY. EXIT Press the ◄ or ENTER button to finish the OSD menu.
