Dukane Projector 8121WIA User Manual

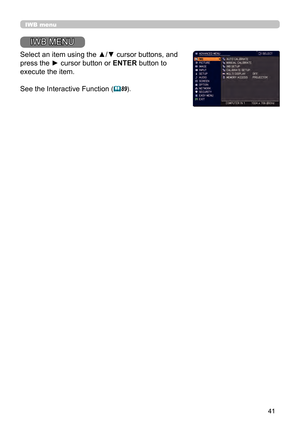

41
IWB MENU
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item.
See the Interactive Function
(89).
IWB menu

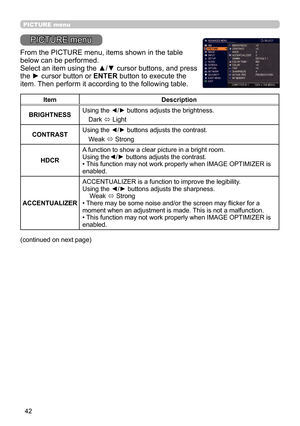

42
PICTURE menu
PICTURE menu
From the PICTURE menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and press
the ► cursor button or ENTER button to execute the
item. Then perform it according to the following table.
ItemDescription
BRIGHTNESS Using the
◄/► buttons adjusts the brightness.
Dark  ó Light
CONTRAST Using the
◄/► buttons adjusts the contrast.
Weak  ó Strong
HDCR A function to show a clear picture in a bright room.
Using the
◄/► buttons...

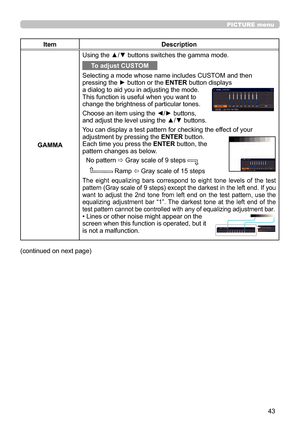

43
PICTURE menu
ItemDescription
GAMMA Using the ▲/▼ buttons switches the gamma mode.
To adjust CUSTOM
Selecting a mode whose name includes CUSTOM and then
pressing the ► button or the ENTER button displays
a dialog to aid you in adjusting the mode.
This function is useful when you want to
change the brightness of particular tones.
Choose an item using the ◄/► buttons,
and adjust the level using the ▲/▼ buttons.
You can display a test pattern for checking the effect of your
adjustment by pressing...

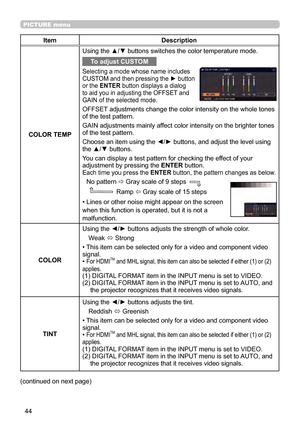

44
PICTURE menu
(continued on next page)
ItemDescription
COLOR TEMP Using the ▲/▼ buttons switches the color temperature mode.
To adjust CUSTOM
Selecting a mode whose name includes
CUSTOM and then pressing the ► button
or the ENTER button displays a dialog
to aid you in adjusting the OFFSET and
GAIN of the selected mode.
OFFSET adjustments change the color intensity on the whole tones
of the test pattern.
GAIN adjustments mainly affect color intensity on the brighter tones
of the test pattern....

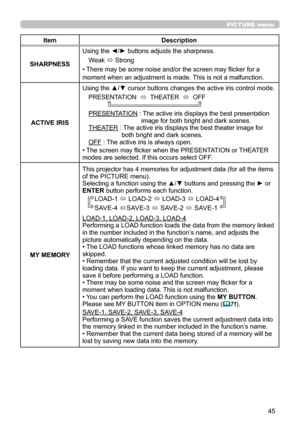

45
PICTURE menu
ItemDescription
SHARPNESS Using the ◄/► buttons adjusts the sharpness.
Weak  ó Strong
• There may be some noise and/or the screen may flicker for a
moment when an adjustment is made. This is not a malfunction.
ACTIVE IRIS
Using the ▲/▼ cursor buttons changes the active iris control mode.
PRESENTATION   ó  THEATER
ó  OFF
PRESENTATION :  The active iris displays the best presentation
image for both bright and dark scenes.
THEATER :
 The active iris displays the best...

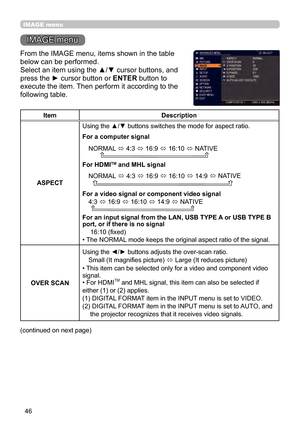

46
IMAGE menu
IMAGE menu
From the IMAGE menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.
ItemDescription
ASPECT Using the ▲/▼ buttons switches the mode for aspect ratio.
For a computer signal
NORMAL  ó 4:3
ó 16:9
ó 16:10
ó NATIVE

For HDMITM and MHL  signal
NORMAL
ó
4:3
ó
16:9
ó
16:10
ó
14:9
ó  NATIVE...

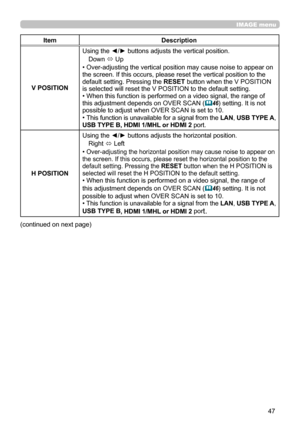

47
IMAGE menu
ItemDescription
V POSITION Using the ◄/► buttons adjusts the vertical position.
Down  ó Up
• Over-adjusting the vertical position may cause noise to appear on
the screen. If this occurs, please reset the vertical position to the
default setting. Pressing the  RESET button when the V POSITION
is selected will reset the V POSITION to the default setting.
• When this function is performed on a video signal, the range of
this adjustment depends on OVER SCAN (
 46) setting. It is not...

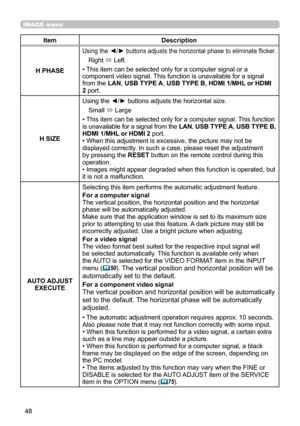

48
IMAGE menu
ItemDescription
H PHASE
Using the ◄/► buttons adjusts the horizontal phase to eliminate flicker.
Right  ó Left
• This item can be selected only for a computer signal or a
component video signal. This function is unavailable for a signal
from the LAN, USB TYPE A , USB TYPE B, HDMI 1/MHL or HDMI
2  port.
H SIZE Using the ◄/► buttons adjusts the horizontal size.
Small  ó Large
• This item can be selected only for a computer signal. This function
is unavailable for a signal from the  LAN,...

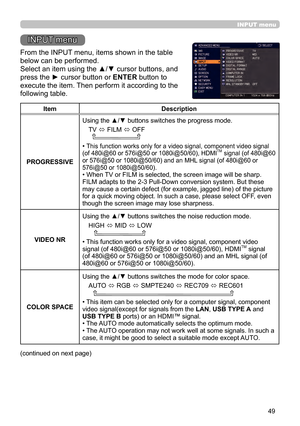

49
INPUT menu
INPUT menu
From the INPUT menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.
ItemDescription
PROGRESSIVE Using the ▲/▼ buttons switches the progress mode.
TV  ó FILM
ó OFF

• This function works only for a video signal, component video signal
(of 480i@60 or 576i@50 or 1080i@50/60), HDMITM signal (of 480i@60
or 576i@50...

50
INPUT menu
ItemDescription
VIDEO FORMAT The video format for VIDEO IN port can be set.
 Using the ◄/► buttons
switches the mode for video
format.
AUTO   ó  NTSC
ó  PAL
ó  SECAM
      N-PAL  ó M-PAL
ó NTSC4.43
• This item is performed only for a video signal from the  VIDEO IN
port.
• The AUTO mode automatically selects the optimum mode.
• The AUTO operation may not work well for some signals. If the
picture becomes unstable (e.g. an irregular picture, lack of color),
please select the mode...
