Dukane Projector 9010 User Manual

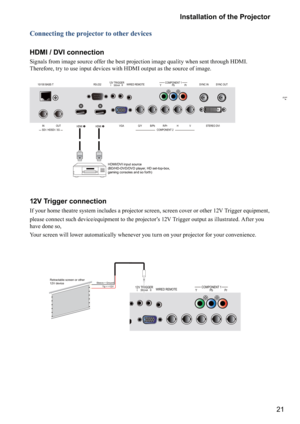

21
Installation of the Projector
Connecting the projector to other devices
HDMI / DVI connection
Signals from image source offer the best projection image quality when sent through HDMI.
Therefore, try to use input devices with HDMI output as the source of image.

COMPONENT 2SDI / HDSDI / 3G
COMPONENT 1
YPbPr
10/100 BASE-T RS-232 WIRED REMOTE 12V TRIGGERIII
350mASYNC IN SYNC OUT
IN OUT G/Y B/Pb R/Pr H V VGA
HDMI
HDMI  STEREO DVI
HDMI/DVI input source
(BD/HD-DVD/DVD player, HD set-top-box,
gaming...

22Installation of the Projector
RGB connection
Connect your PC or other devices with RGB output to the RGB input connectors on the projector to be
used as the source of image input.
COMPONENT 2SDI / HDSDI / 3G
COMPONENT 1
YPbPr
0/100 BASE-T RS-232 WIRED REMOTE 12V TRIGGERIII
350mA
IN OUT G/Y B/Pb R/Pr H V
VGA
HDMI
HDMI

Desk Top or Notebook
COMPONENT 2SDI / 3G
COMPONENT 1
YPbPr-T RS-232WIRED REMOTE
12V TRIGGERIII
350mASYNC IN SYNC OUT
OUT G/Y B/Pb R/Pr H V VGA
HDMI
HDMI  STEREO DVI
G/Y B/Pb...

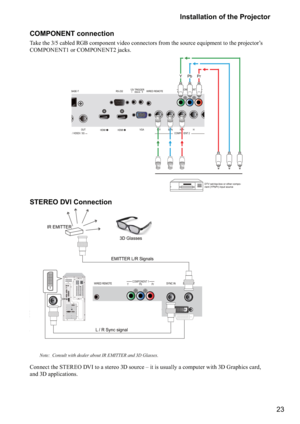

23
Installation of the Projector
COMPONENT connection
J



24Installation of the Projector

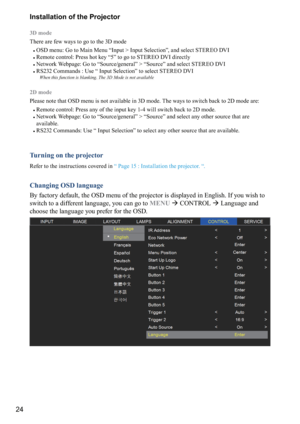

3D mode
There are few ways to go to the 3D mode
#
OSD menu: Go to Main Me

nu “Input > Input Selection”, and select STEREO DVI
#
 Remote control: Press hot key “5” to go to STEREO DVI directly
#
 Network Webpage: Go to “Source/general” > “Source” and select STEREO DVI
#
 RS232 Commands : Use “ Input Selection” to select STEREO DVI
When this function is blanking. The 3D Mode is not available
2D mode
Please note that OSD menu is not available in 3D mode. The ways to switch...

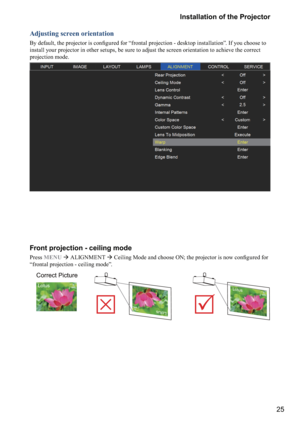

25
Installation of the Projector
Adjusting screen orientation

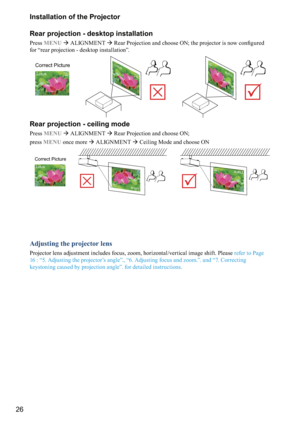

26Installation of the Projector
Rear projection - desktop installation
Press
MENU   ALIGNMENT

27

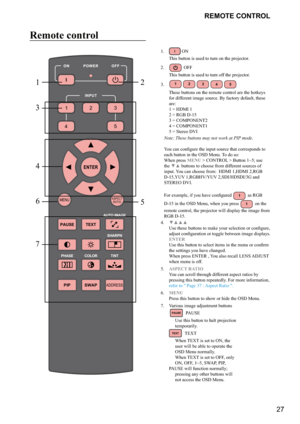

REMOTE CONTROL
Remote control

2
32
4 1
5
INPUT
ASPECT
RATIO
AUTO IMAGE
PAUSE TEXT
MENU
SHARPN
PHASE COLOR TINT
ADDRESS
SWAP
PIP
1
3
4
6
7 2
5
1.  ON
This button is used to turn on the projector.
2.
 OFF
This button is used to turn off the projector.
3.
12345
These buttons on the remote control are the hotkeys
for different image source. By factory default, these
are:
1 = HDMI 1
2 = RGB D-15
3 = COMPONENT2
4 = COMPONENT1
5 = Stereo DVI
Note: These buttons may not work at PIP...

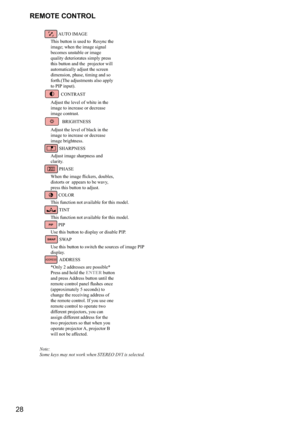

28REMOTE CONTROL
 AUTO  IMAGE
  This button is used to  Resync the
  image; when the image signal
  becomes unstable or image
  quality deteriorates simply press
  this button and the  projector will
  automatically adjust the screen
  dimension, phase, timing and so
  forth.(The adjustments also apply
  to PIP input).
 CONTRAST
  Adjust the level of white in the
  image to increase or decrease
 image contrast.
 BRIGHTNESS
  Adjust the level of black in the
  image to increase or...

29
OSD Menu description
OSD Menu Tree
INPUT
Input Selection
HDMI1
HDMI2
RGB D -15
YUV1
RGBH V/ Y U V2
SDI/HDSDI/3G
STER EO DVI


\b
 Auto
YUV HD
YUV STD
RGB -PC
RGB -Video
Input Locking Auto
48Hz, 50Hz, 60Hz
Auto Power Off On
Off
Auto Power ON On
Off
No Signal Logo
Blue
Black
White
Auto Image Adjust Off, Auto
Always
IMAGE Contrast 0~200
Brightness 0~200
Sharpness 0~200
Noise Reduction 0 ~200
Color Temperature
3200K, 5400K, 6500K,
9300K, Native
Input Balance Black Balance...

30OSD Menu description
ALIGNMENT
Rear Projection
On
Off
Ceiling Mode On
Off
Lens Control Zoom/Focus
Shift V
Shift H
Dynamic Contrast On
Off
Gamma 1.8      2.0     2.2
2.35     2.5    Dicom  sim
Internal Patterns O n (1~12 Pat t e r n)
Off (0 off )
Color Space Native,  EBU,  SMPTE
Custom
Lens To
Midposition Execute
Wa r p Horizontal Keystone
Vertical Keystone
Rotation
Pincushion / Barrel
Top Left Cor ner
Top Right Cor ner
Bottom Left Cor ner
Bottom Right Cor ner
Blanking Top,     Bottom...
