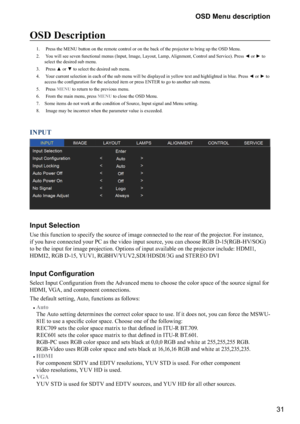

OSD Menu description
OSD Description
1.   Press the MENU button on the remote control or on the back of the proje\
ctor to bring up the OSD Menu.
2.   You will see seven functional menus (Input, Image, Layout, Lamp, Alignment, Control and Service). Press
* or + to
select the desired sub menu.
3.
\b\f\f

32OSD Menu description
#

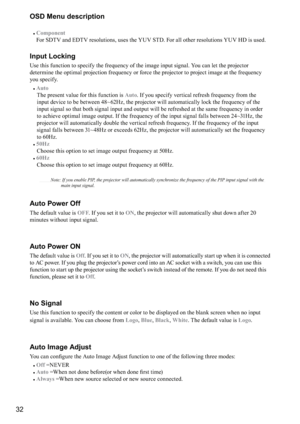

Component
For SDTV and EDTV resolutions, uses the YUV STD. For all other resolutions YUV HD is used.
Input Locking
Use this function to specify the frequency of the image input signal. You can let the projector
determine the optimal projection frequency or force the projector to project image at the frequency
you specify.
#
Auto
  The present value for this function is
Auto. If you specify vertical refresh frequency from the
input device to be b

etween 48~62Hz, the...

33
OSD Menu description
Contrast
Use    to adjust the contrast of the projected image. You can connect the projector to an external
image source to display an image resembling the one shown below for adjustment. It is recommended
that you adjust the projected image according to the results shown below so that the brightness of the
spectrum remains constant throughout and achieve maximum contrast between black and white.
The following image illustrates the results of direct contrast adjustment...

34OSD Menu description
Brightness
Use
  to adjust the brightness of the projected image. You can connect the projector to an external
image source to display an image resembling the one shown (PLUGE, Picture Line-Up Generation
Equipment) for adjustment. Although there are numerous versions of PLUGE image, they are typically
comprised of blocks of black, white and gray on top of a black background.

Contrast, Brightness, Saturation and Tint are interrelated options that affect


\b

35
OSD Menu description
Sharpness
The adjustment of sharpness primarily changes the value of high frequency detail. You can  connect
the projector to an external image source to display an image resembling the one shown below to
adjust the image sharpness.

The following image illustrates the results of direct sharpness adjustment using a random image:

 Reduced sharpness Enhanced sharpness

Original image (Value = 100)
Noise Reduction
Use    to adjust the noise of the projected image. This...

36OSD Menu description

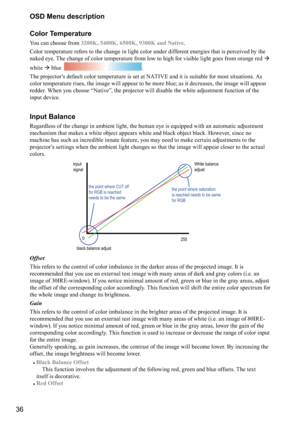

Color Temperature
You can choose from 3200K, 5400K, 6500K, 9300K and Native
.
Color temper
ature refers to the change in light color under different energies that is perceived by the
naked eye. The change of color temperature from low to high for visible light goes from orange red
white   blue
.
J
\b
\b+\f


\b
\b
\b
\f
\f



37
OSD Menu description
    Press
to adjust the offset of red in dark scales.
#
 Green Offset

    Press

 to adjust the offset of green in dark scales.
#
 Blue Offset

    Press

 to adjust the offset of blue in dark scales.
#
 White Balance

    This funct

ion involves the adjustment of the following red, green and blue gains. The text
itself is decorative.
#
 Red Gain

    Press
  to adjust the gain of red in bright scales.
#
 Green Gain

    Press

 to adjust the gain...

38OSD Menu description

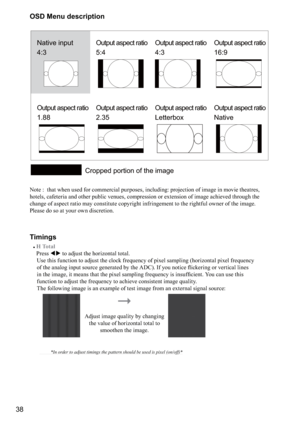

Native input
4:3
Output aspect ratio
16:9
Output aspect ratio
1.88 Output aspect ratio
2.35 Output aspect ratio
5:4Output aspect ratio
4:3
Output aspect ratio
Native
Output aspect ratio
Letterbox
Cropped portion of the image
Note :  that when used for commercial purposes, including: projection of image in movie theatres,
hotels, cafeteria and other public venues, compression or extension of image achieved through the
change of aspect ratio may constitute copyright infringement...

39
OSD Menu description
#
H Start

 Use


\f


\b

	+\f
\b@

\f

 If the projected image is not at the center of the screen (i.e. shifted to right or left) and

\f

&
\b>
\f
\f



	\f


	+\f
\b@

\f

J


 following image is an example of test image from an external signal source:

Native pictureSkewed leftSkewed right


#
H Phase

Use



\f


\b

	+\f
	\f
   Use this...

40OSD Menu description

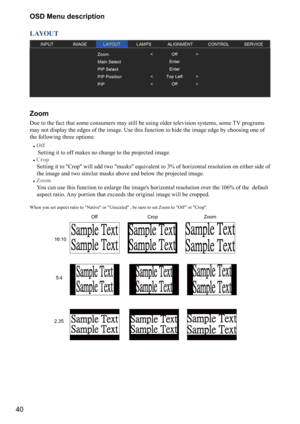

LAYOUT
Zoom
Due to the fact that some consumers may still be using older television systems, some TV programs
may not display the edges of the image. Use this function to hide the image edge by choosing one of
the following three options:
#
Off
 Setting it to off makes no change to the projected image.
#
 Crop
  Setting it to "Crop" will add two "masks" equivalent to 3% of horizontal resolution on either side of
the image and t
 wo similar masks above and...
