Epson Projector Emp Tw600 User Manual

9

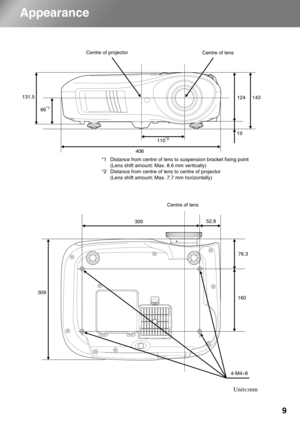

Appearance
406 Centre of projector
Centre of lens
*1 Distance from centre of lens to suspension bracket fixing point
(Lens shift amount: Max. 8.6 mm vertically)
*2 Distance from centre of lens to centre of projector
(Lens shift amount: Max. 7.7 mm horizontally)110
*2
131.5
66
*1
19124
30976.3
4-M4×8
Units:mm
52.8 Centre of lens
160 300143

10
Setting up

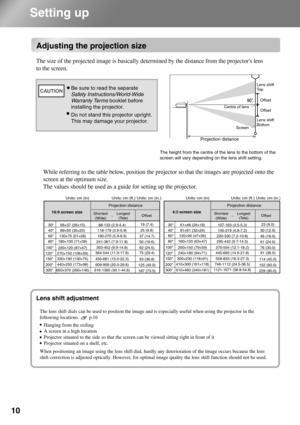

Adjusting the projection size
187 (73.5)19 (7.4)
25 (9.8)
37 (14.7)
62 (24.5)
75 (29.4) 91 (36.0) 50 (19.6)
125 (49.0)93 (36.8)229 (90.0)23 (9.0)
30 (12.0)
46 (18.0)
76 (30.0) 61 (24.0)
152 (60.0) 114 (45.0)
Centre of lensLens shift
To p
Lens shift
BottomOffset
Offset
Screen
Projection distance
Adjusting the projection size
Lens shift adjustment
The size of the projected image is basically determined by the distance from the projectors lens
to the screen.
Hanging from the ceiling
A...

11
Setting up
Installing the Projector
* When suspending the projector from a ceiling,
change the configuration menu settings.       p.33

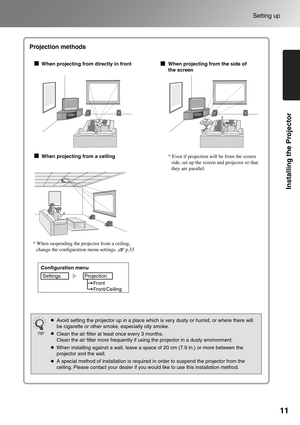

Projection methods
When projecting from directly in front
When projecting from a cellingWhen projecting from the side of
the screen
* Even if projection will be from the screen
side, set up the screen and projector so that
they are parallel.
Configuration menu
Settings Projection
Front
Front/Ceiling
Avoid setting the projector up in a place which is very dusty or...

12

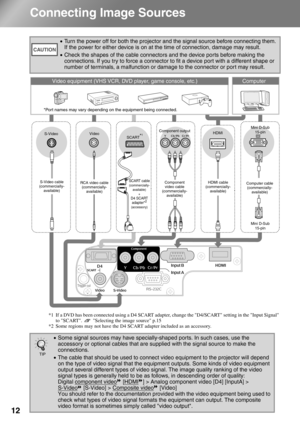

Connecting Image Sources
*1 If a DVD has been connected using a D4 SCART adapter, change the D4/SCART setting in the Input Signal
to SCART.   Selecting the image source p.15
*2 Some regions may not have the D4 SCART adapter included as an accessory.
•Turn the power off for both the projector and the signal source before connecting them.
If the power for either device is on at the time of connection, damage may result.
•Check the shapes of the cable connectors and the device ports before making the...

13
Installing the Projector

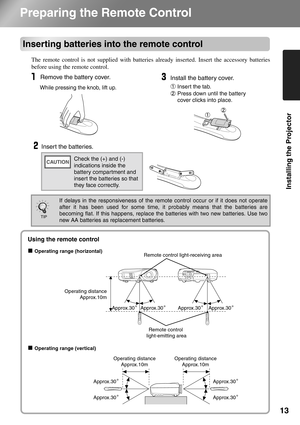

Preparing the Remote Control
Inserting batteries into the remote control
The remote control is not supplied with batteries already inserted. Insert the accessory batteries
before using the remote control.
If delays in the responsiveness of the remote control occur or if it does not operate
after it has been used for some time, it probably means that the batteries are
becoming flat. If this happens, replace the batteries with two new batteries. Use two
new AA batteries as...

14

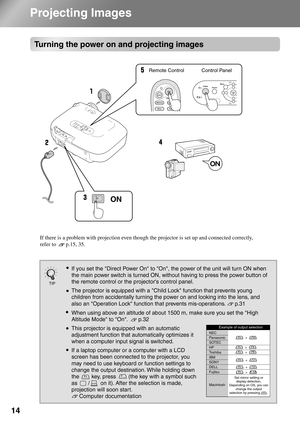

Projecting Images
Turning the power on and projecting
images
ON
Control Panel Remote Control
Turning the power on and projecting images
TIP
If you set the Direct Power On to On, the power of the unit will turn ON when
the main power switch is turned ON, without having to press the power button of
the remote control or the projectors control panel.  If there is a problem with projection even though the projector is set up and connected correctly,
refer to       p.15, 35.
The projector is equipped...

15
Projecting Images
Basic Operations

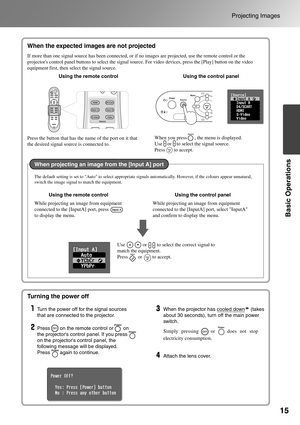

When the expected images are not
projected
Turning the power off
Simply pressing    or    does not stop
electricity consumption.
When the expected images are not projected
If more than one signal source has been connected, or if no images are projected, use the remote control or the
projectors control panel buttons to select the signal source. For video devices, press the [Play] button on the video
equipment first, then select the signal source.
Using the remote...

16

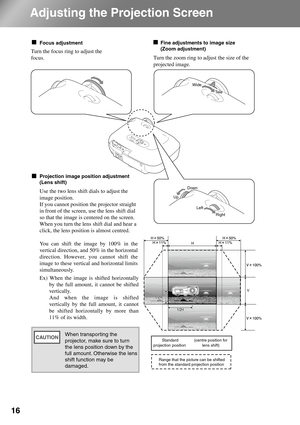

Adjusting the Projection Screen
Focus adjustment
Fine adjustments to image size (Zoom
adjustment)
Projection image position adjustment
(Lens shift)
V
H
When transporting the
projector, make sure to turn
the lens position down by the
full amount. Otherwise the lens
shift function may be
damaged.
Focus adjustment
Turn the focus ring to adjust the
focus.Turn the zoom ring to adjust the size of the
projected image.
Fine adjustments to image size
(Zoom adjustment)
Projection image position...

17
Adjusting the Projection Screen
Basic Operations

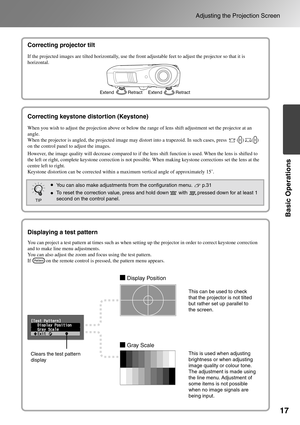

Correcting projector tilt
Correcting keystone distortion
(Keystone)
Displaying a test pattern
If the projected images are tilted horizontally, use the front adjustable feet to adjust the projector so that it is
horizontal.
Correcting projector tilt
Extend Retract Extend Retract
Correcting keystone distortion (Keystone)
When you wish to adjust the projection above or below the range of lens shift adjustment set the projector at an
angle.
When the...

18

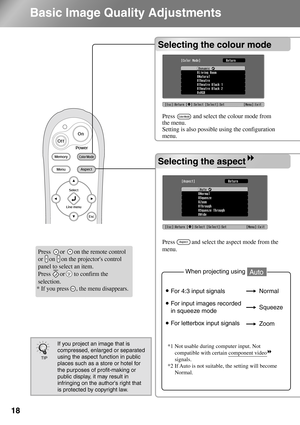

Basic Image Quality Adjustments
Selecting the colour mode
Selecting the aspect
Press      or      on the remote control
or    on    on the projectors control
panel to select an item.
Press      or      to confirm the
selection.
* If you press     , the menu disappears.
If you project an image that is
compressed, enlarged or separated
using the aspect function in public
places such as a store or hotel for
the purposes of profit-making or
public display, it may result in
infringing on the...
