Epson Projector Emp Tw600 User Manual

19

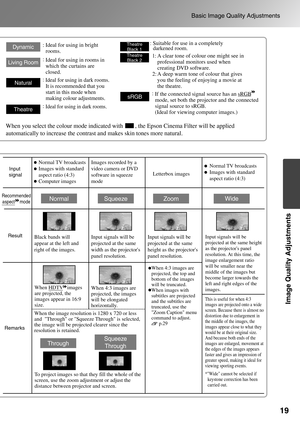

Basic Image Quality Adjustments
Image Quality Adjustments
Living Room
Natural
Theatre
Dynamic: Ideal for using in bright
rooms.
:
Ideal for using in rooms in
which the curtains are
closed.
: Ideal for using in dark rooms.
It is recommended that you
start in this mode when
making colour adjustments.
: Ideal for using in dark rooms.
When you select the colour mode indicated with        , the Epson Cinema Filter will be applied
automatically to increase the contrast and makes skin tones more...

20

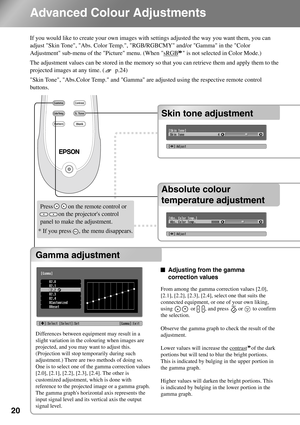

Advanced Colour Adjustments
If you would like to create your own images with settings adjusted the way you want them, you can
adjust Skin Tone, Abs. Color Temp., RGB/RGBCMY and/or Gamma in the Color
Adjustment sub-menu of the Picture menu. (When sRGB
 is not selected in Color Mode.)
The adjustment values can be stored in the memory so that you can retrieve them and apply them to the
projected images at any time. (  p.24)
Skin Tone, Abs.Color Temp. and Gamma are adjusted using the respective remote...

21
Advanced Colour Adjustments
Image Quality Adjustments
Customized
(Adjust it from the image)Customized
(Adjust it from the graph)
Use                       or                      to move the
gamma icon to the place where you want to
adjust the brightness, and press       or       to
confirm the selection. The place selected and
the regions of the same brightness will flash,
and a gamma graph will appear. Press      or
again to reconfirm. A screen for adjusting the
tone will appear.
Use...

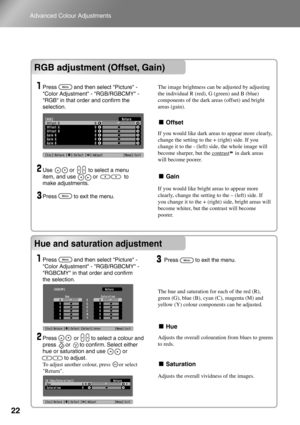

22
Advanced Colour Adjustments
RGB adjustment (Offset, Gain)
Hue and saturation adjustment
RGB adjustment (Offset, Gain)
Hue and saturation adjustment
Press           and then select Picture -
Color Adjustment - RGB/RGBCMY -
RGB in that order and confirm the
selection.
Use           or         to select a menu
item, and use           or                 to
make adjustments.
Press           to exit the menu.
Press           to exit the menu.
Press           and then select Picture -
Color...

23

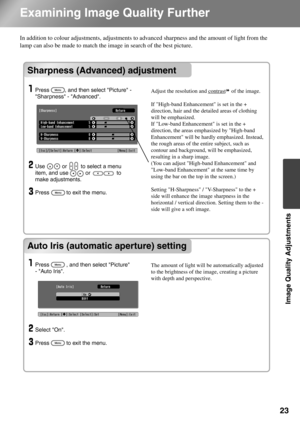

Image Quality Adjustments
Examining Image Quality Further
In addition to colour adjustments, adjustments to advanced sharpness and the amount of light from the
lamp can also be made to match the image in search of the best picture.
Sharpness (Advanced) adjustment
Auto Iris (automatic aperture) setting
Sharpness (Advanced) adjustment
Auto Iris (automatic aperture) setting
Use           or         to select a menu
item, and use           or                 to
make adjustments.
Press           to...

24

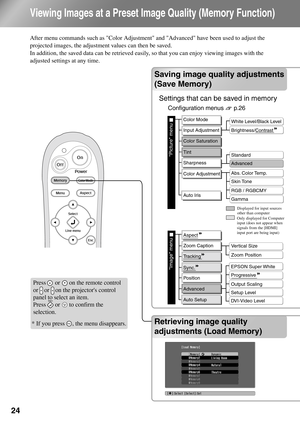

Viewing Images at a Preset Image Quality (Memory Function)
After menu commands such as Color Adjustment and Advanced have been used to adjust the
projected images, the adjustment values can then be saved.
In addition, the saved data can be retrieved easily, so that you can enjoy viewing images with the
adjusted settings at any time.
Saving image quality adjustments
(Save Memory)
Retrieving image quality adjustments
(Load Memory)
EPSON Super White
* If you press     , the menu disappears.Press...

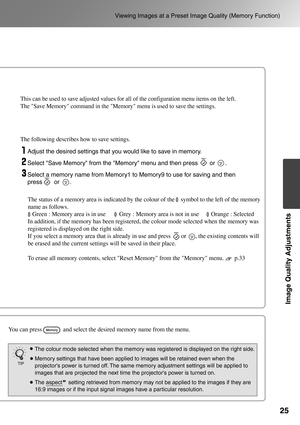

25
Viewing Images at a Preset Image Quality (Memory Function)
Image Quality Adjustments
TIP
Adjust the desired settings that you would like to save in memory.
Select Save Memory from the Memory menu and then press       or      .
Select a memory name from Memory1 to Memory9 to use for saving and then
press       or      . The following describes how to save settings.
This can be used to save adjusted values for all of the configuration menu items on the left.
The Save Memory command in the Memory menu...

26

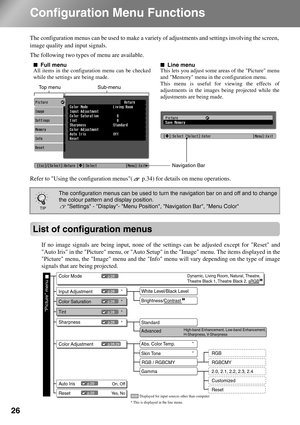

Configuration Menu Functions
The configuration menus can be used to make a variety of adjustments and settings involving the screen,
image quality and input signals.
The following two types of menu are available.
Refer to Using the configuration menus( p.34) for details on menu operations.
List of configuration menus
If no image signals are being input, none of the settings can be adjusted except for Reset and
Auto Iris in the Picture menu, or Auto Setup in the Image menu. The items displayed in...

27

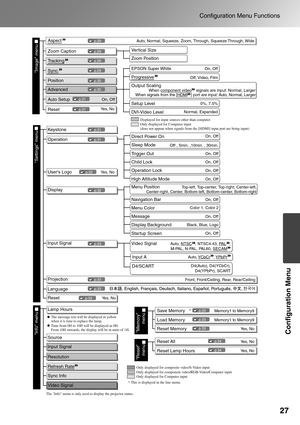

Configuration Menu Functions
Configuration Menu
ÉXÉäÅ[ÉvÉÇÅ[Éh
ì¸óÕâšëúìx
Memory1 to Memory9p.33
p.33
p.34
p.34
Memory1 to Memory9
0%, 7.5%
EPSON Super White
*
p.29
p.29
p.29
p.29
p.30
p.30
p.32
Input A
D4/SCART
Auto, YCbCr   , YPbPr
D4(Auto), D4(YCbCr),
D4(YPbPr), SCART Auto, NTSC   , NTSC4.43, PAL   ,
M-PAL, N-PAL, PAL60, SECAM
p.33
p.31
p.33
p.33
p.31
p.31
p.33
p.33
p.32
p.31
Image menu Settings menu
AspectAuto, Normal, Squeeze, Zoom, Through, Squeeze Through, Wide
Zoom Caption...

28

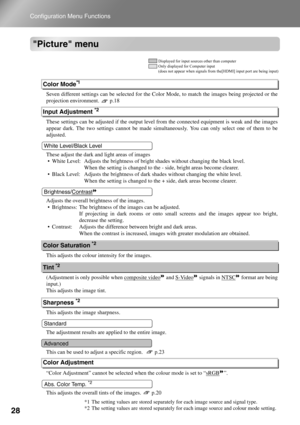

Configuration Menu Functions
Picture menu
Seven different settings can be selected for the Color Mode, to match the images being projected or the
projection environment.  p.18
These settings can be adjusted if the output level from the connected equipment is weak and the images
appear dark. The two settings cannot be made simultaneously. You can only select one of them to be
adjusted.
These adjust the dark and light areas of images
• White Level: Adjusts the brightness of bright shades without...
