Epson Projector Emp Twd3 User Manual

Refer to the following checklist and make sure you have received all of the items. Contact the place of purchase if items
are missing.
Indicates content which may cause projector damage or malfunction.
Indicates additional information and points which may be useful to know regarding a topic.
sIndicates a page where useful information regarding a topic can be found.
Indicates operating methods and the order of operations.
The procedure indicated should be carried out in the order of the numbered steps....

1
Quick Start
Settings and
Adjustments
Appendix
Advanced Operations
Safety Instructions ..................................................... 2
Use and Storage ......................................................... 5
About Discs ............................................................... 7
Part Names ................................................................ 8
Preparing the Remote Control ................................... 11
Quick Start
Installation...

2
Read the following important information about your
unit.
Important safety information
Warning :
To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.
Warning :
Never look into the projector lens when the lamp is
switched on as the bright light can damage your eyes. If
there are small children in the house, make sure that the
child lock and so on is set.
Warning :
Never open any covers on the projector except the lamp
cover. Dangerous electrical voltages...

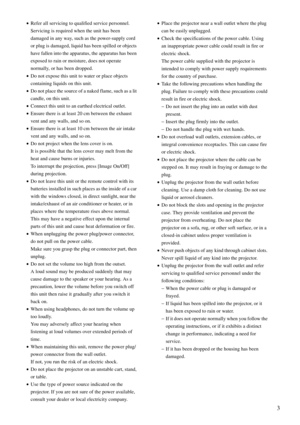

3
•Refer all servicing to qualified service personnel.
Servicing is required when the unit has been
damaged in any way, such as the power-supply cord
or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
•Do not expose this unit to water or place objects
containing liquids on this unit.
•Do not place the source of a naked flame, such as a lit
candle, on this unit....

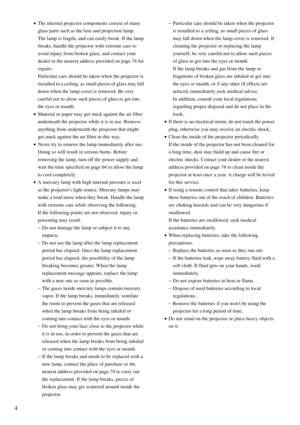

4
•The internal projector components consist of many
glass parts such as the lens and projection lamp.
The lamp is fragile, and can easily break. If the lamp
breaks, handle the projector with extreme care to
avoid injury from broken glass, and contact your
dealer or the nearest address provided on page 74 for
repairs.
Particular care should be taken when the projector is
installed to a ceiling, as small pieces of glass may fall
down when the lamp cover is removed. Be very
careful not to allow...

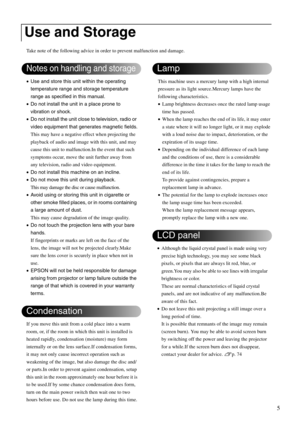

5
Take note of the following advice in order to prevent malfunction and damage.
•Use and store this unit within the operating
temperature range and storage temperature
range as specified in this manual.
•Do not install the unit in a place prone to
vibration or shock.
•Do not install the unit close to television, radio or
video equipment that generates magnetic fields.
This may have a negative effect when projecting the
playback of audio and image with this unit, and may
cause this unit to...

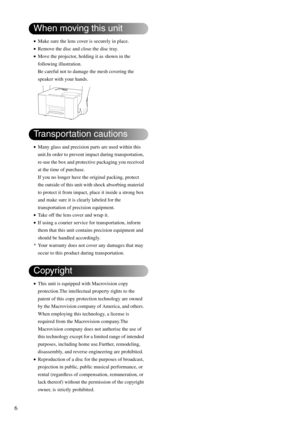

6
•Make sure the lens cover is securely in place.
•Remove the disc and close the disc tray.
•Move the projector, holding it as shown in the
following illustration.
Be careful not to damage the mesh covering the
speaker with your hands.
•Many glass and precision parts are used within this
unit.In order to prevent impact during transportation,
re-use the box and protective packaging you received
at the time of purchase.
If you no longer have the original packing, protect
the outside of this unit with...

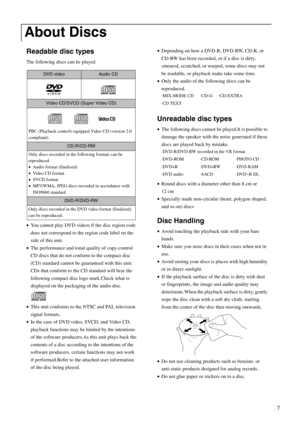

7
Readable disc types
The following discs can be played.
•You cannot play DVD videos if the disc region code
does not correspond to the region code label on the
side of this unit.
•The performance and tonal quality of copy-control
CD discs that do not conform to the compact disc
(CD) standard cannot be guaranteed with this unit.
CDs that conform to the CD standard will bear the
following compact disc logo mark.Check what is
displayed on the packaging of the audio disc.
•This unit conforms to the...

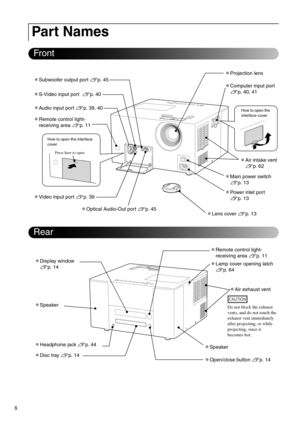

8
Part Names
Front
vS-Video input port  sp. 40
vRemote control light-
receiving area sp. 11 vAudio input port sp. 39, 40
vVideo input port sp. 39
vOptical Audio-Out port sp. 45
vLens cover sp. 13 vPower inle t po r t
sp. 13 vMain power switch
sp. 13vAir intake vent
sp. 62 vProjection lens
vSubwoofer output port sp. 45
How to open the interface
cover
Press here to open
vComputer input port
sp. 40, 41
How to open the
interface cover
Rear
vDisplay window
sp. 14
vHeadphone jack sp. 44
vDisc tray sp....
