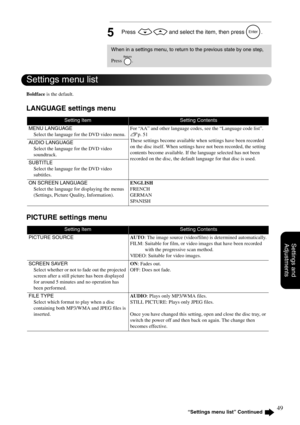

Page 51
49 Settings and Adjustments 5Press and select the item, then press . Boldface is the default. LANGUAGE settings menu PICTURE settings menu When in a settings menu, to return to the previous state by one step, Press . Setting ItemSetting Contents MENU LANGUAGE Select the language for the DVD video menu.For “AA” and other language codes, see the “Language code list”. sp. 51 These settings become available when settings have been recorded on the disc itself. When settings have not been recorded, the...
Page 52
50 AUDIO settings menu OTHERS settings menu * The settings menu closes automatically if the password is incorrect 3 times. Setting ItemSetting Contents DIGITAL AUDIO OUTPUT Select the kind of output signal according to the equipment connected to the Optical Audio-Out port. For detailed signal information sp. 52PCM ONLY: Use when connected to equipment that is only compliant with Linear PCM. DOLBY DIGITAL/PCM: Use when connected to a Dolby Digital Decoder or when connected to equipment with this...

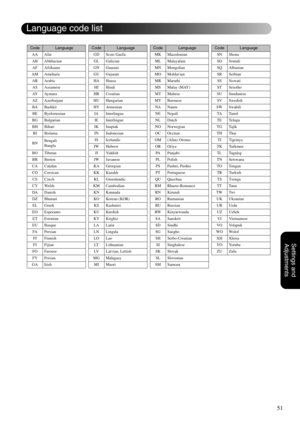

Page 53
51 Settings and Adjustments CodeLanguageCodeLanguageCodeLanguageCodeLanguage AA Afar GD Scots Gaelic MK Macedonian SN Shona AB Abkhazian GL Galician ML Malayalam SO Somali AF Afrikaans GN Guarani MN Mongolian SQ Albanian AM Ameharic GU Gujarati MO Moldavian SR Serbian AR Arabic HA Hausa MR Marathi SS Siswati AS Assamese HI Hindi MS Malay (MAY) ST Sesotho AY Aymara HR Croatian MT Maltese SU Sundanese AZ Azerbaijani HU Hungarian MY Burmese SV Swedish BABashkir HYArmenian NANauru SWSwahili BE Byelorussian...

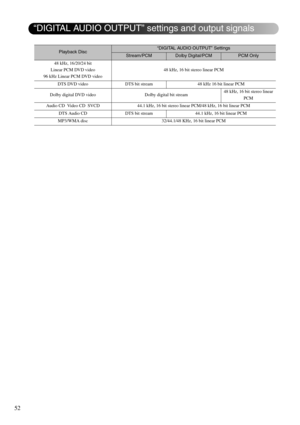

Page 54
52 Playback Disc“DIGITAL AUDIO OUTPUT” Settings Stream/PCMDolby Digital/PCMPCM Only 48 kHz, 16/20/24 bit Linear PCM DVD video 96 kHz Linear PCM DVD video48 kHz, 16 bit stereo linear PCM DTS DVD video DTS bit stream 48 kHz 16 bit linear PCM Dolby digital DVD video Dolby digital bit stream48 kHz, 16 bit stereo linear PCM Audio CD Video CD SVCD 44.1 kHz, 16 bit stereo linear PCM/48 kHz, 16 bit linear PCM DTS Audio CD DTS bit stream 44.1 kHz, 16 bit linear PCM MP3/WMA disc 32/44.1/48 KHz, 16 bit linear...

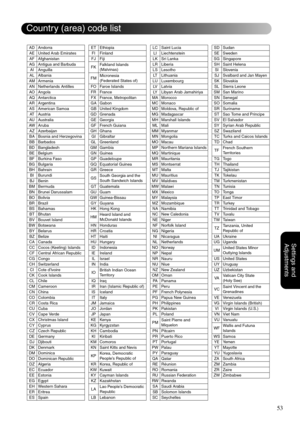

Page 55
53 Settings and Adjustments AD Andorra ET Ethiopia LC Saint Lucia SD Sudan AE United Arab Emirates FI Finland LI Liechtenstein SE Sweden AF Afghanistan FJ Fiji LK Sri Lanka SG Singapore AG Antigua and Barbuda FKFalkland Islands (Malvinas)LR Liberia SH Saint Helena AI Anguilla LS Lesotho SI Slovenia AL Albania FMMicronesia (Federated States of)LT Lithuania SJ Svalbard and Jan Mayen AM Armenia LU Luxembourg SK Slovakia AN Netherlands Antilles FO Faroe Islands LV Latvia SL Sierra Leone AO Angola FR France...

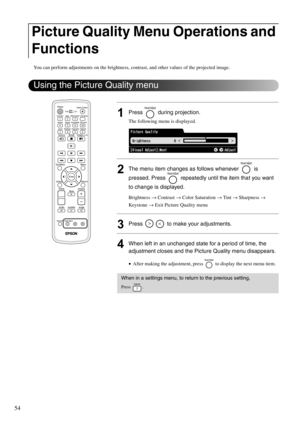

Page 56
54 You can perform adjustments on the brightness, contrast, and other values of the projected image. 1Press during projection. The following menu is displayed. 2The menu item changes as follows whenever is pressed. Press repeatedly until the item that you want to change is displayed. Brightness → Contrast → Color Saturation → Tint → Sharpness → Keystone → Exit Picture Quality menu 3Press to make your adjustments. 4When left in an unchanged state for a period of time, the adjustment closes and...

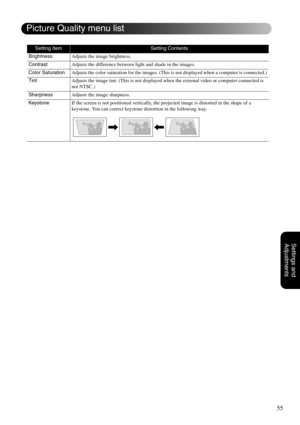

Page 57
55 Settings and Adjustments Setting ItemSetting Contents BrightnessAdjusts the image brightness. ContrastAdjusts the difference between light and shade in the images. Color SaturationAdjusts the color saturation for the images. (This is not displayed when a computer is connected.) TintAdjusts the image tint. (This is not displayed when the external video or computer connected is not NTSC.) SharpnessAdjusts the image sharpness. KeystoneIf the screen is not positioned vertically, the projected image is...
Page 58

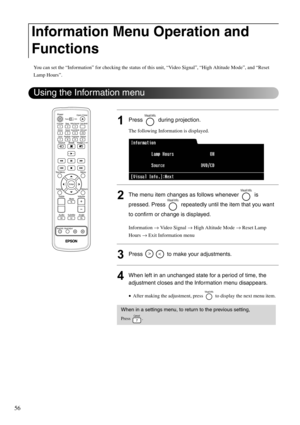

56 You can set the “Information” for checking the status of this unit, “Video Signal”, “High Altitude Mode”, and “Reset Lamp Hours”. 1Press during projection. The following Information is displayed. 2The menu item changes as follows whenever is pressed. Press repeatedly until the item that you want to confirm or change is displayed. Information → Video Signal → High Altitude Mode → Reset Lamp Hours → Exit Information menu 3Press to make your adjustments. 4When left in an unchanged state for a...

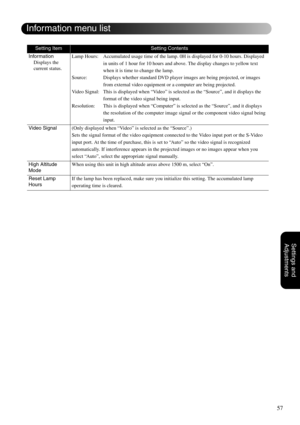

Page 59
57 Settings and Adjustments Setting ItemSetting Contents Information Displays the current status.Lamp Hours: Accumulated usage time of the lamp. 0H is displayed for 0-10 hours. Displayed in units of 1 hour for 10 hours and above. The display changes to yellow text when it is time to change the lamp. Source: Displays whether standard DVD player images are being projected, or images from external video equipment or a computer are being projected. Video Signal: This is displayed when “Video” is...

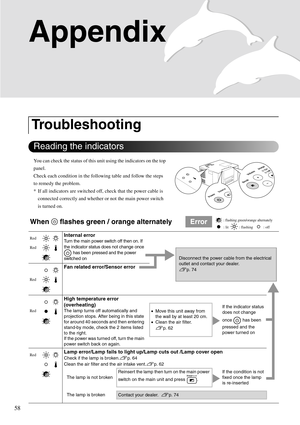

Page 60
58 Appendix You can check the status of this unit using the indicators on the top panel. Check each condition in the following table and follow the steps to remedy the problem. * If all indicators are switched off, check that the power cable is connected correctly and whether or not the main power switch is turned on. Troubleshooting When flashes green / orange alternatelyError : flashing green/orange alternately : lit : flashing : off Internal error Turn the main power switch off then on....
