Advanced Operations

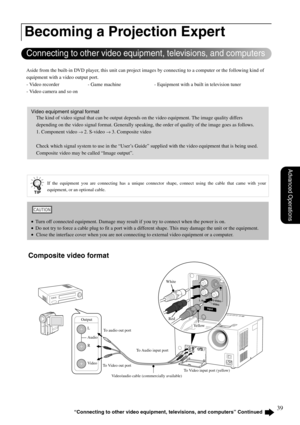

Aside from the built-in DVD player, this unit can project images by connecting to a computer or the following kind of
equipment with a video output port.
- Video recorder - Game machine - Equipment with a built in television tuner
- Video camera and so on
 Composite video format
Becoming a Projection Expert
Video equipment signal format
The kind of video signal that can be output depends on the video equipment. The image quality differs
depending on the video signal format....

40

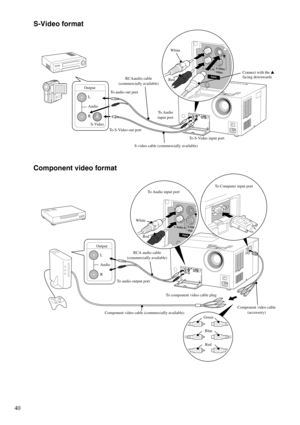

S-Video format
Component video format
To audio out port
To S-Video out port
S-video cable (commercially available) RCAaudio cable
(commercially available)
To  A u d i o
input port
To S-Video input port
Connect with the ▲
facing downwards
White
Output
Audio L
R
S-VideoRed
Output
Audio L
R
To audio output port
Component video cable (commercially available)RCA audio cable
(commercially available)To Audio input port
White
Red
To component video cable plugTo Computer input port
Component video cable...

41
Advanced Operations
Connecting with a computer
Use a cable marked “No resistance” when you use a commercially available audio cable of 2RCA ⇔ stereo mini-plug.
To audio
output port
To display output port
2RCA ⇔ Stereo mini-pin
audio cable
(commercially available)
To Audio input port
White
RedTo Computer input port
Computer cable
(optional accessory or commercially available)
(Mini D-Sub 15-pin
⇔ Mini D-Sub 15-pin)

42

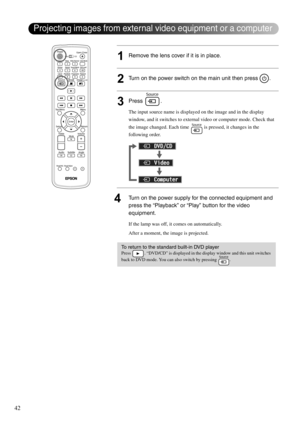

1Remove the lens cover if it is in place.
2Turn on the power switch on the main unit then press  .
3Press .
The input source name is displayed on the image and in the display
window, and it switches to external video or computer mode. Check that
the image changed. Each time   is pressed, it changes in the
following order.
4Turn on the power supply for the connected equipment and
press the “Playback” or “Play” button for the video
equipment.
If the lamp was off, it comes on automatically.
After a...

43
Advanced Operations
When a computer image is not projected
You can switch the output destination from the computer by holding down
 and pressing   (the key is usually labeled   or  ).
s Computer documentation
After switching, wait a few seconds for projection to start.
Depending on the computer, each time the key to change the output is
pressed, the display status may also change as follows.
Functions available when in external video or
computer mode
The following remote control buttons are...

44

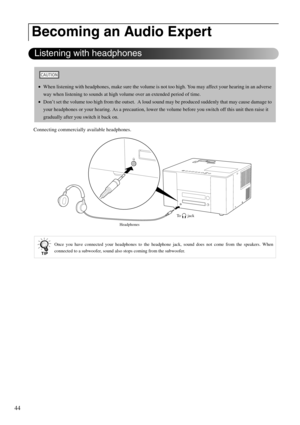

Connecting commercially available headphones.
Becoming an Audio Expert
•When listening with headphones, make sure the volume is not too high. You may affect your hearing in an adverse
way when listening to sounds at high volume over an extended period of time.
•Don’t set the volume too high from the outset.  A loud sound may be produced suddenly that may cause damage to
your headphones or your hearing. As a precaution, lower the volume before you switch off this unit then raise it
gradually after...

45
Advanced Operations

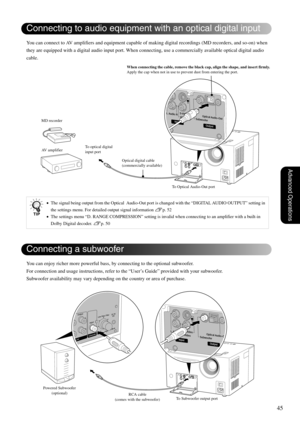

You can connect to AV amplifiers and equipment capable of making digital recordings (MD recorders, and so-on) when
they are equipped with a digital audio input port. When connecting, use a commercially available optical digital audio
cable.
You can enjoy richer more powerful bass, by connecting to the optional subwoofer.
For connection and usage instructions, refer to the “User’s Guide” provided with your subwoofer.
Subwoofer availability may vary depending on the country or...

46

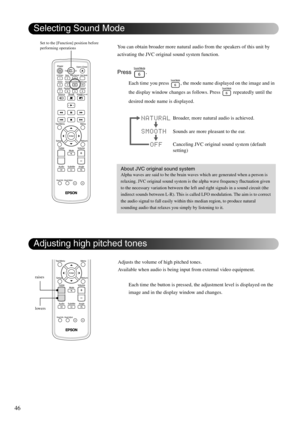

You can obtain broader more natural audio from the speakers of this unit by
activating the JVC original sound system function.
Press .
Each time you press  , the mode name displayed on the image and in
the display window changes as follows. Press   repeatedly until the
desired mode name is displayed.
Adjusts the volume of high pitched tones.
Available when audio is being input from external video equipment.
Each time the button is pressed, the adjustment level is displayed on the
image and in the...

47
Advanced Operations

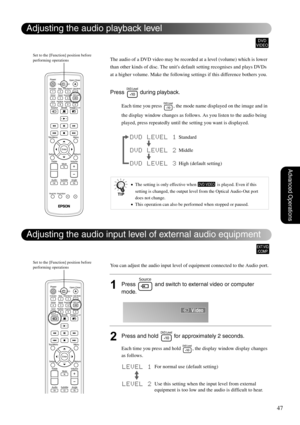

The audio of a DVD video may be recorded at a level (volume) which is lower
than other kinds of disc. The units default setting recognises and plays DVDs
at a higher volume. Make the following settings if this difference bothers you.
Press  during playback.
Each time you press  , the mode name displayed on the image and in
the display window changes as follows. As you listen to the audio being
played, press repeatedly until the setting you want is displayed.
You can adjust the...

48

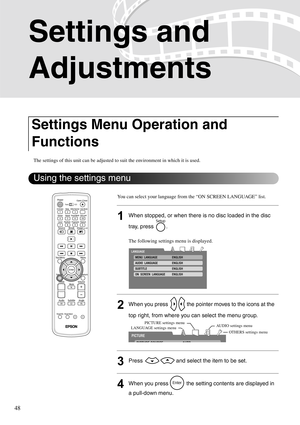

Settings and
Adjustments
The settings of this unit can be adjusted to suit the environment in which it is used.
You can select your language from the “ON SCREEN LANGUAGE” list.
1When stopped, or when there is no disc loaded in the disc
tray, press  .
The following settings menu is displayed.
2When you press   the pointer moves to the icons at the
top right, from where you can select the menu group.
3Press   and select the item to be set.
4When you press   the setting contents are displayed in
a...
