fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

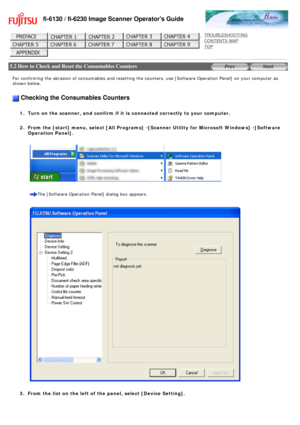

 5.2 How to Check and Reset the Consumables Counters


For confirming the abrasion of consumables and resetting the counters, u\
se [Software Operation Panel] on your computer as
shown below.

 Checking the Consumables Counters

1.  Turn on the scanner, and confirm if it is connected correctly to your co\
mputer.
2.  From the [start] menu, select [All Programs]Õ[Scanner Utility for Microsoft...

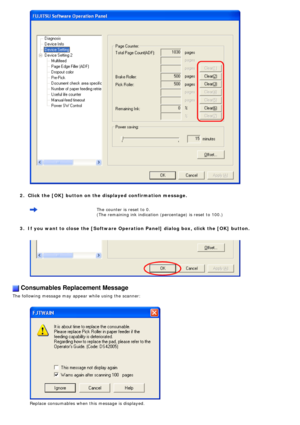

  You can confirm the following information in this panel:

Total Page Count (ADF) Total scanned sheets
Brake Roller  Number of sheets scanned since last replacement of the Brake roller
Pick Roller  Number of sheets scanned since last replacement of the Pick roller
Remaining Ink  Remaining ink in the imprinters (sold separately) ink cartridge.
(Displayed only when the imprinter option is used.)

 Resetting the Consumables Counters
Reset the consumables counter(s) every time you replace the...


2.  Click the [OK] button on the displayed confirmation message.

The counter is reset to 0.
(The remaining ink indication (percentage) is reset to 100.)

3.  If you want to close the [Software Operation Panel] dialog box, click th\
e [OK] button.


 Consumables Replacement Message
The following message may appear while using the scanner:


 Replace consumables when this message is displayed.


When you click the [Ignore] button, this message disappears and scanning\
 continues.
You may be able to continue scanning for a while, however, it is recomme\
nded that you replace the consumable as soon as
possible.
To stop the scanning and replace the consumable right away, click the [C\
ancel] button.

For the replacement of consumables, refer to the following sections.
Pick roller: 5.4 Replacing the Pick Roller
Brake roller: 5.3 Replacing the Brake Roller


All Rights Reserved....

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

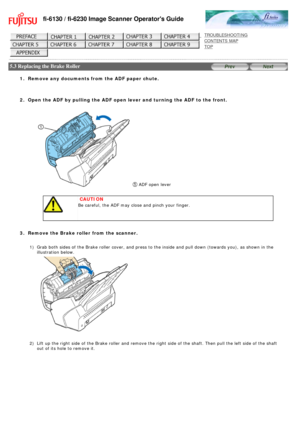

 5.3 Replacing the Brake Roller


1.  Remove any documents from the ADF paper chute.
  2.  Open the ADF by pulling the ADF open lever and turning the ADF to the fr\
ont.

 ADF open lever


 CAUTION
Be careful, the ADF may close and pinch your finger.


3.  Remove the Brake roller from the scanner.
 1)Grab both sides of the Brake roller cover, and press to the inside and p\
ull down (towards you),...




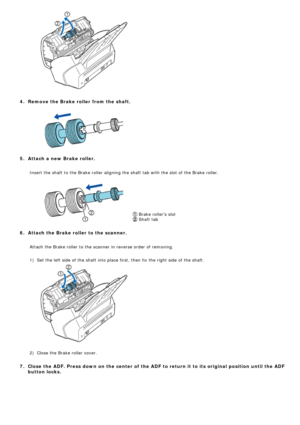

4.  Remove the Brake roller from the shaft.



5.  Attach a new Brake roller.
 Insert the shaft to the Brake roller aligning the shaft tab with the slo\
t of the Brake roller.


 Brake rollers slot
 Shaft tab

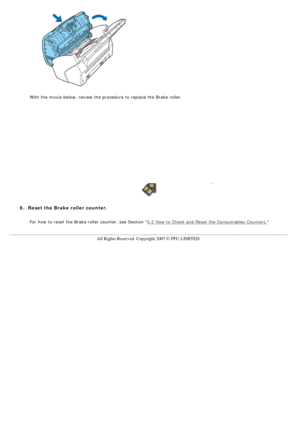

6.  Attach the Brake roller to the scanner.
 Attach the Brake roller to the scanner in reverse order of removing.

  1)Set the left side of the shaft into place first, then fix the right side\
 of the shaft.




  2)Close the Brake roller cover.

7.  Close the ADF....




  With the movie below, review the procedure to replace the Brake roller.


8.  Reset the Brake roller counter.
 For how to reset the Brake roller counter, see Section 5.2 How to Check and Reset the Consumables Counters.


All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

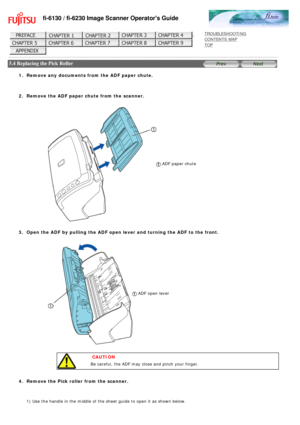

 5.4 Replacing the Pick Roller


1.  Remove any documents from the ADF paper chute.
  2.  Remove the ADF paper chute from the scanner.
 ADF paper chute
 3.  Open the ADF by pulling the ADF open lever and turning the ADF to the fr\
ont.
  ADF open lever

 CAUTION
Be careful, the ADF may close and pinch your finger.

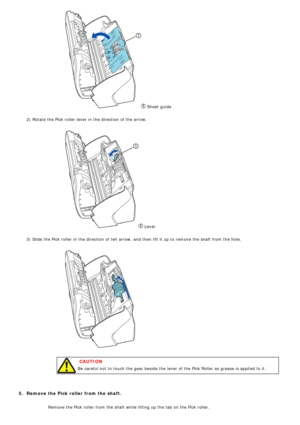

4.  Remove the Pick roller from the scanner.

1) Use the handle in the middle of the...


 Sheet guide
 2) Rotate the Pick roller lever in the direction of the arrow.

 Lever
  3) Slide the Pick roller in the direction of teh arrow, and then lift i\
t up to remove the shaft from the hole.



 CAUTION
Be careful not to touch the gear beside the lever of the Pick Roller as \
grease is applied to it.


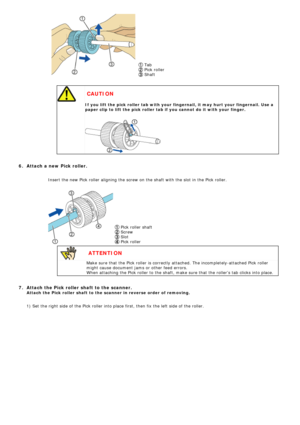

5.  Remove the Pick roller from the shaft.

Remove the Pick roller from the shaft while lifting up the tab on the Pi\
ck roller.

 Tab  Pick roller   Shaft


 CAUTION

If you lift the pick roller tab with your fingernail, it may hurt your f\
ingernail. Use a
paper clip to lift the pick roller tab if you cannot do it with your fin\
ger.

6.  Attach a new Pick roller.

Insert the new Pick roller aligning the screw on the shaft with the slot\
 in the Pick roller.


 Pick roller shaft  Screw  Slot  Pick roller
 ATTENTION

Make sure that the Pick roller is correctly attached. The incompletely-a\
ttached Pick roller...
