 Chapter 4 DAILY CARE


This chapter describes how to clean the scanner.

 CAUTION
When operating the scanner, the ADFs glass becomes very hot.
Before you clean inside the scanner, turn off its power and unplug the A\
C adapter from the
outlet. Wait for at least 15 minutes for the ADF glass to cool down.
Do not turn off the scanner when you clean the Feed and Eject rollers.  \

 WARNING
Do not use any...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

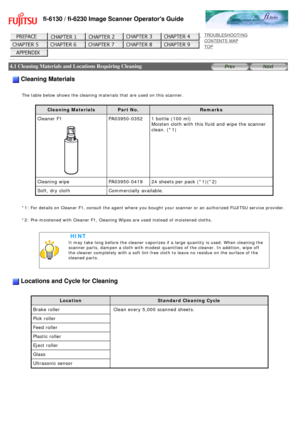

 4.1 Cleaning Materials and Locations Requiring Cleaning


 Cleaning Materials

The table below shows the cleaning materials that are used on this scann\
er.

Cleaning Materials
Part No. Remarks
Cleaner F1

  PA03950-0352
1 bottle (100 ml)
Moisten cloth with this fluid and wipe the scanner
clean. (*1)
Cleaning wipe  PA03950-041924 sheets per pack (*1)(*2)
Soft, dry cloth  Commercially available....

  ATTENTION
The scanner must be cleaned more frequently when the following documents\
 are used:
l     Documents of coated paper
l     Documents with printed text or graphics almost covering the entire surfa\
ce
l     Chemically treated documents such as carbonless paper
l     Documents containing a large amount of calcium carbonate
l     Documents written by pencil
l     Documents on which the toner is not fused sufficiently
Detergent for cleaning windows or glass cleaner can be used instead of...

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

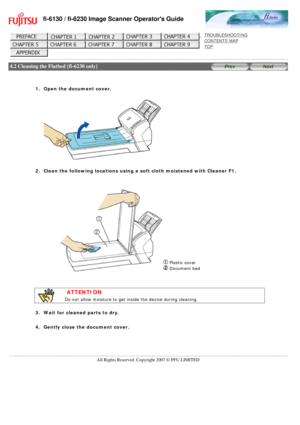

 4.2 Cleaning the Flatbed [fi-6230 only]



1.  Open the document cover.

2.  Clean the following locations using a soft cloth moistened with Cleaner \
F1.
 Plastic cover
 Document bed

   ATTENTION
Do not allow moisture to get inside the device during cleaning.


3.  Wait for cleaned parts to dry.
 4.  Gently close the document cover.



All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 4.3 Cleaning the ADF


As a Guideline, clean the ADF every 5,000 scanned sheets. Note that this\
 guideline varies according to the type of documents
you scan. For example, it may be necessary to clean the ADF more frequen\
tly if documents are scanned when the toner is not
sufficiently fixed on the printout.

 CAUTION

The glass surface of the ADF becomes hot during the operation of the sca\
nner....

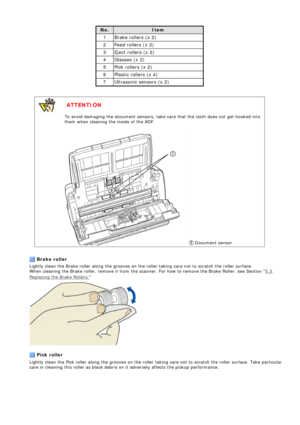

No.Item
1 Brake rollers (x 2)
2 Feed rollers (x 2)
3 Eject rollers (x 2)
4 Glasses (x 2)
5 Pick rollers (x 2)
6 Plastic rollers (x 4)
7 Ultrasonic sensors (x 2)


 ATTENTION
To avoid damaging the document sensors, take care that the cloth does no\
t get hooked into
them when cleaning the inside of the ADF.

 Document sensor

 Brake roller

Lightly clean the Brake roller along the grooves on the roller taking ca\
re not to scratch the roller surface.
When cleaning the Brake roller, remove...


  Plastic roller

Lightly clean the Plastic roller taking care not to damage the roller su\
rface. Take particular care when cleaning this
roller as black debris on it affects document pick performance. Be caref\
ul not to damage the sponges attached around
the middle of the roller.
 Glass
 Clean lightly.

  HINT If the glass is dirty, vertical streaks may apper in the scanned images.\
 Ultrasonic sensor
 Clean lightly with a dry cloth.
 With the movie below, review the procedure to clean the...












 [Send to] Button
 [Scan] Button

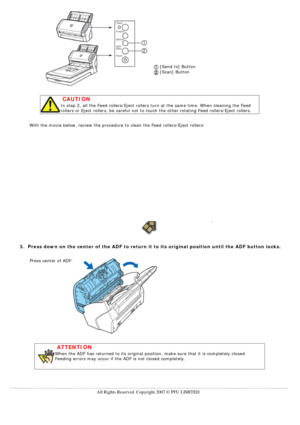

 CAUTION
In step 2, all the Feed rollers/Eject rollers turn at the same time. Whe\
n cleaning the Feed
rollers or Eject rollers, be careful not to touch the other rotating Fee\
d rollers/Eject rollers.

 With the movie below, review the procedure to clean the Feed rollers/Eje\
ct rollers:





3.  Press down on the center of the ADF to return it to its original positio\
n until the ADF button locks.

Press center of ADF....

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 Chapter 5 REPLACING CONSUMABLES


This chapter describes how to replace scanner consumables.

In this chapter Windows XP screenshots are illustrated.
The screens and operations may differ slightly if the OS that you are us\
ing is other than Windows XP.
Also, when the FUJITSU TWAIN32 or FUJITSU ISIS scanner driver is updated\
 the screens and operations noted in this chapter will
differ slightly....

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

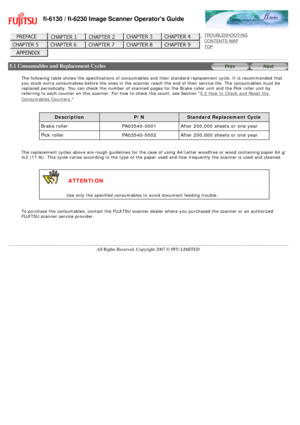

 5.1 Consumables and Replacement Cycles


The following table shows the specifications of consumables and their st\
andard replacement cycle. It is recommended that
you stock extra consumables before the ones in the scanner reach the end\
 of their service life. The consumables must be
replaced periodically. You can check the number of scanned pages for the\
 Brake roller unit and the Pick roller unit by...
