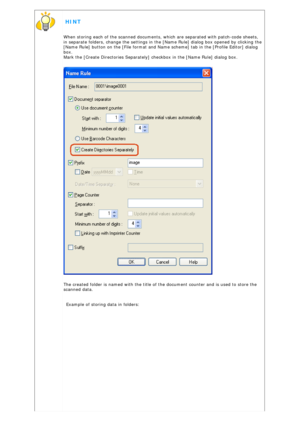

  HINT
When storing each of the scanned documents, which are separated with pat\
ch-code sheets,
in separate folders, change the settings in the [Name Rule] dialog box o\
pened by clicking the
[Name Rule] button on the [File format and Name scheme] tab in the [Prof\
ile Editor] dialog
box.
Mark the [Create Directories Separately] checkbox in the [Name Rule] dia\
log box.
The created folder is named with the title of the document counter and i\
s used to store the
scanned data.
Example of storing...


All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

 3.17 Splitting Documents by Barcodes



ScandAll PRO supports a job separation function with barcode-printed she\
ets (hereinafter reffered to as the barcode). The
barcode-based job separation function can divide multiple pages of scann\
ed images into pre-determined unit and save them to
different folders separetely without interruption. A PDF or TIFF (multi\
page) file can be separated and stored as...

 For how to create a profile, see Batch Scan in Section 2.6 How to Use ScandAll PRO.

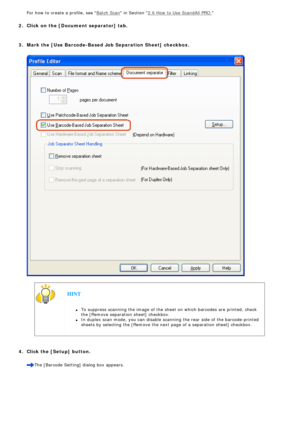

 2.  Click on the [Document separator] tab.

 3.  Mark the [Use Barcode-Based Job Separation Sheet] checkbox.



  HINT
l     To suppress scanning the image of the sheet on which barcodes are printe\
d, check
the [Remove separation sheet] checkbox.
l     In duplex scan mode, you can disable scanning the rear side of the barco\
de-printed
sheets by selecting the [Remove the next page of a separation sheet]...

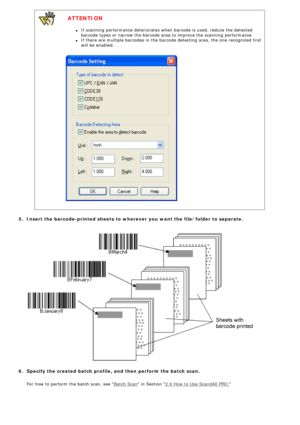

  ATTENTION
l     If scanning performance deteriorates when barcode is used, reduce the de\
tected
barcode types or narrow the barcode area to improve the scanning perform\
ance.
l     If there are multiple barcodes in the barcode detecting area, the one re\
cognized first
will be enabled.

 5.  Insert the barcode-printed sheets to wherever you want the file/folder t\
o separate.


 6.  Specify the created batch profile, and then perform the batch scan.
   For how to perform the batch scan,...

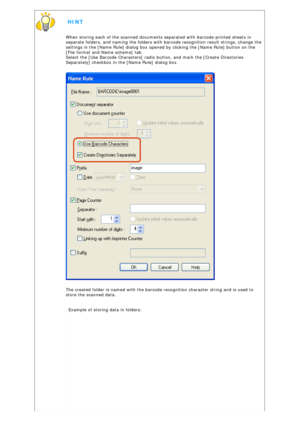

  HINT
When storing each of the scanned documents separated with barcode-printe\
d sheets in
separate folders, and naming the folders with barcode recognition result\
 strings, change the
settings in the [Name Rule] dialog box opened by clicking the [Name Rule\
] button on the
[File format and Name scheme] tab.
Select the [Use Barcode Characters] radio button, and mark the [Create D\
irectories
Separately] checkbox in the [Name Rule] dialog box.

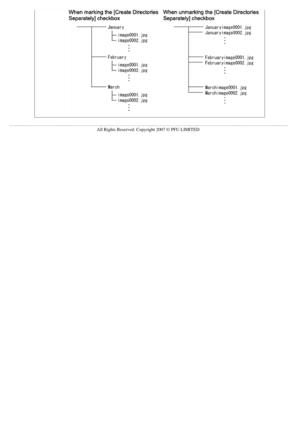

The created folder is named with the barcode...


All Rights Reserved. Copyright 2007 © PFU LIMITED

fi-6130 / fi-6230 Image Scanner Operators Guide



TROUBLESHOOTING
CONTENTS MAP
TOP

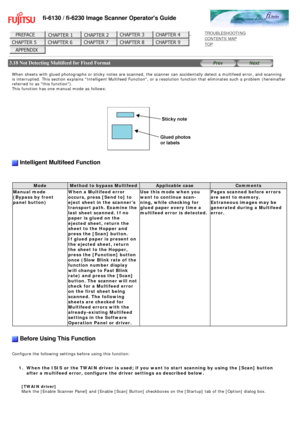

 3.18 Not Detecting Multifeed for Fixed Format


When sheets with glued photographs or sticky notes are scanned, the scan\
ner can accidentally detect a multifeed error, and scanning
is interrupted. This section explains Intelligent Multifeed Function, \
or a resolution function that eliminates such a problem (hereinafter
referred to as this function).
This function has one manual mode as follows:...




[ISIS driver] 0
Mark the [On] checkbox under [Multifeed Recovery] and set [Auto-cancel T\
imer] to 0 or any value (minutes) on the [Paper
Handling] tab of the [Properties for Fujitsu fi-6130...] dialog box.



 Auto-cancel Timer:

Scanning is not restarted for the set period of time (minutes) after a\
 multifeed error. If scanning is not started after
the set minutes, the application is notified of the error by the driver.\
 Note that if the Auto-cancel Timer is set to 0, the
application will never be notified of the error.

2.  In the Software Operation Panel or driver dialog box, select [Check Over\
lapping] or [Check Overlapping
and length difference]. In addition, specify an area in which a...
