Hitachi Cp-X807 Projector Users Manual

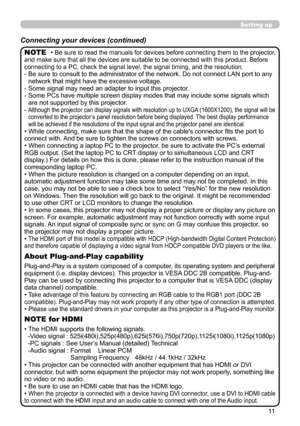

Setting up
Connecting your devices (continued)
• Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the  resolution.-  Be sure to consult to the administrator of the network. Do not connect LAN port to any network that might have the excessive voltage.- Some signal may need an adapter to input this...

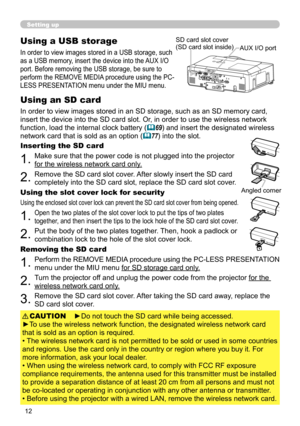

Setting up
Using a USB storage
Inserting the SD card
In order to view images stored in an SD storage, such as an SD memory card,
insert the device into the SD card slot. Or, in order to use the wireless network
function, load the internal clock battery (69) and insert the designated wireless
network card that is sold as an option (77) into the slot.
In order to view images stored in a USB storage, such
as a USB memory, insert the device into the AUX I/O
port. Before removing the USB...

3

Setting up

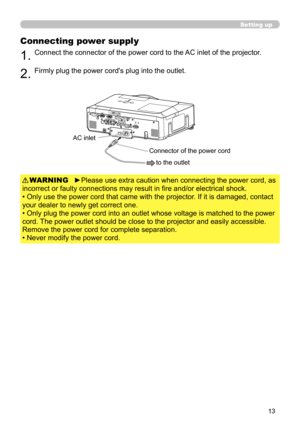

Connecting power supply
1.Connect the connector of the power cord to the AC inlet of the projector.
2.Firmly plug the power cord's plug into the outlet.
►Please use extra caution when connecting the power cord, as
incorrect or faulty connections may result in fire and/or electrical shock.
• Only use the power cord that came with the projector. If it is damaged, contact
your dealer to newly get correct one.
• Only plug the power cord into an outlet whose voltage is matched to...

4

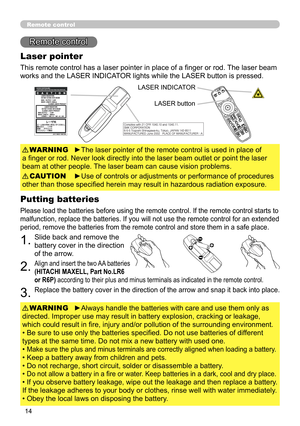

Remote control
Remote control
Laser pointer
This remote control has a laser pointer in place of a finger or rod. The laser beam
works and the LASER INDICATOR lights while the LASER button is pressed.
►The laser pointer of the remote control is used in place of
a finger or rod. Never look directly into the laser beam outlet or point the laser
beam at other people. The laser beam can cause vision problems.
WARNING
►Use of controls or adjustments or performance of procedures
other than those...

5

Approx.3 m
30º30º
30º30ºApprox.3 m
0º0ºApprox.3 m
Remote control

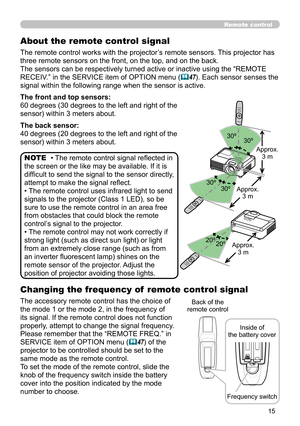

About the remote control signal
The remote control works with the projector’s remote sensors. This projector has
three remote sensors on the front, on the top, and on the back.
The sensors can be respectively turned active or inactive using the “REMOTE
RECEIV.” in the SERVICE item of OPTION menu (47). Each sensor senses the
signal within the following range when the sensor is active.
The front and top sensors:
60...

6

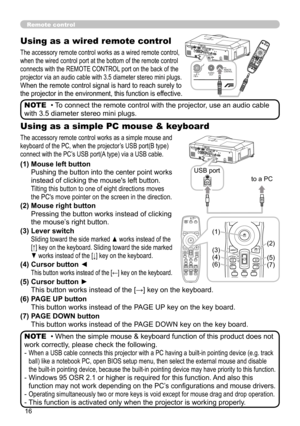

Remote control
Using as a wired remote control
The accessory remote control works as a wired remote control,
when the wired control port at the bottom of the remote control
connects with the REMOTE CONTROL port on the back of the
projector via an audio cable with 3.5 diameter stereo mini plugs.
When the remote control signal is hard to reach surely to
the projector in the environment, this function is effective.
• To connect the remote control with the projector, use an audio cable
with 3.5...

7

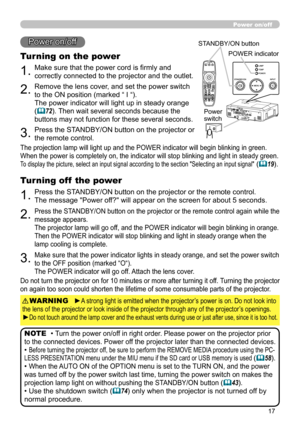

1.Make sure that the power cord is firmly and
correctly connected to the projector and the outlet.
Power on/off
Turning on the power
2.Remove the lens cover, and set the power switch
to the ON position (marked “ I “).
The power indicator will light up in steady orange
(72). Then wait several seconds because the
buttons may not function for these several seconds.
3.Press the STANDBY/ON button on the projector or
the remote control.
• Turn the power on/off in right order. Please power on...

8

             RGB 1          RGB 2          HDMI          MIU
          VIDEO  S-VIDEO  COMPONENT (Y, CB/PB, CR/PR)

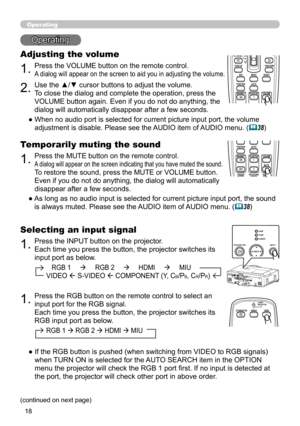

Operating
Operating
1.Press the VOLUME button on the remote control.
A dialog will appear on the screen to aid you in adjusting the volume.
Adjusting the volume
BLANKLASER
ASPECT
 ESC MENU RESET   POSITION AUTO    MAGNIFY MY BUTTON VOLUME ON 1    MUTE OFF 2 FREEZE KEYSTONE SEARCH
PUSH ENTER
 PAGE UP  PAGE DOWN
 STANDBY/ON VIDEO RGB
LASERINDICATOR
BLANKLASER
ASPECT
 ESC MENU...

9

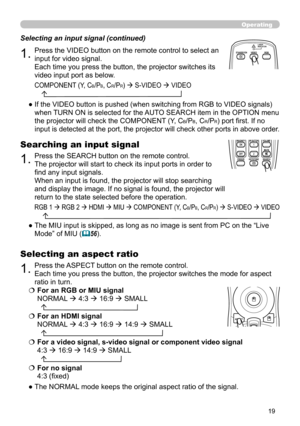

Operating
1.Press the VIDEO button on the remote control to select an
input for video signal.
Each time you press the button, the projector switches its
video input port as below.
Selecting an input signal (continued)
●  If the VIDEO button is pushed (when switching from RGB to VIDEO signals)
when TURN ON is selected for the AUTO SEARCH item in the OPTION menu
the projector will check the COMPONENT (Y, CB/PB, CR/PR) port first. If no
input is detected at the port, the projector will...

0

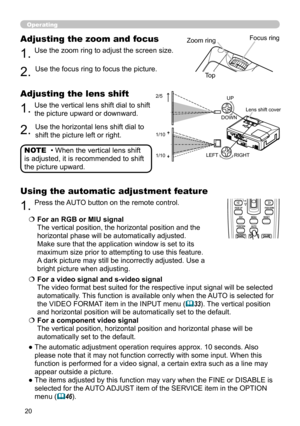

Operating
• When the vertical lens shift
is adjusted, it is recommended to shift
the picture upward.
NOTE
1.Use the zoom ring to adjust the screen size.
Adjusting the zoom and focus
2.Use the focus ring to focus the picture.
BLANKLASER
ASPECT
 ESC MENU RESET   POSITION AUTO    MAGNIFY MY BUTTON VOLUME ON 1    MUTE OFF 2 FREEZE KEYSTONE SEARCH
PUSH ENTER
 PAGE UP  PAGE DOWN
 STANDBY/ON VIDEO RGB
LASERINDICATOR
2/5
1/10
1/10
Zoom ringFocus ring
Top
1.Use the vertical lens shift dial to shift...
