Hitachi Cp-X807 Projector Users Manual

6

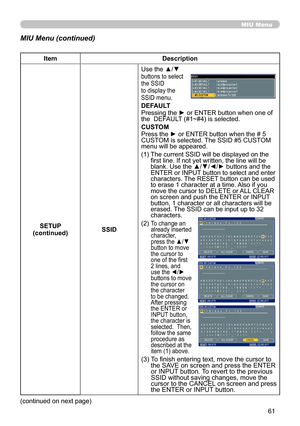

MIU Menu
MIU Menu (continued)
ItemDescription
SETUP(continued)SSID
Use the ▲/▼ buttons to select the SSID to display the SSID menu.
DEFAULTPressing the ► or ENTER button when one of the  DEFAULT (#1~#4) is selected.
CUSTOMPress the ► or ENTER button when the # 5 CUSTOM is selected. The SSID #5 CUSTOM menu will be appeared.
(1)
The current SSID will be displayed on the first line. If not yet written, the line will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and...

6

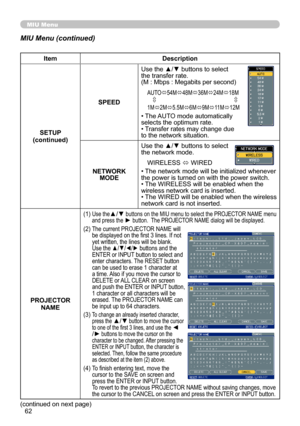

ItemDescription
SETUP(continued)
SPEED
Use the ▲/▼ buttons to select the transfer rate.(M : Mbps : Megabits per second)
AUTOó54Mó48Mó36Mó24Mó18M ô               ô
1Mó2Mó5.5Mó6Mó9Mó11Mó12M
• The AUTO mode automatically selects the optimum rate.• Transfer rates may change due to the network situation.
NETWORK MODE
Use the ▲/▼ buttons to select the network mode.
WIRELESS ó WIRED
• The network mode will be initialized whenever the power is turned on with the power switch.• The WIRELESS will be...

63

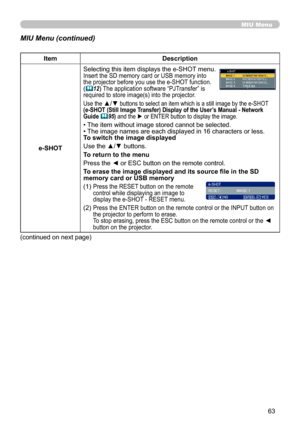

MIU Menu
MIU Menu (continued)
ItemDescription
e-SHOT
Selecting this item displays the e-SHOT menu. Insert the SD memory card or USB memory into the projector before you use the e-SHOT function. (12) The application software “PJTransfer” is required to store image(s) into the projector.
Use the ▲/▼ buttons to select an item which is a still image by the e-SHOT  (e-SHOT (Still Image Transfer) Display of the User’s Manual - Network Guide 95) and the ► or ENTER button to display the image.
• The item...

64

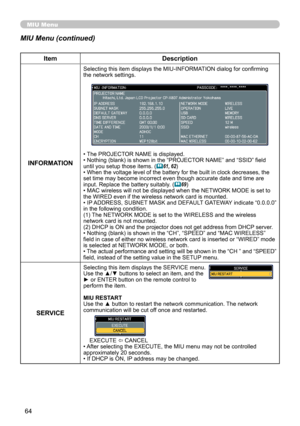

MIU Menu
MIU Menu (continued)
ItemDescription
INFORMATION
Selecting this item displays the MIU-INFORMATION dialog for confirming the network settings.
• The PROJECTOR NAME is displayed.• Nothing (blank) is shown in the “PROJECTOR NAME” and “SSID” field until you setup those items. (61, 62)• When the voltage level of the battery for the built in clock decreases, the set time may become incorrect even though accurate date and time are input. Replace the battery suitably. (69)• MAC wireless will not...

65

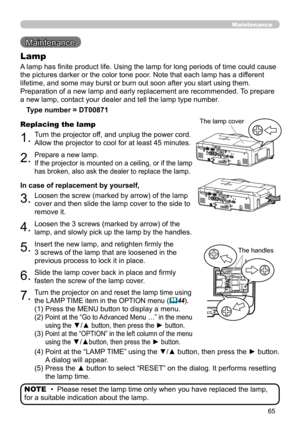

Maintenance
Maintenance
A lamp has finite product life. Using the lamp for long periods of time could cause
the pictures darker or the color tone poor. Note that each lamp has a different
lifetime, and some may burst or burn out soon after you start using them.
Preparation of a new lamp and early replacement are recommended. To prepare
a new lamp, contact your dealer and tell the lamp type number.
Lamp
Type number = DT00871
1.Turn the projector off, and unplug the power cord.
Allow the...

66

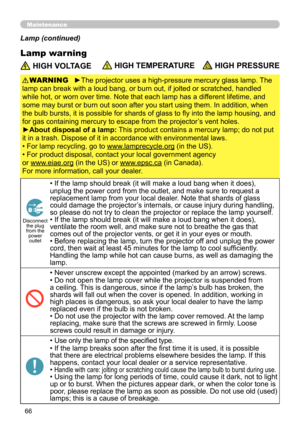

Maintenance
Lamp warning
Lamp (continued)
 HIGH VOLTAGE HIGH TEMPERATURE HIGH PRESSURE
►The projector uses a high-pressure mercury glass lamp. The
lamp can break with a loud bang, or burn out, if jolted or scratched, handled
while hot, or worn over time. Note that each lamp has a different lifetime, and
some may burst or burn out soon after you start using them. In addition, when
the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and
for gas containing mercury to...

67

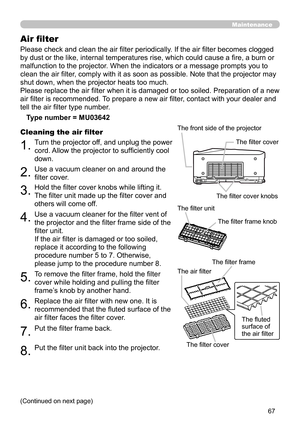

Maintenance
Please check and clean the air filter periodically. If the air filter becomes clogged
by dust or the like, internal temperatures rise, which could cause a fire, a burn or
malfunction to the projector. When the indicators or a message prompts you to
clean the air filter, comply with it as soon as possible. Note that the projector may
shut down, when the projector heats too much.
Please replace the air filter when it is damaged or too soiled. Preparation of a new
air filter is...

68

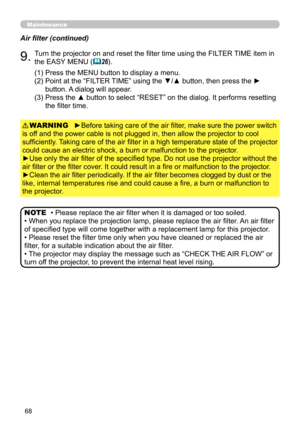

Maintenance
• Please replace the air filter when it is damaged or too soiled.
• When you replace the projection lamp, please replace the air filter. An air filter
of specified type will come together with a replacement lamp for this projector .
• Please reset the filter time only when you have cleaned or replaced the air
filter, for a suitable indication about the air filter.
• The projector may display the message such as “CHECK THE AIR FLOW” or
turn off the projector, to prevent the internal...

69

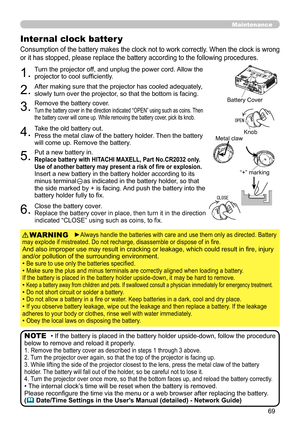

Maintenance
Consumption of the battery makes the clock not to work correctly. When the clock is wrong
or it has stopped, please replace the battery according to the following procedures.
Internal clock batter y
1.Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.
2.After making sure that the projector has cooled adequately, slowly turn over the projector, so that the bottom is facing.
3.Remove the battery cover.  Turn the battery cover in the direction...

70

Maintenance

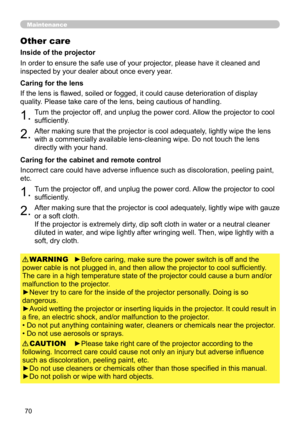

Other care
In order to ensure the safe use of your projector, please have it cleaned and
inspected by your dealer about once every year.
1.Turn the projector off, and unplug the power cord. Allow the projector to cool
sufficiently.
2.After making sure that the projector is cool adequately, lightly wipe the lens
with a commercially available lens-cleaning wipe. Do not touch the lens
directly with your hand.
If the lens is flawed, soiled or fogged, it could cause deterioration of...
