Hitachi Cp-X807 Projector Users Manual

5

OPTION Menu
ItemDescription
SECURITY(continued)

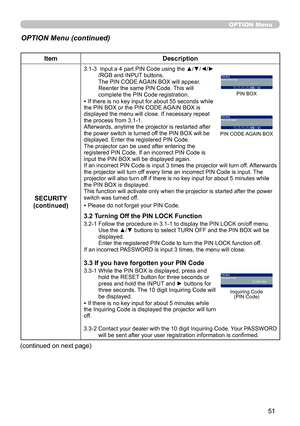

3.1-3   Input a 4 part PIN Code using the ▲/▼/◄/►/RGB and INPUT buttons. The PIN CODE AGAIN BOX will appear. Reenter the same PIN Code. This will complete the PIN Code registration.• If there is no key input for about 55 seconds while the PIN BOX or the PIN CODE AGAIN BOX is displayed the menu will close. If necessary repeat the process from 3.1-1.Afterwards, anytime the projector is restarted after the power switch is turned off the PIN BOX will...

5

OPTION Menu
ItemDescription
SECURITY(continued)

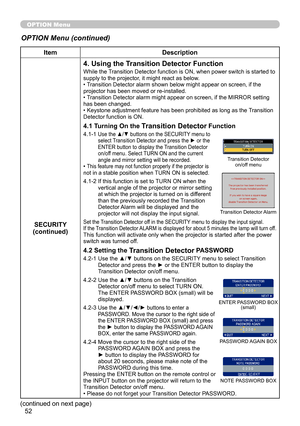

4. Using the Transition Detector Function
While the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below.• Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.• Transition Detector alarm might appear on screen, if the MIRROR setting has been changed.• Keystone adjustment feature has been prohibited as long as the Transition...

53

OPTION Menu
ItemDescription
SECURITY(continued)

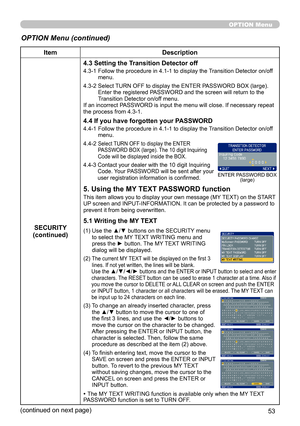

4.3 Setting the Transition Detector off
4.3-1  Follow the procedure in 4.1-1 to display the Transition Detector on/off menu.
4.3-2  Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the Transition Detector on/off menu.If an incorrect PASSWORD is input the menu will close. If necessary repeat the process from 4.3-1.
4.4 If you have forgotten your PASSWORD
4.4-1  Follow the procedure in...

54

ItemDescription
SECURITY(continued)

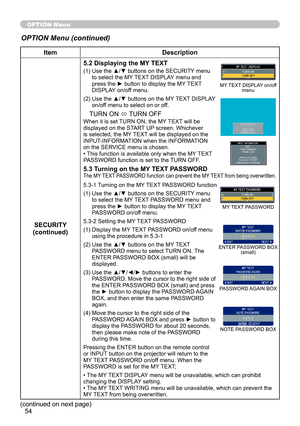

5.2 Displaying the MY TEXT
(1)  Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY menu and press the ► button to display the MY TEXT DISPLAY on/off menu.
(2)  Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select on or off.
TURN ON ó TURN OFF
When it is set TURN ON, the MY TEXT will be displayed on the START UP screen. Whichever is selected, the MY TEXT will be displayed on the INPUT-INFORMATION when the INFORMATION on the SERVICE...

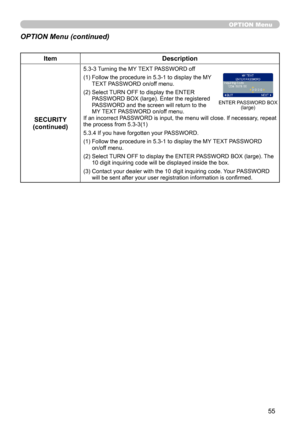

55

OPTION Menu
ItemDescription
SECURITY(continued)
5.3-3
Turning the MY TEXT PASSWORD off
(1)  Follow the procedure in 5.3-1 to display the MY TEXT PASSWORD on/off menu.
(2)  Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the MY TEXT PASSWORD on/off menu. If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 5.3-3(1)
5.3.4 If you have forgotten your PASSWORD.
(1)  Follow the procedure in...

56

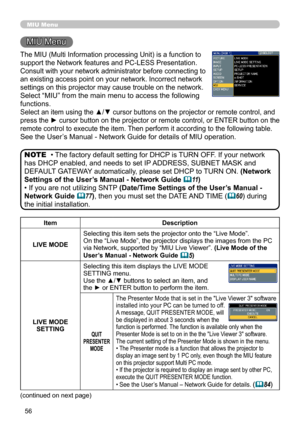

The MIU (Multi Information processing Unit) is a function to
support the Network features and PC-LESS Presentation.
Consult with your network administrator before connecting to
an existing access point on your network. Incorrect network
settings on this projector may cause trouble on the network.
Select “MIU” from the main menu to access the following
functions.
Select an item using the ▲/▼ cursor buttons on the projector or remote control, and
press the ► cursor button on the projector or...

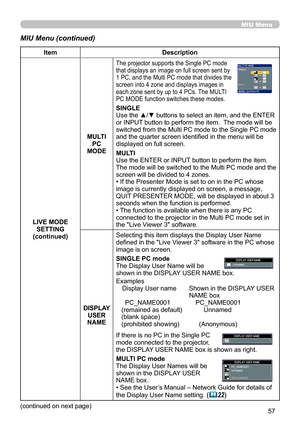

57

MIU Menu
(continued on next page)
MIU Menu (continued)
ItemDescription
LIVE MODE SETTING(continued)
MULTI PC MODE
The projector supports the Single PC mode  that displays an image on full screen sent by  1 PC, and the Multi PC mode that divides the  screen into 4 zone and displays images in  each zone sent by up to 4 PCs. The MULTI  PC MODE function switches these modes.
SINGLEUse the ▲/▼ buttons to select an item, and the ENTER or INPUT button to perform the item.  The mode will be switched from...

58

MIU Menu
MIU Menu (continued)
ItemDescription

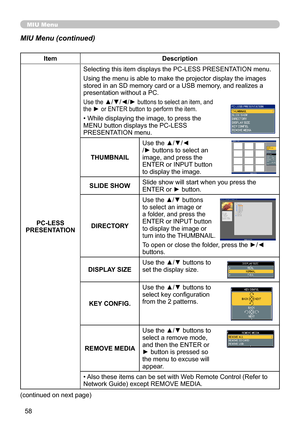

PC-LESS PRESENTATION
Selecting this item displays the PC-LESS PRESENTATION menu.
Using the menu is able to make the projector display the images stored in an SD memory card or a USB memory, and realizes a presentation without a PC.
Use the ▲/▼/◄/► buttons to select an item, and  the ► or ENTER button to perform the item.
• While displaying the image, to press the  MENU button displays the PC-LESS  PRESENTATION menu.
THUMBNAIL
Use the ▲/▼/◄/► buttons to...

59

MIU Menu
MIU Menu (continued)
ItemDescription

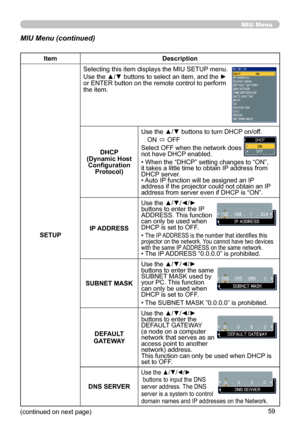

SETUP
Selecting this item displays the MIU SETUP menu.
Use the ▲/▼ buttons to select an item, and the ► or ENTER button on the remote control to perform the item.
DHCP (Dynamic Host Configuration Protocol)
Use the ▲/▼ buttons to turn DHCP on/off.
ON ó OFF
Select OFF when the network does  not have DHCP enabled.
• When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.• Auto IP function will be assigned an IP...

60

MIU Menu
MIU Menu (continued)
ItemDescription
SETUP(continued)

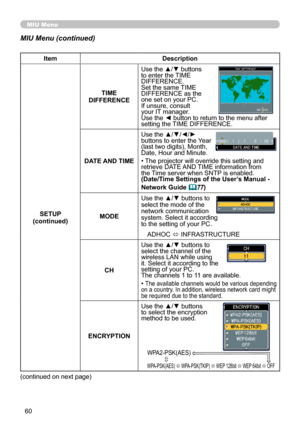

TIME DIFFERENCE
Use the ▲/▼ buttons to enter the TIME DIFFERENCE. Set the same TIME DIFFERENCE as the one set on your PC. If unsure, consult your IT manager. Use the ◄ button to return to the menu after setting the TIME DIFFERENCE.
DATE AND TIME
Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.
• The projector will override this setting and retrieve DATE AND TIME information from the Time server...
