Honda Pilot Owners Manual

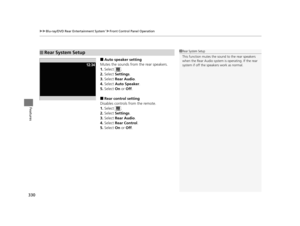

uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
330
Features
■Auto speaker setting
Mutes the sounds from the rear speakers.
1. Select .
2. Select  Settings .
3. Select  Rear Audio .
4. Select  Auto Speaker .
5. Select  On or  Off .
■Rear control setting
Disables controls from the remote.
1. Select .
2. Select  Settings .
3. Select  Rear Audio .
4. Select  Rear Control .
5. Select  On or  Off .
■Rear System Setup1Rear System Setup
This function mutes the sound to the rear speakers...

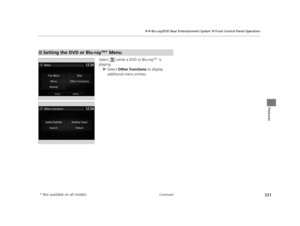

331
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Continued
Features
Select   while a DVD or Blu-rayTM * is
playing.
u Select  Other Functions to display
additional menu entries.
■Setting the DVD or Blu-rayTM* Menu
* Not available on all models
16 PILOT-31TG76000.book  331 ページ  ２０１６年１０月１９日　水曜日　午後５時４分

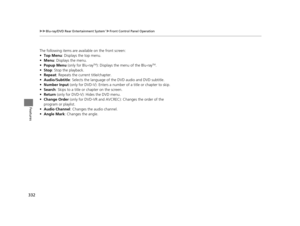

332
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Features
The following items are avai lable on the front screen:
• Top Menu : Displays the top menu.
• Menu : Displays the menu.
• Popup Menu  (only for Blu-ray
TM): Displays the menu of the Blu-rayTM.
• Stop : Stop the playback.
• Repeat: Repeats the current title/chapter.
• Audio/Subtitle : Selects the language of the DVD audio and DVD subtitle.
• Number Input  (only for DVD-V): Enters a number  of a title or chapter to skip.
•...

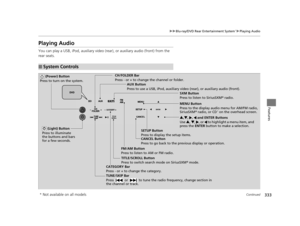

333
uuBlu-ray/DVD Rear Entertainment System*uPlaying Audio
Continued
Features
Playing Audio
You can play a USB, iPod, auxiliary video  (rear), or auxiliary audio (front) from the
rear seats.
■System Controls
 (Power) Button
Press to turn on the system.CH/FOLDER Bar
Press - or + to change the channel or folder.
 (Light) Button
Press to illuminate
the buttons and bars
for a few seconds.
TUNE/SKIP Bar
Press   or   to tune the radi o frequency, change section in
the channel or track.
TITLE/SCROLL Button...

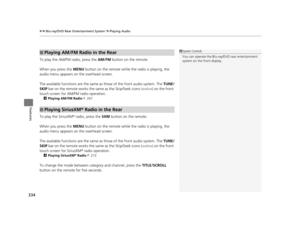

uuBlu-ray/DVD Rear Entertainment System*uPlaying Audio
334
Features
To play the AM/FM radio, press the  AM/FM button on the remote.
When you press the  MENU button on the remote while  the radio is playing, the
audio menu appears on the overhead screen.
The available functions are the same as  those of the front audio system. The  TUNE/
SKIP  bar on the remote works the same as  the Skip/Seek icons () on the front
touch screen for AM/FM radio operation.
2 Playing AM/FM Radio  P. 267
To play the...

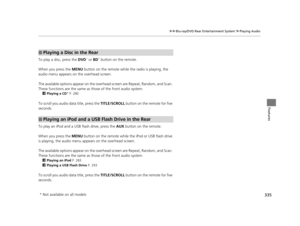

335
uuBlu-ray/DVD Rear Entertainment System*uPlaying Audio
Features
To play a disc, press the  DVD* or BD* button on the remote.
When you press the  MENU button on the remote while  the radio is playing, the
audio menu appears on the overhead screen.
The available options appear on the overh ead screen are Repeat, Random, and Scan.
These functions are the same as those of the front audio system.
2 Playing a CD* P. 280
To scroll you audio da ta title, press the TITLE/SCROLL button on the remote for five...

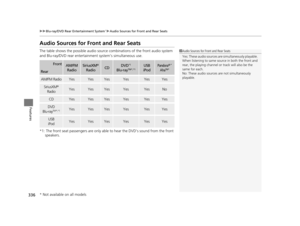

336
uuBlu-ray/DVD Rear Entertainment System*uAudio Sources for Front and Rear Seats
Features
Audio Sources for Front and Rear Seats
The table shows the possible audio source combinations of the front audio system
and Blu-ray/DVD rear entertainme nt system’s simultaneous use.
*1: The front seat passengers are only able to hear the DVD’s sound from the front  speakers.
FrontAM/FM
RadioSiriusXM ®
RadioCDDVD*1
Blu-rayTM*,*1USB
iPodPandora®*
AhaTM*Rear
AM/FM RadioYesYesYesYesYesYes
SiriusXM ®...

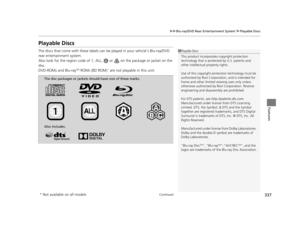

337
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Continued
Features
Playable Discs
The discs that come with these labels can  be played in your vehicle’s Blu-ray/DVD
rear entertainment system.
Also look for the region code of 1, ALL,    or   on the package or jacket on the
disc.
DVD-ROMs and Blu-ray
TM ROMs (BD ROM)* are not playable in this unit.
1 Playable Discs
This product incorporates copyright protection
technology that is protec ted by U.S. patents and
other intellectual  property...

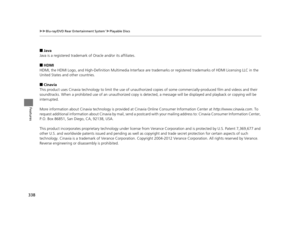

338
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features
■Java
Java is a registered trademark of Oracle and/or its affiliates.
■HDMI
HDMI, the HDMI Logo, and High-Definition Multimedia Interface ar e trademarks or registered trademarks of HDMI Licensing LLC in  the
United States and other countries.
■Cinavia
This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and  their
soundtracks. When a prohibited use of an...

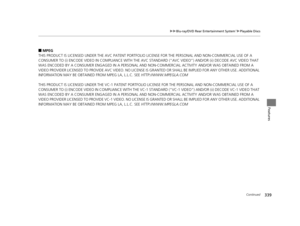

339
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Continued
Features
■MPEG
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOL IO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AV C STANDARD (“AVC VIDEO”) AND/OR (ii) DECODE AVC VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A
VIDEO PROVIDER LICENSED TO PROVIDE AVC  VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR...
