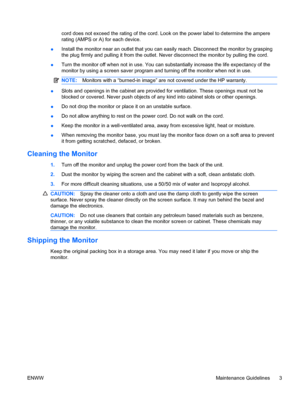

cord does not exceed the rating of the cord. Look on the power label to determine the ampere
rating (AMPS or A) for each device.
●Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping
the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
●Turn the monitor off when not in use. You can substantially increase the life expectancy of the
monitor by using a screen saver program and turning off the monitor when not in use....

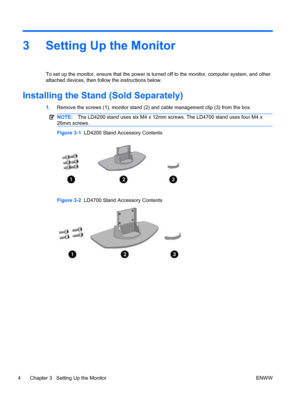

3 Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
Installing the Stand (Sold Separately)
1.Remove the screws (1), monitor stand (2) and cable management clip (3) from the box.
NOTE:The LD4200 stand uses six M4 x 12mm screws. The LD4700 stand uses four M4 x
26mm screws.
Figure 3-1  LD4200 Stand Accessory Contents
Figure 3-2  LD4700 Stand Accessory Contents
4 Chapter 3...

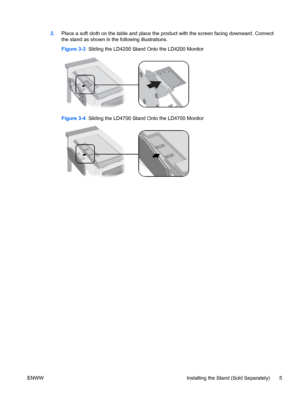

2.Place a soft cloth on the table and place the product with the screen facing downward. Connect
the stand as shown in the following illustrations.
Figure 3-3  Sliding the LD4200 Stand Onto the LD4200 Monitor
Figure 3-4  Sliding the LD4700 Stand Onto the LD4700 Monitor
ENWW Installing the Stand (Sold Separately) 5

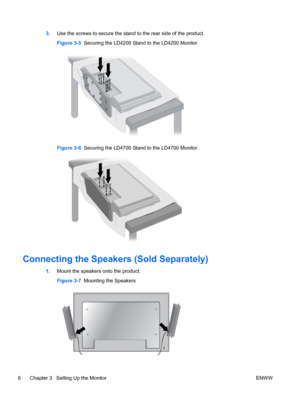

3.Use the screws to secure the stand to the rear side of the product.
Figure 3-5  Securing the LD4200 Stand to the LD4200 Monitor
Figure 3-6  Securing the LD4700 Stand to the LD4700 Monitor
Connecting the Speakers (Sold Separately)
1.Mount the speakers onto the product.
Figure 3-7  Mounting the Speakers
6 Chapter 3   Setting Up the Monitor ENWW

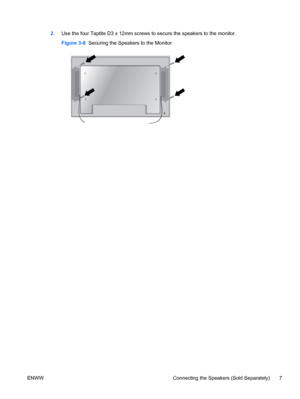

2.Use the four Taptite D3 x 12mm screws to secure the speakers to the monitor.
Figure 3-8  Securing the Speakers to the Monitor
ENWW Connecting the Speakers (Sold Separately) 7

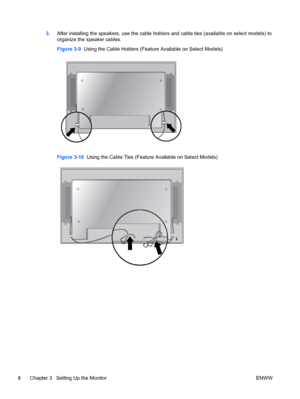

3.After installing the speakers, use the cable holders and cable ties (available on select models) to
organize the speaker cables.
Figure 3-9  Using the Cable Holders (Feature Available on Select Models)
Figure 3-10  Using the Cable Ties (Feature Available on Select Models)
8 Chapter 3   Setting Up the Monitor ENWW

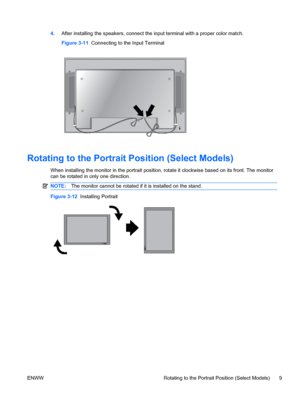

4.After installing the speakers, connect the input terminal with a proper color match.
Figure 3-11  Connecting to the Input Terminal
Rotating to the Portrait Position (Select Models)
When installing the monitor in the portrait position, rotate it clockwise based on its front. The monitor
can be rotated in only one direction.
NOTE:The monitor cannot be rotated if it is installed on the stand.
Figure 3-12  Installing Portrait
ENWW Rotating to the Portrait Position (Select Models) 9

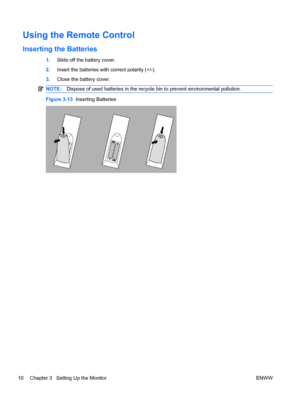

Using the Remote Control
Inserting the Batteries
1.Slide off the battery cover.
2.Insert the batteries with correct polarity (+/-).
3.Close the battery cover.
NOTE:Dispose of used batteries in the recycle bin to prevent environmental pollution.
Figure 3-13  Inserting Batteries
10 Chapter 3   Setting Up the Monitor ENWW

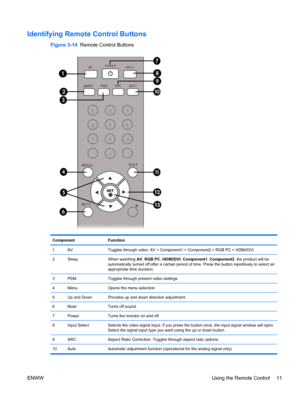

Identifying Remote Control Buttons
Figure 3-14  Remote Control Buttons
Component Function
1 AV Toggles through video: AV > Component1 > Component2 > RGB PC > HDMI/DVI.
2 Sleep When watching AV, RGB PC, HDMI/DVI, Component1, Component2, the product will be
automatically turned off after a certain period of time. Press the button repetitively to select an
appropriate time duration.
3 PSM Toggles through present video settings.
4 Menu Opens the menu selection.
5 Up and Down Provides up and down direction...

Component Function
11 Exit Exits the menu.
12 Volume Adjusts the sound up and down.
13 Set (Check) Press to select a menu item or save changes.

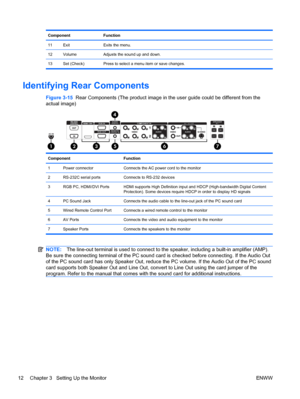

Identifying Rear Components
Figure 3-15  Rear Components (The product image in the user guide could be different from the
actual image)
Component Function
1 Power connector Connects the AC power cord to the monitor
2 RS-232C serial ports Connects to RS-232 devices
3 RGB PC, HDMI/DVI Ports HDMI supports High Definition input and HDCP (High-bandwidth Digital...
