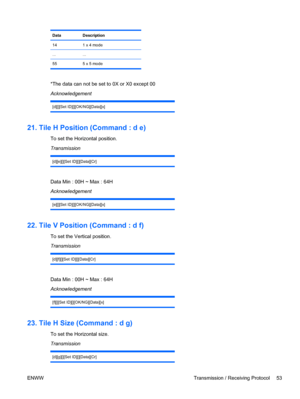

Page 61

Data Description
14 1 x 4 mode
... ...
55 5 x 5 mode
*The data can not be set to 0X or X0 except 00
Acknowledgement
[d][][Set ID][][OK/NG][Data][x]
21. Tile H Position (Command : d e)
To set the Horizontal position.
Transmission
[d][e][][Set ID][][Data][Cr]
Data Min : 00H ~ Max : 64H
Acknowledgement
[e][][Set ID][][OK/NG][Data][x]
22. Tile V Position (Command : d f)
To set the Vertical position.
Transmission
[d][f][][Set ID][][Data][Cr]
Data Min : 00H ~ Max : 64H
Acknowledgement
[f][][Set...

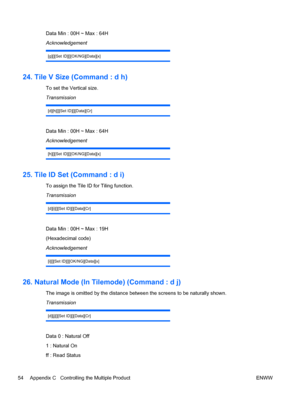

Page 62

Data Min : 00H ~ Max : 64H
Acknowledgement
[g][][Set ID][][OK/NG][Data][x]
24. Tile V Size (Command : d h)
To set the Vertical size.
Transmission
[d][h][][Set ID][][Data][Cr]
Data Min : 00H ~ Max : 64H
Acknowledgement
[h][][Set ID][][OK/NG][Data][x]
25. Tile ID Set (Command : d i)
To assign the Tile ID for Tiling function.
Transmission
[d][i][][Set ID][][Data][Cr]
Data Min : 00H ~ Max : 19H
(Hexadecimal code)
Acknowledgement
[i][][Set ID][][OK/NG][Data][x]
26. Natural Mode (In Tilemode) (Command : d j)...

Page 63

Acknowledgement
[j][][Set ID][][OK/NG][Data][x]
27. Elapsed time return (Command : d l)
To read the elapsed time.
Transmission
[d][l][][Set ID][][Data][Cr]
* The data is always FF(in Hex).
Acknowledgement
[l][][Set ID][][OK/NG][Data][x]
* The data means used hours. (Hexadecimal code)
28. Temperature value (Command : d n)
To read the inside temperature value.
Transmission
[d][n][][Set ID][][Data][Cr]
* The data is always FF(in Hex).
Acknowledgement
[n][][Set ID][][OK/NG][Data][x]
* The data is 1 byte long...

Page 64

[p][][Set ID][][OK/NG][Data][x]
Data 0 : Lamp Fault
1 : Lamp OK
30. Auto volume (Command : d u)
Automatically adjust the volume level.
Transmission
[d][u][][Set ID][][Data][Cr]
Data 0 : Off
1 : On
Acknowledgement
[u][][Set ID][][OK/NG][Data][x]
31. Speaker (Command : d v)
Turn the speaker on or off.
Transmission
[d][v][][Set ID][][Data][Cr]
Data 0 : Off
1 : On
Acknowledgement
[v][][Set ID][][OK/NG][Data][x]
32. Time (Command : f a)
Set the current time.
Transmission
[f][a][][Set...

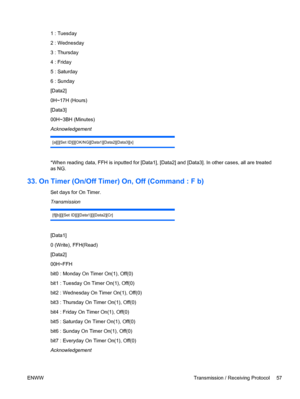

Page 65

1 : Tuesday
2 : Wednesday
3 : Thursday
4 : Friday
5 : Saturday
6 : Sunday
[Data2]
0H~17H (Hours)
[Data3]
00H~3BH (Minutes)
Acknowledgement
[a][][Set ID][][OK/NG][Data1][Data2][Data3][x]
*When reading data, FFH is inputted for [Data1], [Data2] and [Data3]. In other cases, all are treated
as NG.
33. On Timer (On/Off Timer) On, Off (Command : F b)
Set days for On Timer.
Transmission
[f][b][][Set ID][][Data1][][Data2][Cr]
[Data1]
0 (Write), FFH(Read)
[Data2]
00H~FFH
bit0 : Monday On Timer On(1), Off(0)
bit1...

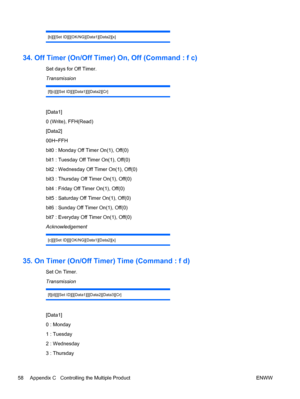

Page 66

[b][][Set ID][][OK/NG][Data1][Data2][x]
34. Off Timer (On/Off Timer) On, Off (Command : f c)
Set days for Off Timer.
Transmission
[f][c][][Set ID][][Data1][][Data2][Cr]
[Data1]
0 (Write), FFH(Read)
[Data2]
00H~FFH
bit0 : Monday Off Timer On(1), Off(0)
bit1 : Tuesday Off Timer On(1), Off(0)
bit2 : Wednesday Off Timer On(1), Off(0)
bit3 : Thursday Off Timer On(1), Off(0)
bit4 : Friday Off Timer On(1), Off(0)
bit5 : Saturday Off Timer On(1), Off(0)
bit6 : Sunday Off Timer On(1), Off(0)
bit7 : Everyday Off...

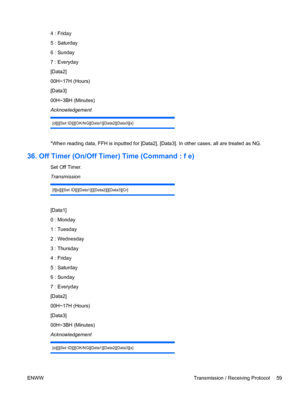

Page 67

4 : Friday
5 : Saturday
6 : Sunday
7 : Everyday
[Data2]
00H~17H (Hours)
[Data3]
00H~3BH (Minutes)
Acknowledgement
[d][][Set ID][][OK/NG][Data1][Data2][Data3][x]
*When reading data, FFH is inputted for [Data2], [Data3]. In other cases, all are treated as NG.
36. Off Timer (On/Off Timer) Time (Command : f e)
Set Off Timer.
Transmission
[f][e][][Set ID][][Data1][][Data2][][Data3][Cr]
[Data1]
0 : Monday
1 : Tuesday
2 : Wednesday
3 : Thursday
4 : Friday
5 : Saturday
6 : Sunday
7 : Everyday
[Data2]
00H~17H...

Page 68

* When reading data, FFH is inputted for [Data2], [Data3]. In other cases, all are treated as NG.
37. Sleep Time (Command : f f)
Set Sleep Time.
Transmission
[f][f][][Set ID][][Data][Cr]
Data
0 : Off
1 : 10
2 : 20
3 : 30
4 : 60
5 : 90
6 : 120
7 : 180
8 : 240
(Orderly)
Acknowledgement
[f][][Set ID][][OK/NG][Data][x]
38. Auto Sleep (Command : f g)
Set Auto Sleep.
Transmission
[f][g][][Set ID][][Data][Cr]
Data 0 : Off
1 : On
Acknowledgement
[g][][Set ID][][OK/NG][Data][x]
39. Power On Delay (Command : f h)...

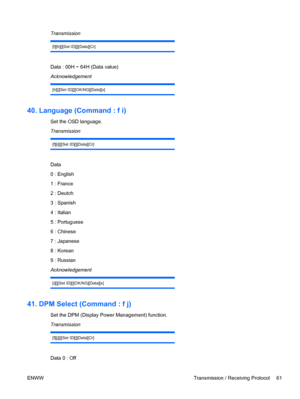

Page 69

Transmission
[f][h][][Set ID][][Data][Cr]
Data : 00H ~ 64H (Data value)
Acknowledgement
[h][][Set ID][][OK/NG][Data][x]
40. Language (Command : f i)
Set the OSD language.
Transmission
[f][i][][Set ID][][Data][Cr]
Data
0 : English
1 : France
2 : Deutch
3 : Spanish
4 : Italian
5 : Portuguese
6 : Chinese
7 : Japanese
8 : Korean
9 : Russian
Acknowledgement
[i][][Set ID][][OK/NG][Data][x]
41. DPM Select (Command : f j)
Set the DPM (Display Power Management) function.
Transmission
[f][j][][Set ID][][Data][Cr]...

Page 70

1 : On
Acknowledgement
[j][][Set ID][][OK/NG][Data][x]
42. Reset (Command : f k)
Execute the Picture, Screen and Factory Reset functions.
Transmission
[f][k][][Set ID][][Data][Cr]
Data
0 : Picture Reset
1 : Screen Reset
2 : Factory Reset
Acknowledgement
[k][][Set ID][][OK/NG][Data][x]
43. S/W Version (Command : f z)
Check the software version.
Transmission
[f][z][][Set ID][][Data][Cr]
Data FFH : Read
Acknowledgement
[z][][Set ID][][OK/NG][Data][x]
44. Input Select (Command : x b)
To select input source...
