HP Ld4700 User Guide

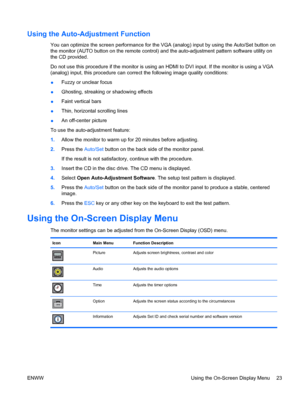

Using the Auto-Adjustment Function
You can optimize the screen performance for the VGA (analog) input by using the Auto/Set button on
the monitor (AUTO button on the remote control) and the auto-adjustment pattern software utility on
the CD provided.
Do not use this procedure if the monitor is using an HDMI to DVI input. If the monitor is using a VGA
(analog) input, this procedure can correct the following image quality conditions:
●Fuzzy or unclear focus
●Ghosting, streaking or shadowing effects
●Faint...

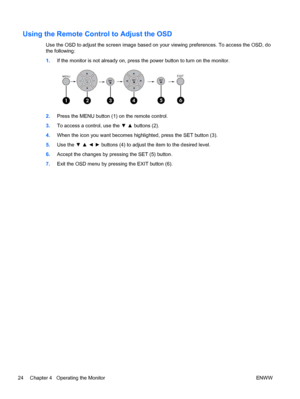

Using the Remote Control to Adjust the OSD
Use the OSD to adjust the screen image based on your viewing preferences. To access the OSD, do
the following:
1.If the monitor is not already on, press the power button to turn on the monitor.
2.Press the MENU button (1) on the remote control.
3.To access a control, use the ▼ ▲ buttons (2).
4.When the icon you want becomes highlighted, press the SET button (3).
5.Use the ▼ ▲ ◄ ► buttons (4) to adjust the item to the desired level.
6.Accept the changes by...

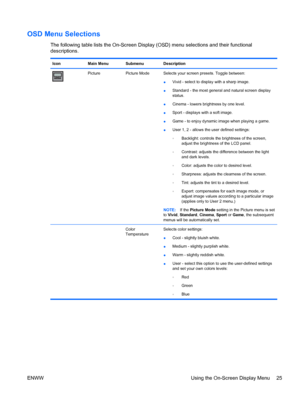

OSD Menu Selections
The following table lists the On-Screen Display (OSD) menu selections and their functional
descriptions.

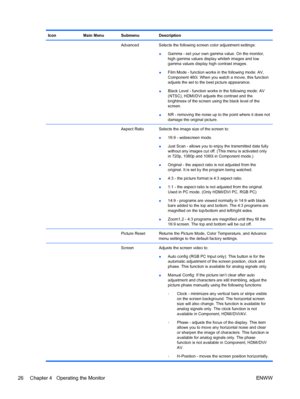

Icon Main Menu Submenu Description
Picture Picture Mode Selects your screen presets. Toggle between:
●Vivid - select to display with a sharp image.
●Standard - the most general and natural screen display
status.
●Cinema - lowers brightness by one level.
●Sport - displays with a soft image.
●Game - to enjoy dynamic image when playing a game.
●User 1, 2 - allows the user defined...

Icon Main Menu Submenu Description
    Advanced Selects the following screen color adjustment settings:
●Gamma - set your own gamma value. On the monitor,
high gamma values display whitish images and low
gamma values display high contrast images.
●Film Mode - function works in the following mode: AV,
Component 480i. When you watch a movie, this function
adjusts the set to the best picture appearance.
●Black Level - function works in the following mode: AV
(NTSC), HDMI/DVI adjusts the contrast and the...

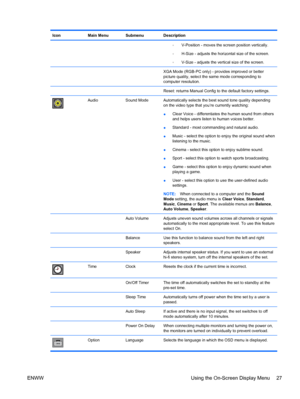

Icon Main Menu Submenu Description
◦V-Position - moves the screen position vertically.
◦H-Size - adjusts the horizontal size of the screen.
◦V-Size - adjusts the vertical size of the screen.
      XGA Mode (RGB-PC only) - provides improved or better
picture quality, select the same mode corresponding to
computer resolution.
      Reset: returns Manual Config to the default factory settings.
Audio Sound Mode Automatically selects the best sound tone quality depending
on the video type that you’re...

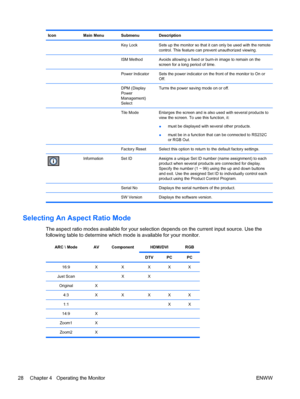

Icon Main Menu Submenu Description
    Key Lock Sets up the monitor so that it can only be used with the remote
control. This feature can prevent unauthorized viewing.
    ISM Method Avoids allowing a fixed or burn-in image to remain on the
screen for a long period of time.
    Power Indicator Sets the power indicator on the front of the monitor to On or
Off.
   DPM (Display
Power
Management)
SelectTurns the power saving mode on or off.
    Tile Mode Enlarges the screen and is also used with several...

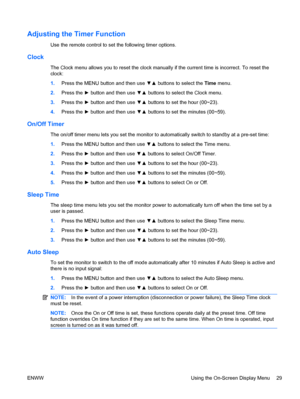

Adjusting the Timer Function
Use the remote control to set the following timer options.
Clock
The Clock menu allows you to reset the clock manually if the current time is incorrect. To reset the
clock:
1.Press the MENU button and then use ▼▲ buttons to select the Time menu.
2.Press the ► button and then use ▼▲ buttons to select the Clock menu.
3.Press the ► button and then use ▼▲ buttons to set the hour (00~23).
4.Press the ► button and then use ▼▲ buttons to set the minutes (00~59).
On/Off Timer
The...

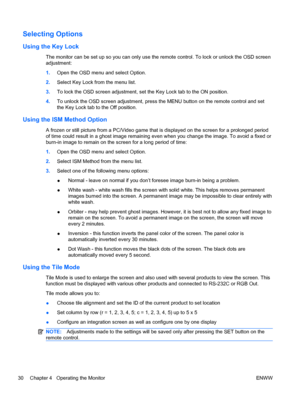

Selecting Options
Using the Key Lock
The monitor can be set up so you can only use the remote control. To lock or unlock the OSD screen
adjustment:
1.Open the OSD menu and select Option.
2.Select Key Lock from the menu list.
3.To lock the OSD screen adjustment, set the Key Lock tab to the ON position.
4.To unlock the OSD screen adjustment, press the MENU button on the remote control and set
the Key Lock tab to the Off position.
Using the ISM Method Option
A frozen or still picture from a PC/Video game...

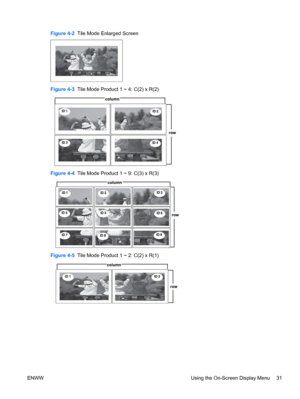

Figure 4-2  Tile Mode Enlarged Screen
Figure 4-3  Tile Mode Product 1 ~ 4: C(2) x R(2)
Figure 4-4  Tile Mode Product 1 ~ 9: C(3) x R(3)
Figure 4-5  Tile Mode Product 1 ~ 2: C(2) x R(1)
ENWW Using the On-Screen Display Menu 31

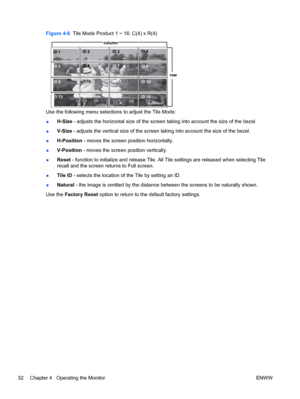

Figure 4-6  Tile Mode Product 1 ~ 16: C(4) x R(4)
Use the following menu selections to adjust the Tile Mode:
●H-Size - adjusts the horizontal size of the screen taking into account the size of the bezel.
●V-Size - adjusts the vertical size of the screen taking into account the size of the bezel.
●H-Position - moves the screen position horizontally.
●V-Position - moves the screen position vertically.
●Reset - function to initialize and release Tile. All Tile settings are released when selecting Tile...
