HP Slate 6 Service Manual

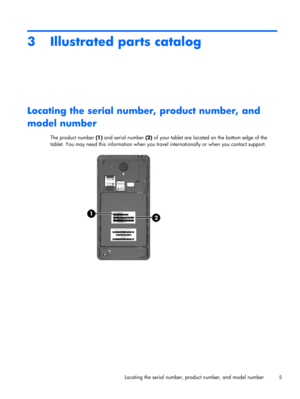

3 Illustrated parts catalog
Locating the serial number, product number, and
model number
The product number (1) and serial number (2) of your tablet are located on the bottom edge of the
tablet. You may need this information when you travel internationally or when you contact support.
Locating the serial number, product number, and model number
5

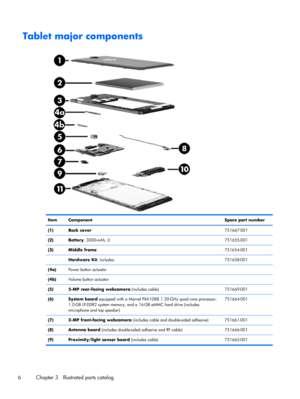

Tablet major components
Item ComponentSpare part number
(1) Back cover751667-001
(2) Battery, 3000-mAh, LI 751655-001
(3) Middle frame751654-001
 Hardware Kit, includes: 751658-001
(4a)Power button actuator
(4b)Volume button actuator
(5) 5-MP rear-facing webcamera (includes cable) 751669-001
(6) System board equipped with a Marvel PXA1088 1.20-GHz quad core processor,
1.0-GB LP-DDR2 system memory, and a 16-GB eMMC hard drive (includes
microphone and top speaker)751664-001
(7) 2-MP front-facing webcamera...

Item ComponentSpare part number
(10) Bottom speaker/vibrator module assembly (includes bottom speaker cables,
bottom speaker mount, and double-sided adhesive)751668-001
(11) Display panel assembly, 6.0-in, LCD, TouchScreen (includes display panel cable,
TouchScreen cable, and bottom speaker/vibrator module assembly cable)751674-001
Miscellaneous parts
ComponentSpare part number
AC adapter:
10-W AC adapter with plug for use only in Europe and South Korea 744423-009
10-W AC adapter with plug for use only...

Spare part number Description
751664-001 System board equipped with a Marvel PXA1088 1.20-GHz quad core processor, 1.0-GB LP-DDR2
system memory, and a 16-GB eMMC hard drive (includes microphone and top speaker)
751665-001 Proximity/light sensor board (includes cable)
751666-001 Antenna board (includes double-sided adhesive and RF cable)
751667-001 Back cover
751668-001 Bottom speaker/vibrator module assembly (includes bottom speaker cables, bottom speaker mount,
and double-sided adhesive)
751669-001 5-MP...

4 Removal and replacement
preliminary requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Magnetic screw driver
●
Phillips P0 screw driver
●
Plastic case utility tool
Service considerations
The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.
NOTE:As you remove each subassembly from the tablet, place the subassembly (and all
accompanying screws) away from the work...

Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is...

Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when...

Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps
with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground,
wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors,
use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor...

5 Removal and replacement
procedures
Tablet component replacement procedures
CAUTION:Tablet components described in this chapter should only be accessed by an authorized
service provider. Accessing these parts can damage the tablet and void the warranty.
This chapter provides removal and replacement procedures for authorized service provider only parts.
There are as many as 15 screws that must be removed, replaced, and/or loosened when servicing the
tablet. Make special note of each screw size and...

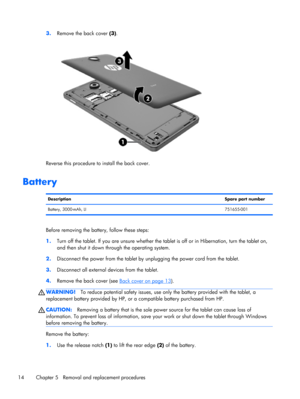

3.
Remove the back cover (3).
Reverse this procedure to install the back cover.
Battery
DescriptionSpare part number
Battery, 3000-mAh, LI751655-001
Before removing the battery, follow these steps:
1.Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2.Disconnect the power from the tablet by unplugging the power cord from the tablet.
3.Disconnect all external devices from the tablet.
4.Remove the back...
