Page 21

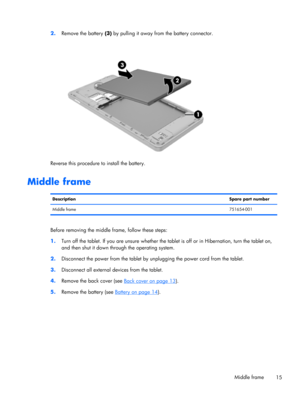

2. Remove the battery (3) by pulling it away from the battery connector. Reverse this procedure to install the battery. Middle frame DescriptionSpare part number Middle frame751654-001 Before removing the middle frame, follow these steps: 1.Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. 2.Disconnect the power from the tablet by unplugging the power cord from the tablet. 3.Disconnect all external...

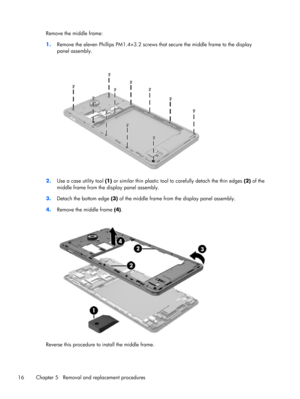

Page 22
Remove the middle frame: 1.Remove the eleven Phillips PM1.4×3.2 screws that secure the middle frame to the display panel assembly. 2.Use a case utility tool (1) or similar thin plastic tool to carefully detach the thin edges (2) of the middle frame from the display panel assembly. 3.Detach the bottom edge (3) of the middle frame from the display panel assembly. 4.Remove the middle frame (4). Reverse this procedure to install the middle frame. 16 Chapter 5 Removal and replacement procedures

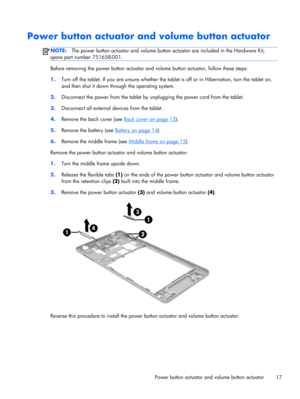

Page 23
Power button actuator and volume button actuator NOTE:The power button actuator and volume button actuator are included in the Hardware Kit, spare part number 751658-001. Before removing the power button actuator and volume button actuator, follow these steps: 1.Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. 2.Disconnect the power from the tablet by unplugging the power cord from the tablet....

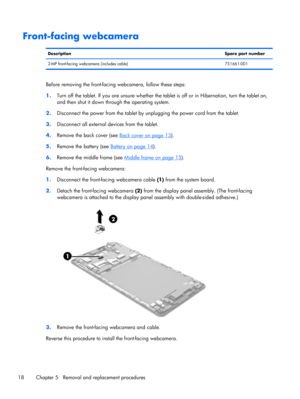

Page 24
Front-facing webcamera DescriptionSpare part number 2-MP front-facing webcamera (includes cable) 751661-001 Before removing the front-facing webcamera, follow these steps: 1.Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. 2.Disconnect the power from the tablet by unplugging the power cord from the tablet. 3.Disconnect all external devices from the tablet. 4.Remove the back cover (see Back cover on...

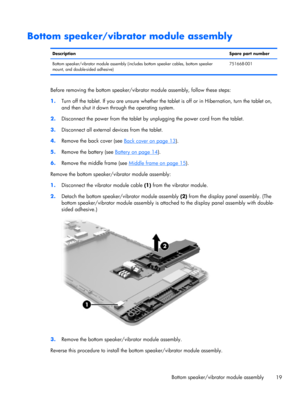

Page 25
Bottom speaker/vibrator module assembly DescriptionSpare part number Bottom speaker/vibrator module assembly (includes bottom speaker cables, bottom speaker mount, and double-sided adhesive)751668-001 Before removing the bottom speaker/vibrator module assembly, follow these steps: 1.Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. 2.Disconnect the power from the tablet by unplugging the power cord...

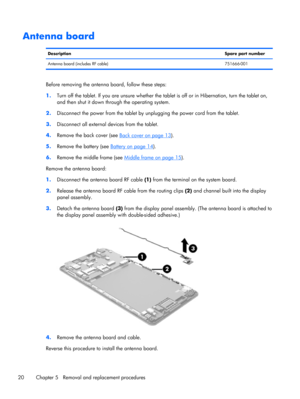

Page 26
Antenna board DescriptionSpare part number Antenna board (includes RF cable) 751666-001 Before removing the antenna board, follow these steps: 1.Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. 2.Disconnect the power from the tablet by unplugging the power cord from the tablet. 3.Disconnect all external devices from the tablet. 4.Remove the back cover (see Back cover on page 13). 5.Remove the...
Page 27

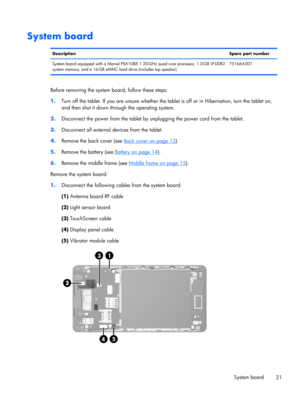

System board DescriptionSpare part number System board equipped with a Marvel PXA1088 1.20-GHz quad core processor, 1.0-GB LP-DDR2 system memory, and a 16-GB eMMC hard drive (includes top speaker)751664-001 Before removing the system board, follow these steps: 1.Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. 2.Disconnect the power from the tablet by unplugging the power cord from the tablet....

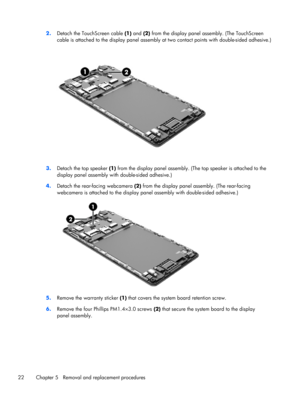

Page 28
2. Detach the TouchScreen cable (1) and (2) from the display panel assembly. (The TouchScreen cable is attached to the display panel assembly at two contact points with double-sided adhesive.) 3.Detach the top speaker (1) from the display panel assembly. (The top speaker is attached to the display panel assembly with double-sided adhesive.) 4.Detach the rear-facing webcamera (2) from the display panel assembly. (The rear-facing webcamera is attached to the display panel assembly with double-sided...

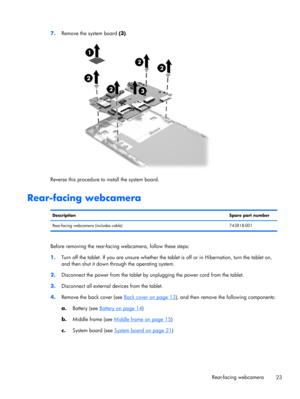

Page 29
7. Remove the system board (3). Reverse this procedure to install the system board. Rear-facing webcamera DescriptionSpare part number Rear-facing webcamera (includes cable) 743818-001 Before removing the rear-facing webcamera, follow these steps: 1.Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on, and then shut it down through the operating system. 2.Disconnect the power from the tablet by unplugging the power cord from the tablet. 3.Disconnect all...

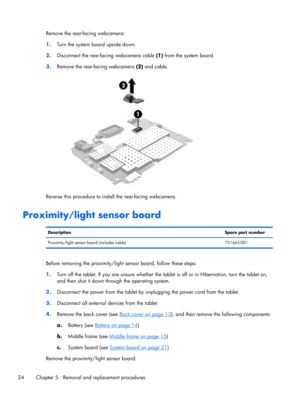

Page 30
Remove the rear-facing webcamera: 1.Turn the system board upside down. 2. Disconnect the rear-facing webcamera cable (1) from the system board. 3.Remove the rear-facing webcamera (2) and cable. Reverse this procedure to install the rear-facing webcamera. Proximity/light sensor board DescriptionSpare part number Proximity/light sensor board (includes cable) 751665-001 Before removing the proximity/light sensor board, follow these steps: 1.Turn off the tablet. If you are unsure whether the tablet is off or...
