Indesit Wd 12 X Manual

Model
WD 12 X
Dimensions
width 59,5 cm
height 81,5 cm
depth 54 cm
Capacity
from 1 to 5,5 kg for the wash programme; from 1 to 4 kg for the drying programme
Electrical
connectionsvoltage 230/240 Volt 50 Hz
maximum absorbed power 2050 W
Water connections
maximum pressure 1 MPa (10 bar)
minimum pressure 0,05 MPa (0,5 bar)
drum capacity 46 litre
Spinning speed
up to 1200 rpm
Control programs
in compliance with
IEC regulation 456wash: programme 3; temperature 60C°; carried out with 5 kg load;
drying: run with...

11  Instructions for installation and use
When the new washer-
dryer arrives
Installation and removal
Whether new or just  transported to a new house,
installation is extremely important for the correct
functioning of your washer-dryer.
Connecting the drain hose
The drain hose (hooked pipe) is
secured to the rear of the machine
by support clips and may be
routed to right or left as required.
The hook to be used in case the drain
hose ends at a height below 60 cm.
The drain hose should be placed
in a...

Instructions for installation and use  12
Removing the plug:
If your appliance has a non-
rewireable moulded plug and you
should wish to re-route the mains
cable through partitions, units
etc., please ensure that either:
the plug is replaced by a fused
13 ampere re-wearable plug
bearing the BSI mark of approval.
or:
the mains cable is wired directly
into a 13 amp cable outlet,
controlled by a switch, (in
compliance with BS 5733) which
is accessible without moving the
appliance.
Disposing of the plug:...

13  Instructions for installation and use
Mounting the wooden panel
onto the door and inserting
the machine into cabinets:
In the case where the machine
must be shipped for final
installation after the wooden
panel has been mounted, we
suggest leaving it in its original
packaging. The packaging was
designed  to make it possible to
mount the wooden panel onto
the machine without removing it
completely (see figures
below).The wooden panel that covers
the face of the machine must not
be less than 18 mm in...

  Instructions for installation and use  14
Mounting the Parts onto the
Face of the Machine
- Mount the hinge supports onto
the face of the machine,
positioning the hole indicated by
the arrow in fig. 1 towards the
inside of the face and using the
type C screws.
- Mount the magnetic plate on
the opposite side, at the top,
using the two type B screws.
- Place the spacer illustrated in
fig. 4/B between the appliance
front and the magnet receiver.
Using the Drilling Template
- To trace the positions of the...

Treat your machine well and it will provide
many years of trouble free service
Easy Care and Maintenance
Your washer-dryer is a reliable companion in life and on the job. It is just as important for you to keep it in
shape.
Your washer-dryer is designed
to provide reliable service over
many years. A few simple steps
will help to prolong its life and
avoid problems. It is advisable,
to turn off water taps when the
machine is not to be used, this
protects the hoses, etc.
If the water in your area is too...

  Instructions for installation and use  16

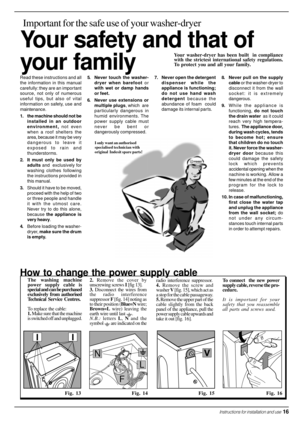

Your safety and that of
your family
Important for the safe use of your washer-dryer
Your washer-dryer has been built  in compliance
with the strictest international safety regulations.
To protect you and all your family.
Read these instructions and all
the information in this manual
carefully: they are an important
source, not only of numerous
useful tips, but also of vital
information on safety, use and
maintenance.
1. the machine should not be
installed in an...

17  Instructions for installation and use
Were as close to you as your telephone
For direct access to Genuine Indesit Spare Parts and Accessories,
call 0870 558 5850 and speak to our skilled staff who can help you to identify and purchase the item you require.
For a Rapid Response to a problem with your appliance, call 0870 607 0805. Were open from Monday to
Saturday (8am - 5.30pm weekdays, 9am - 5pm Saturday). We have our own department of highly trained Indesit
service staff. For most calls, our...

  Instructions for installation and use  18
