Lucent Technologies Definity Audix System Release 4.0 Screens Reference Manual

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

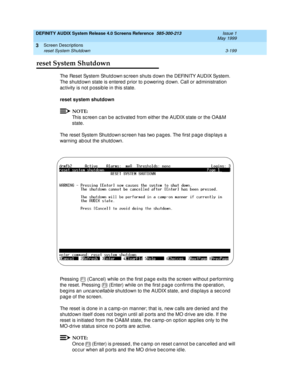

3-199 reset System Shutdown
3
3reset System Shutdown
The Reset System Shutdown sc reen shuts d own the DEFINITY AUDIX System.
The shutd own state is entered  p rior to p owering  d own. Call or ad ministration
ac tivity is not p ossib le in this state.
reset system shutdown

NOTE:
This sc reen c an b e ac tivated  from either the AUDIX state or the OA&M
state.
The reset System Shutdown
 sc reen...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

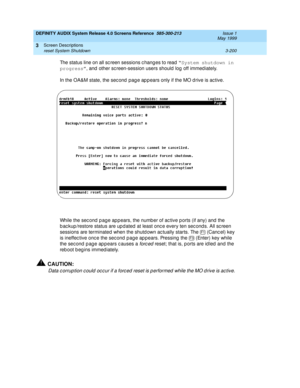

3-200 reset System Shutdown
3
The status line on all sc reen sessions c hang es to read “System shutdown in
progress”
, and  other sc reen-session users should  log off immed iately.
In the OA&M state, the sec ond  pag e ap p ears only if the MO d rive is ac tive.
While the sec ond  p ag e ap p ears, the numb er of ac tive p orts (if any) and  the
b ac kup /restore status are up d ated  at least...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

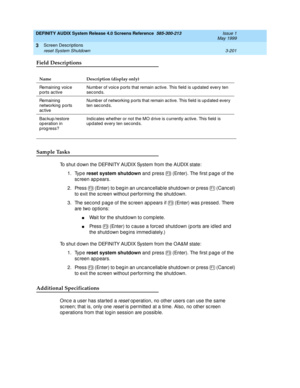

3-201 reset System Shutdown
3
Field Descriptions
Sample Tasks
To shut d own the DEFINITY AUDIX System from the AUDIX state:
1. Type reset system shutdown
 and press   (Enter). The first p ag e of the
sc reen appears.
2. Press   (Enter) to beg in an unc anc ellab le shutd own or p ress   (Canc el)
to exit the sc reen without p erforming  the shutd own.
3. The second page of the screen appears if...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

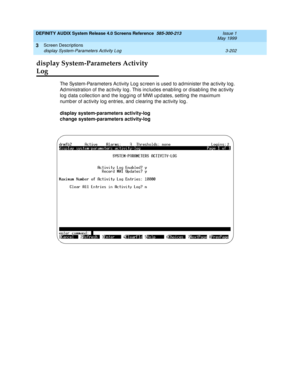

3-202 display System-Parameters Activity Log
3
display System-Parameters Activity
Log
The System-Parameters Ac tivity Log  sc reen is used  to administer the ac tivity log .
Ad ministration of the ac tivity log . This inc lud es enab ling  or d isabling  the ac tivity
log d ata c ollec tion and  the log g ing  of MWI up d ates, setting  the maximum
numb er of ac tivity log  entries, and c learing...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

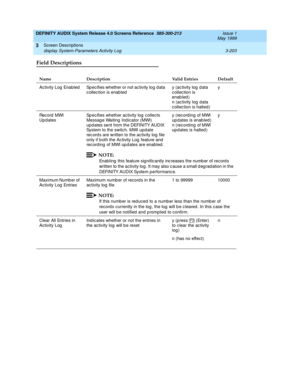

3-203 display System-Parameters Activity Log
3
Field Descriptions
Name Description Valid Entries Default
Activity Log  Enab led Spec ifies whether or not ac tivity log d ata
c ollec tion is enab ledy (ac tivity log  d ata
c ollec tion is
enab led )
n (ac tivity log  d ata
c ollec tion is halted )y
Rec ord  MWI
Up datesSpec ifies whether activity log  collects
Message Waiting Indicator (MWI)
upd...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-204 display System Parameters Analog Network
3
display System Parameters Analog
Network
The System Parameters Analog  Network sc reen is used  to d isp lay and  c hang e
p arameters on the loc al DEFINITY AUDIX mac hine for AMIS analog  networking .
display system-parameters analog-network

change system-parameters analog-network

NOTE:
This sc reen c an b e ac tivated  only if the AMIS analog...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

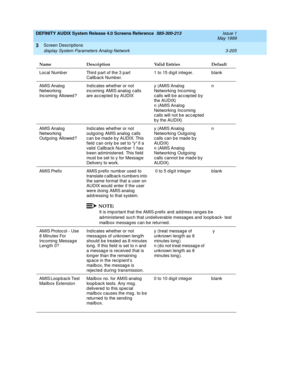

3-205 display System Parameters Analog Network
3
Loc al Numb er Third  p art of the 3 p art
Callb ac k Numb er. 1 to 15 dig it integ er. b lank
AMIS Analog
Networking
Inc oming  Allowed ?Ind icates whether or not
inc oming  AMIS analog c alls
are acc ep ted b y AUDIXy (AMIS Analog
Networking  Incoming
calls will be accepted by
the AUDIX)
n (AMIS Analog
Networking  Incoming
calls will...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

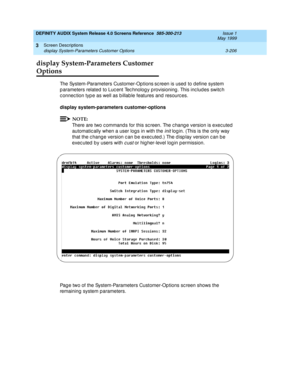

3-206 display System-Parameters Customer Options
3
display System-Parameters Customer
Options
The System-Parameters Customer-Op tions sc reen is used  to define system
p arameters related to Luc ent Tec hnolog y p rovisioning . This inc lud es switc h
c onnec tion typ e as well as b illab le features and  resourc es.
display system-parameters customer-options
NOTE:
There are two c ommands for...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

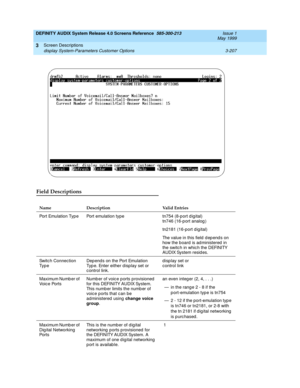

3-207 display System-Parameters Customer Options
3
Field Descriptions
Name Description Valid Entries
Port Emulation Typ e Port emulation type tn754 (8-p ort d igital)
tn746 (16-p ort analog )
tn2181 (16-port dig ital)
The value in this field  d ep end s on
how the board is ad ministered  in
the switc h in whic h the DEFINITY
AUDIX System resid es.
Switc h Connection
Ty p eDepends on the Port...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

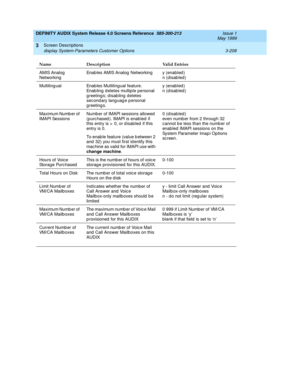

3-208 display System-Parameters Customer Options
3
AMIS Analog
NetworkingEnab les AMIS Analog  Networking y (enabled )
n (d isab led )
Multiling ual Enab les Multiling ual feature.
Enab ling d eletes multiple personal
greetings; disabling deletes
sec ond ary lang uag e personal
greetings.y (enabled )
n (d isab led )
Maximum Numb er of
IMAPI SessionsNumb er of IMAPI sessions allowed
(p urc...
