Lucent Technologies Definity Audix System Release 4.0 Screens Reference Manual

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-219 display System-Parameters imapi-Options
3
LA N  Su b n e t  M as k Set s  A U D I X I P Su b n e t  M as k.
This is obtained  from the LAN
administrator.nnn.nnn.nnn.nnn where nnn
is a number between 0 to
255. (You must enter  “ .” )
Default LAN
Gateway IP Ad d ressSets Default LAN Gateway IP
Ad d ress. This is ob tained  from
the LAN ad ministrator.
nnn.nnn.nnn.nnn where nnn
is a numb...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

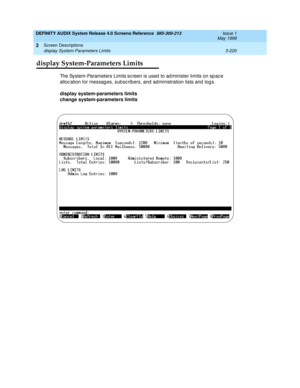

3-220 display System-Parameters Limits
3
display System-Parameters Limits
The System-Parameters Limits sc reen is used  to ad minister limits on sp ac e
alloc ation for messag es, sub sc rib ers, and  ad ministration lists and  log s.
display system-parameters limits
change system-parameters limits

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

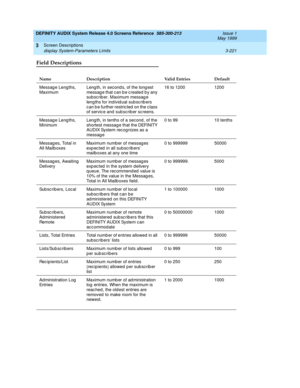

3-221 display System-Parameters Limits
3
Field Descriptions
Name Description Valid Entries Default
Messag e Leng ths,
MaximumLeng th, in second s, of the long est
messag e that c an b e c reated  b y any
sub sc rib er. Maximum messag e
lengths for individual subscribers
c an b e further restricted  on the c lass
of servic e and sub scrib er sc reens.16 to 1200 1200
Messag e Leng ths,...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

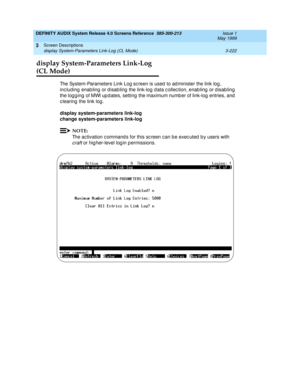

3-222 display System-Parameters Link-Log (CL Mode)
3
display System-Parameters Link-Log
(CL Mode)
The System-Parameters Link Log sc reen is used  to ad minister the link log ,
inc lud ing  enabling  or d isab ling  the link-log  d ata c ollec tion, enab ling  or d isab ling
the log g ing  of MWI up d ates, setting  the maximum numb er of link-log  entries, and
c learing  the link log.
display...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

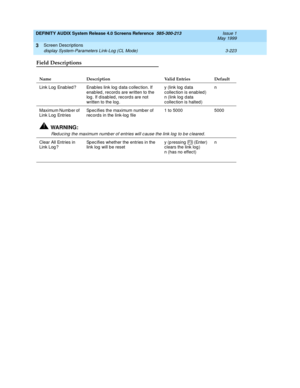

3-223 display System-Parameters Link-Log (CL Mode)
3
Field Descriptions
Name Description Valid Entries Default
Link Log  Enab led ? Enab les link log d ata c ollec tion. If
enab led , record s are written to the
log. If disabled, records are not
written to the log .y (link log  d ata
collec tion is enab led )
n (link log d ata
collec tion is halted)n
Maximum Numb er of
Link Log  EntriesSpec...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

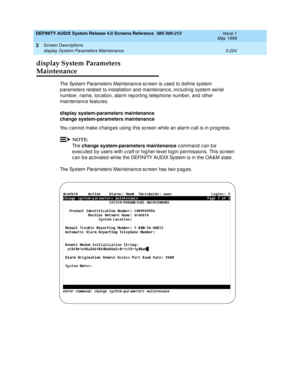

3-224 display System Parameters Maintenance
3
display System Parameters
Maintenance
The System Parameters Maintenanc e sc reen is used to d efine system
p arameters related to installation and  maintenanc e, inc lud ing  system serial
numb er, name, loc ation, alarm rep orting  telep hone numb er, and  other
maintenanc e features.
display system-parameters maintenance
change system-parameters...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

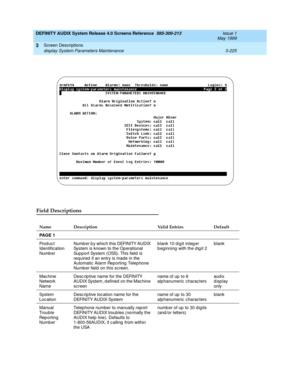

3-225 display System Parameters Maintenance
3
Field Descriptions
Name Description Valid Entries Default
PA G E  1
Prod uct
Identification
Numb erNumb er b y which this DEFINITY AUDIX
System is known to the Op erational
Su p p o r t Sys t em  ( OSS) .  Thi s f i el d  i s
required  if an entry is made in the
Automatic Alarm Rep orting Telephone
Numb er field  on this screen.blank 10 digit...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

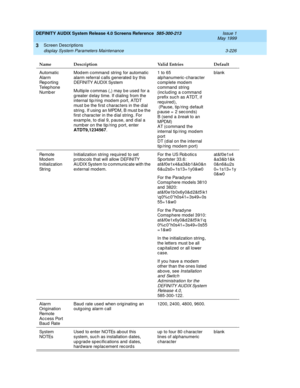

3-226 display System Parameters Maintenance
3
Automatic
Alarm
Reporting
Telep hone
Numb erMod em command  string  for automatic
alarm referral c alls g enerated  b y this
DEFINITY AUDIX System
Multip le c ommas (,) may b e used  for a
g reater d elay time. If d ialing  from the
internal tip/ring modem port, ATDT
must b e the first c harac ters in the dial
string. If using an MPDM, B must b...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions

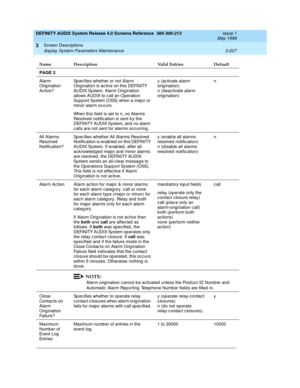

3-227 display System Parameters Maintenance
3
PAGE 2
Alarm
Origination
Active?Sp ec ifies whether or not Alarm
Orig ination is active on this DEFINITY
AUDIX System. Alarm Orig ination
allows AUDIX to call an Operation
Supp ort System (OSS) when a major or
minor alarm oc curs.
When this field is set to n, no Alarms
Resolved notific ation is sent b y the
DEFINITY AUDIX System, and  no alarm
c...

DEFINITY AUDIX System Release 4.0 Screens Reference  585-300-213  Issue 1
May 1999
Screen Descriptions
3-228 change/display System-Parameters Outcalling
3
change/display System-Parameters
Outcalling
The System-Parameters Outc alling sc reen is used  to ad minister the
system-related  outc alling  p arameters. Outc alling  alerts sub sc rib ers when new
messages are received, by placing a call to a number specified by the
sub sc rib er. The outc alling  p arameters also affec t the AMIS Analog...
