Lucent Technologies DEFINITY Enterprise Communications Server And GuestWorks Property Management System Interface Specifications

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
About This Document

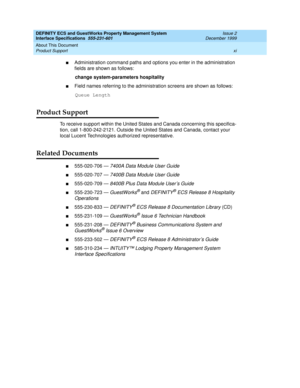

xi Product Support
nAdministration command paths and options you enter in the administration
fields are shown as follows:
change system-parameters hospitality
nField names referring to the administration screens are shown as follows:
Queue Length
Product Support
To receive support within the United States and Canada concerning this specifica-
tion, call...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
About This Document
xii Related Documents

System Description
1 Link Interface
DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description
Link Interface

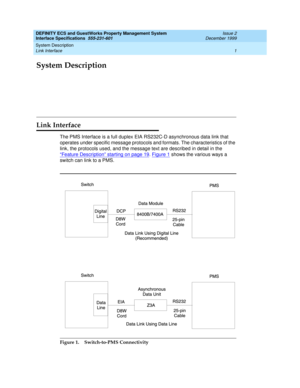

The PMS Interface is a full duplex EIA RS232C-D asynchronous data link that
operates under specific message protocols and formats. The characteristics of the
link, the protocols used, and the message text are described in detail in the
“Feature Description” starting on page 19
. Figure 1 shows the various ways a...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description
2 Link Interface

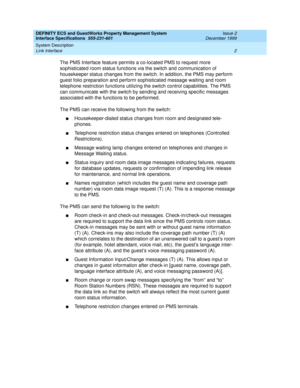

The PMS Interface feature permits a co-located PMS to request more
sophisticated room status functions via the switch and communication of
housekeeper status changes from the switch. In addition, the PMS may perform
guest folio preparation and perform sophisticated message waiting and room
telephone restriction functions utilizing the switch control...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

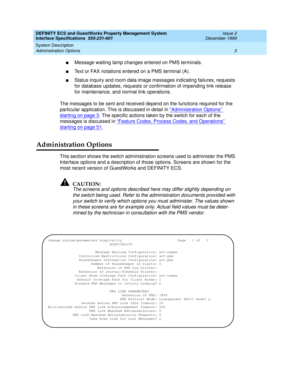

3 Administration Options
nMessage waiting lamp changes entered on PMS terminals.
nText or FAX notations entered on a PMS terminal (A).
nStatus inquiry and room data image messages indicating failures, requests
for database updates, requests or confirmation of impending link release
for maintenance, and normal link operations.
The messages to be sent and received...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

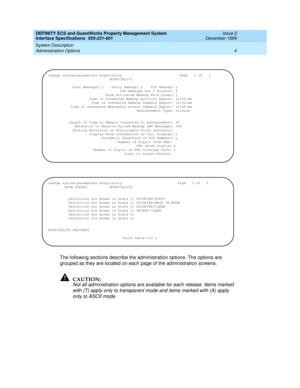

4 Administration Options
The following sections describe the administration options. The options are
grouped as they are located on each page of the administration screens.
!CAUTION:
Not all administration options are available for each release. Items marked
with (T) apply only to transparent mode and items marked with (A) apply
only to ASCII mode.
change...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description
5 Administration Options

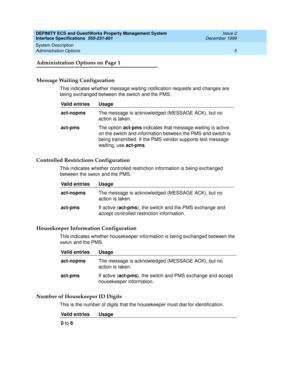

Administration Options on Page 1
Message Waiting Configuration
This indicates whether message waiting notification requests and changes are
being exchanged between the switch and the PMS.
Controlled Restrictions Configuration
This indicates whether controlled restriction information is being exchanged
between the
switch and the PMS....

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description
6 Administration Options

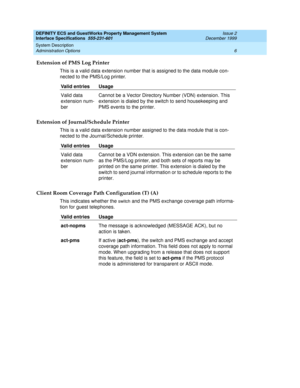

Extension of PMS Log Printer
This is a valid data extension number that is assigned to the data module con-
nected to the PMS/Log printer.
Extension of Journal/Schedule Printer
This is a valid data extension number assigned to the data module that is con-
nected to the Journal/Schedule printer.
Client Room Coverage Path Configuration (T) (A)...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description
7 Administration Options

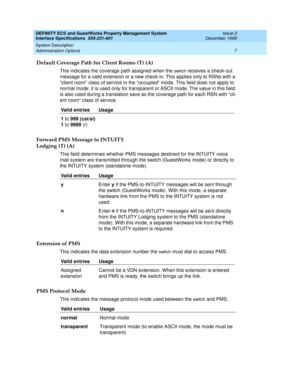

Default Coverage Path for Client Rooms (T) (A)
This indicates the coverage path assigned when the switch receives a check-out
message for a valid extension or a new check-in. This applies only to RSNs with a
“client room” class of service in the “occupied” mode. This field does not apply to
normal mode; it is used only for transparent or...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description
8 Administration Options

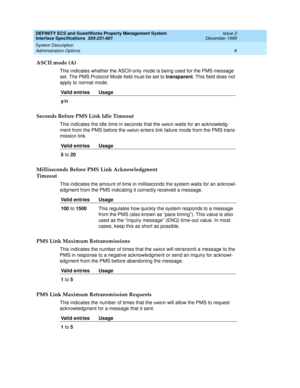

ASCII mode (A)
This indicates whether the ASCII-only mode is being used for the PMS message
set. The PMS Protocol Mode field must be set to transparent. This field does not
apply to normal mode.
Seconds Before PMS Link Idle Timeout
This indicates the idle time in seconds that the switch waits for an acknowledg-
ment from the PMS before the...
