Lucent Technologies DEFINITY Enterprise Communications Server And GuestWorks Property Management System Interface Specifications

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description
9 Administration Options

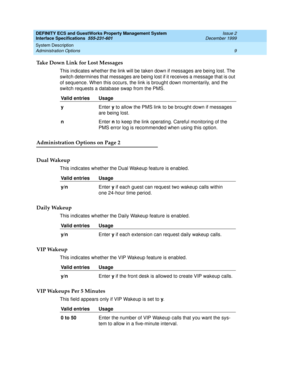

Take Down Link for Lost Messages
This indicates whether the link will be taken down if messages are being lost. The
switch determines that messages are being lost if it receives a message that is out
of sequence. When this occurs, the link is brought down momentarily, and the
switch requests a database swap from the PMS.
Administration...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description
10 Administration Options

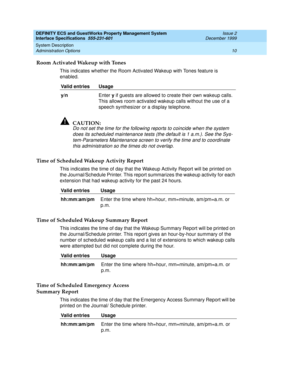

Room Activated Wakeup with Tones
This indicates whether the Room Activated Wakeup with Tones feature is
enabled.
!CAUTION:
Do not set the time for the following reports to coincide when the system
does its scheduled maintenance tests (the default is 1 a.m.). See the Sys-
tem-Parameters Maintenance screen to verify the time and to coordinate...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

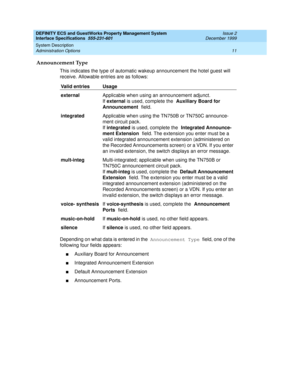

11 Administration Options
Announcement Type
This indicates the type of automatic wakeup announcement the hotel guest will
receive. Allowable entries are as follows:
Depending on what data is entered in the Announcement Type field, one of the
following four fields appears:
nAuxiliary Board for Announcement
nIntegrated Announcement Extension
nDefault Announcement...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

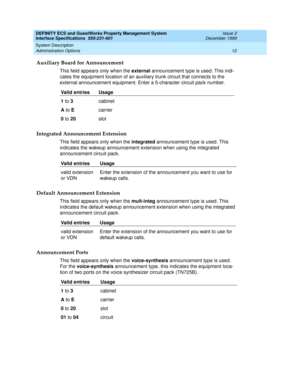

12 Administration Options
Auxiliary Board for Announcement
This field appears only when the external announcement type is used. This indi-
cates the equipment location of an auxiliary trunk circuit that connects to the
external announcement equipment. Enter a 5-character circuit pack number.
Integrated Announcement Extension
This field appears only when the integrated...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

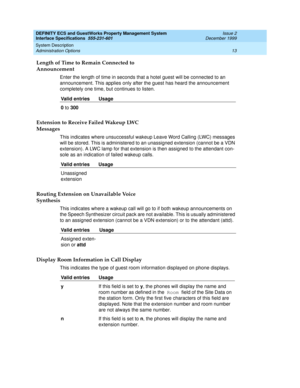

13 Administration Options
Length of Time to Remain Connected to
Announcement
Enter the length of time in seconds that a hotel guest will be connected to an
announcement. This applies only after the guest has heard the announcement
completely one time, but continues to listen.
Extension to Receive Failed Wakeup LWC
Messages
This indicates where unsuccessful wakeup...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

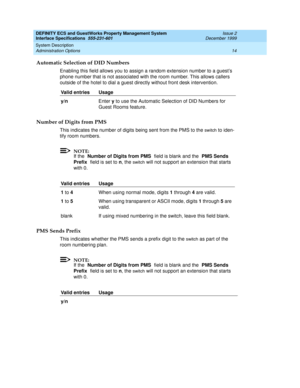

14 Administration Options
Automatic Selection of DID Numbers
Enabling this field allows you to assign a random extension number to a guest’s
phone number that is not associated with the room number. This allows callers
outside of the hotel to dial a guest directly without front desk intervention.
Number of Digits from PMS
This indicates the number of digits being sent...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

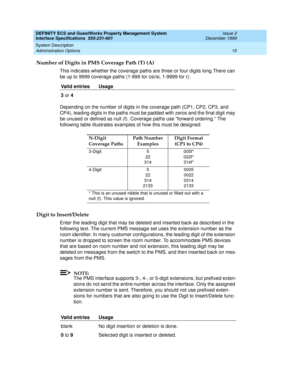

15 Administration Options
Number of Digits in PMS Coverage Path (T) (A)
This indicates whether the coverage paths are three or four digits long.There can
be up to 9999 coverage paths (1-999 for csi/si, 1-9999 for r).
Depending on the number of digits in the coverage path (CP1, CP2, CP3, and
CP4), leading digits in the paths must be padded with zeros and the final...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

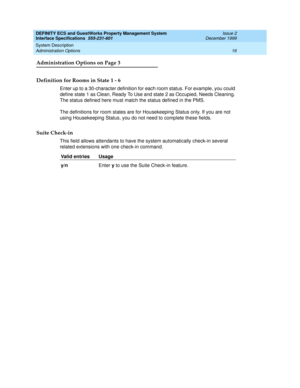

16 Administration Options
Administration Options on Page 3
Definition for Rooms in State 1 - 6
Enter up to a 30-character definition for each room status. For example, you could
define state 1 as Clean, Ready To Use and state 2 as Occupied, Needs Cleaning.
The status defined here must match the status defined in the PMS.
The definitions for room states are for...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

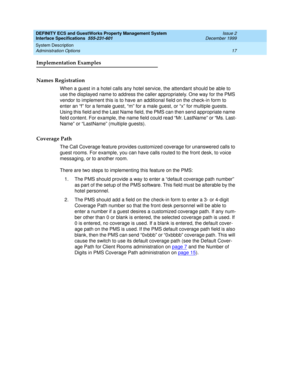

17 Administration Options
Implementation Examples
Names Registration
When a guest in a hotel calls any hotel service, the attendant should be able to
use the displayed name to address the caller appropriately. One way for the PMS
vendor to implement this is to have an additional field on the check-in form to
enter an “f” for a female guest, “m” for a male guest, or...

DEFINITY ECS and GuestWorks Property Management System
Interface Specifications  555-231-601  Issue 2
December 1999
System Description

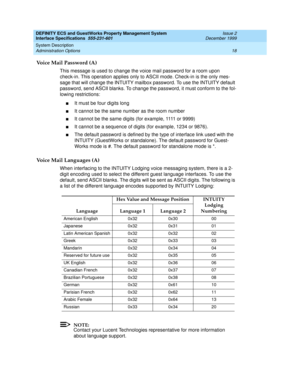

18 Administration Options
Voice Mail Password (A)
This message is used to change the voice mail password for a room upon
check-in. This operation applies only to ASCII mode. Check-in is the only mes-
sage that will change the INTUITY mailbox password. To use the INTUITY default
password, send ASCII blanks. To change the password, it must conform to the fol-
lowing...
