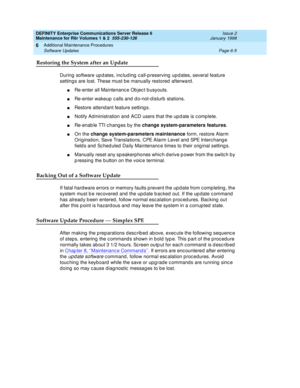

Lucent Technologies DEFINITY Enterprise Communications Server Release 6 Instructions Manual

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-5 Software Updates
6
Restoring the System after an Update
During software updates, including call-preserving updates, several feature
settings are lost. These must be manually restored afterward.
nRe-enter all Maintenance Object busyouts.
nRe-enter wakeup calls and do-not-disturb stations.
nRestore attendant feature settings.
nNotify...

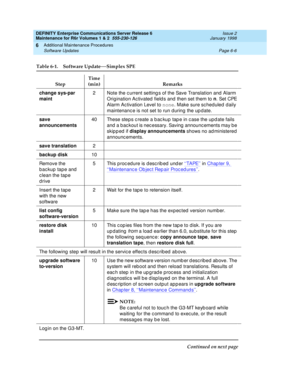

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-6 Software Updates
6
Table 6-1. Software Update—Simplex SPE
StepTime
(min) Remarks
change sys-par
maint2 Note the current settings of the Save Translation and Alarm
Origination Activated fields and then set them to n. Set CPE
Alarm Activation Level to none. Make sure scheduled daily
maintenance is not set to run during the update.
save...

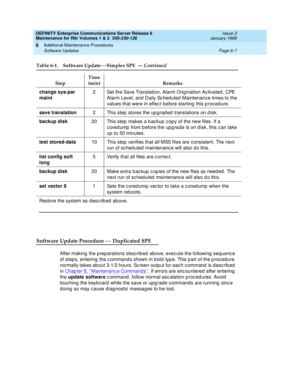

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-7 Software Updates
6
Software Update Procedure — Duplicated SPE
After making the preparations described above, execute the following sequence
of steps, entering the commands shown in bold type. This part of the procedure
normally takes about 3-1/2 hours. Screen output for each command is described
in Chapter 8, ‘‘
Maintenance Commands’’. If...

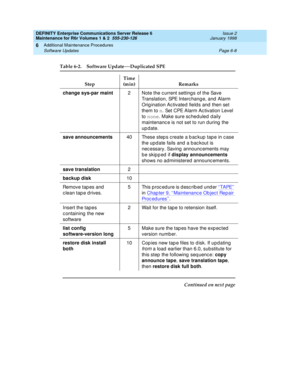

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-8 Software Updates
6
Table 6-2. Software Update—Duplicated SPE
StepTime
(m in) Remarks
change sys-par maint2 Note the current settings of the Save
Translation, SPE Interchange, and Alarm
Origination Activated fields and then set
them to n. Set CPE Alarm Activation Level
to none. Make sure scheduled daily
maintenance is not set to run...

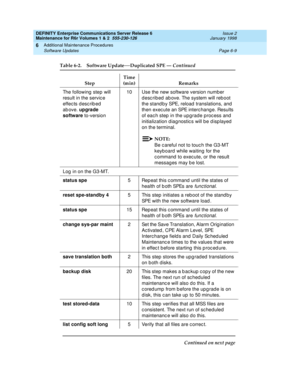

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-9 Software Updates
6
The following step will
result in the service
effects described
above. upgrade
software to-version10 Use the new software version number
described above. The system will reboot
the standby SPE, reload translations, and
then execute an SPE interchange. Results
of each step in the upgrade process and
initialization...

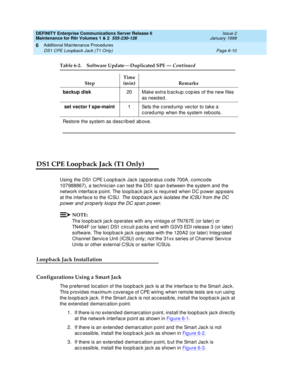

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-10 DS1 CPE Loopback Jack (T1 Only)
6
DS1 CPE Loopback Jack (T1 Only)
Using the DS1 CPE Loopback Jack (apparatus code 700A, comcode
107988867), a technician can test the DS1 span between the system and the
network interface point. The loopback jack is required when DC power appears
at the interface to the ICSU.
The loopback jack isolates...

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-11 DS1 CPE Loopback Jack (T1 Only)
6
Configurations Without a Smart Jack
1. Install the loopback jack at the point where the cabling from the ICSU
plugs into the “dumb” block. If there is more than one “dumb” block,
choose the one that is closest to the Interface Termination feed or the fiber
MUX. This provides maximum coverage for loopback...

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures

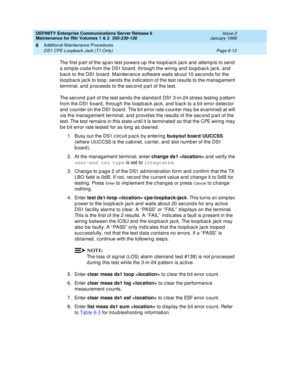

Page 6-12 DS1 CPE Loopback Jack (T1 Only)
6
The first part of the span test powers-up the loopback jack and attempts to send
a simple code from the DS1 board, through the wiring and loopback jack, and
back to the DS1 board. Maintenance software waits about 10 seconds for the
loopback jack to loop, sends the indication of the test results to the...

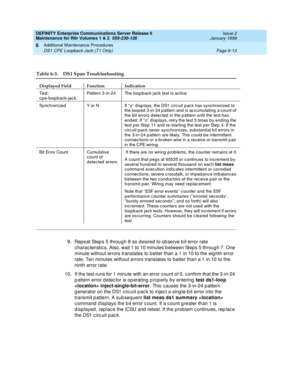

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-13 DS1 CPE Loopback Jack (T1 Only)
6
9. Repeat Steps 5 through 8 as desired to observe bit error rate
characteristics. Also, wait 1 to 10 minutes between Steps 5 through 7. One
minute without errors translates to better than a 1 in 10 to the eighth error
rate. Ten minutes without errors translates to better than a 1 in 10 to the
ninth...

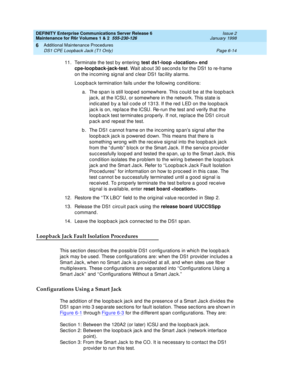

DEFINITY Enterprise Communications Server Release 6
Maintenance for R6r Volumes 1 & 2  555-230-126  Issue 2
January 1998
Additional Maintenance Procedures
Page 6-14 DS1 CPE Loopback Jack (T1 Only)
6
11. Terminate the test by entering test ds1-loop  end
cpe-loopback-jack-test. Wait about 30 seconds for the DS1 to re-frame
on the incoming signal and clear DS1 facility alarms.
Loopback termination fails under the following conditions:
a. The span is still looped somewhere. This could be at the loopback...
