Touchmaster® Infinity Countertop    System - 13

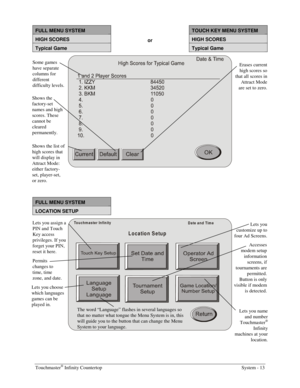

FULL MENU SYSTEM  TOUCH KEY MENU SYSTEM
HIGH SCORES or HIGH SCORES
Typical Game  Typical Game


FULL MENU SYSTEM
LOCATION SETUP
Touchm aster Infinity
Location Setup
Date and Time

Some games
have separate
columns for
different
difficulty levels.
Shows the
factory-set
names and high
scores. These
cannot be
cleared
permanently.
Shows the list of
high scores that
will display in
Attract Mode:
either factory-
set, player-set,
or...

System - 14    Midway Amusement Games, LLC

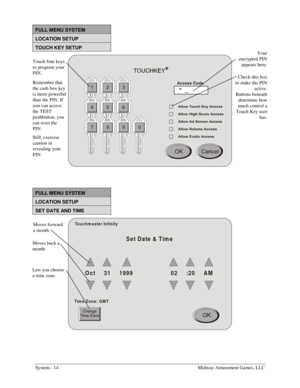

FULL MENU SYSTEM
LOCATION SETUP
TOUCH KEY SETUP



FULL MENU SYSTEM
LOCATION SETUP
SET DATE AND TIME
Set Date & Time
O c t     3 1     1 99 9                      02      :2 0     A M
Touchm aster Infinity
Tim e Zone: GM T


Touch four keys
to program your
PIN.
Remember that
the cash box key
is more powerful
than the PIN. If
you can access
the TEST
pushbutton, you
can reset the
PIN.
Still, exercise
caution in
revealing your
PIN.
Your...

Touchmaster® Infinity Countertop    System - 15

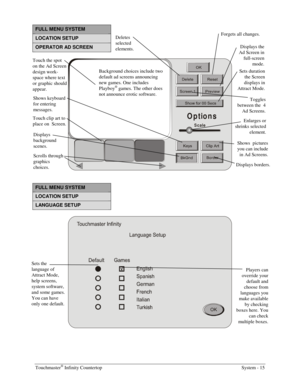

FULL MENU SYSTEM
LOCATION SETUP
OPERATOR AD SCREEN
Options
Scale

FULL MENU SYSTEM
LOCATION SETUP
LANGUAGE SETUP

Touch the spot
on the Ad Screen
design work-
space where text
or graphic should
appear.
Shows keyboard
for entering
messages.
Touch clip art to
place on  Screen. Deletes
selected
elements. Displays the
Ad Screen in
full-screen
mode.
Sets duration
the Screen
displays in
Attract Mode. Toggles
between the  4
Ad Screens....

System - 16    Midway Amusement Games, LLC

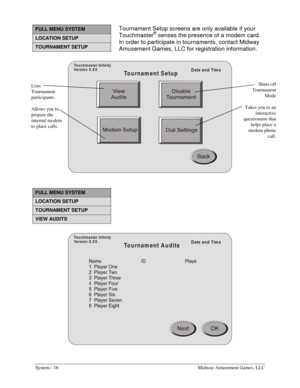

FULL MENU SYSTEM
LOCATION SETUP
TOURNAMENT SETUP
Touchm aster Infinity
Versio n X .X X
To u rn a m e n t  S e t u pDate and Tim e


FULL MENU SYSTEM
LOCATION SETUP
TOURNAMENT SETUP
VIEW AUDITS
Touchm aster Infinity
Versio n X .X X
Tournament AuditsDate and Tim e
Lists
Tournament
participants.
Allows you to
prepare the
internal modem
to place calls. Shuts off
Tournament
Mode
Takes you to an
interactive
questionaire that
helps place a
modem...

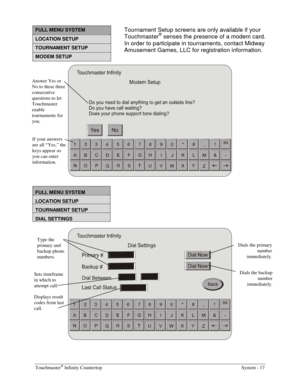

Touchmaster® Infinity Countertop    System - 17

FULL MENU SYSTEM
LOCATION SETUP
TOURNAMENT SETUP
MODEM SETUP


FULL MENU SYSTEM
LOCATION SETUP
TOURNAMENT SETUP
DIAL SETTINGS

Type the
primary and
backup phone
numbers.
Dials the primary
number
immediately.
Dials the backup
number
immediately.
Sets timeframe
in which to
attempt call.  Answer Yes or
No to these three
consecutive
questions to let
Touchmaster
enable
tournaments for
you.
If your answers
are all “Yes,” the...

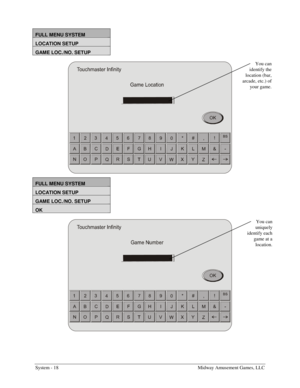

System - 18    Midway Amusement Games, LLC

FULL MENU SYSTEM
LOCATION SETUP
GAME LOC./NO. SETUP

FULL MENU SYSTEM
LOCATION SETUP
GAME LOC./NO. SETUP
OK
You can
identify the
location (bar,
arcade, etc.) of
your game.
You can
uniquely
identify each
game at a
location.

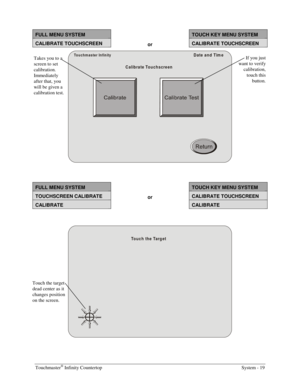

Touchmaster® Infinity Countertop    System - 19


FULL MENU SYSTEM  TOUCH KEY MENU SYSTEM
CALIBRATE TOUCHSCREEN or CALIBRATE TOUCHSCREEN
Touchm aster Infinity
Calibrate TouchscreenDate and Tim e


FULL MENU SYSTEM  TOUCH KEY MENU SYSTEM
TOUCHSCREEN CALIBRATE or CALIBRATE TOUCHSCREEN
CALIBRATE  CALIBRATE

Touch the Target


Takes you to a
screen to set
calibration.
Immediately
after that, you
will be given a
calibration test. If you just
want to verify
calibration,
touch this...

System - 20    Midway Amusement Games, LLC

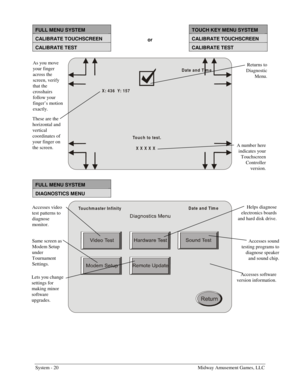

FULL MENU SYSTEM  TOUCH KEY MENU SYSTEM
CALIBRATE TOUCHSCREEN or CALIBRATE TOUCHSCREEN
CALIBRATE TEST  CALIBRATE TEST
X: 436  Y: 157
Touch to test.
X X X X XDate and Tim e

FULL MENU SYSTEM
DIAGNOSTICS MENU
Touchm aster InfinityDate and Tim e

As you move
your finger
across the
screen, verify
that the
crosshairs
follow your
finger’s motion
exactly. Returns to
Diagnostic
Menu.
A number here
indicates your
Touchscreen
Controller
version....

Touchmaster® Infinity Countertop    System - 21

FULL MENU SYSTEM
DIAGNOSTICS MENU
VIDEO TEST
Touchm aster InfinityDate and Tim e


FULL MENU SYSTEM
DIAGNOSTICS MENU
HARDWARE TEST
Touchm aster Infinity
Date and Tim e

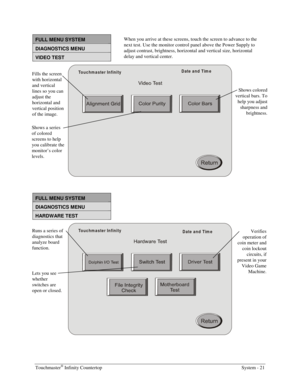

Shows colored
vertical bars. To
help you adjust
sharpness and
brightness.
Fills the screen
with horizontal
and vertical
lines so you can
adjust the
horizontal and
vertical position
of the image.
Shows a series
of colored
screens to help
you calibrate the...

System - 22    Midway Amusement Games, LLC

FULL MENU SYSTEM
DIAGNOSTICS MENU
HARDWARE TEST
SWITCH TEST


FULL MENU SYSTEM
DIAGNOSTICS MENU
HARDWARE TEST
DRIVER TEST

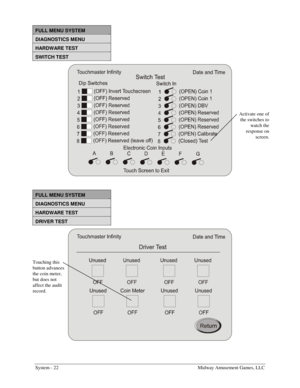

Activate one of
the switches to
watch the
response on
screen.
Touching this
button advances
the coin meter,
but does not
affect the audit
record.
