Page 51
Touchmaster® Infinity Countertop Parts - 9

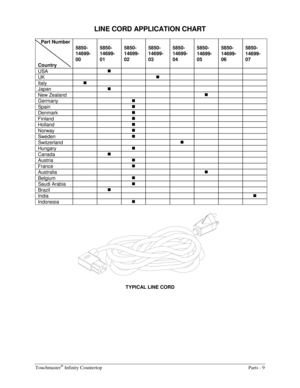

LINE CORD APPLICATION CHART
Part Number
Country
5850-
14699-
00
5850-
14699-
01
5850-
14699-
02
5850-
14699-
03
5850-
14699-
04
5850-
14699-
05
5850-
14699-
06
5850-
14699-
07
USA „
UK „
Italy „
Japan „
New Zealand „
Germany „
Spain „
Denmark „
Finland „
Holland „
Norway „
Sweden „
Switzerland „
Hungary...
Page 52

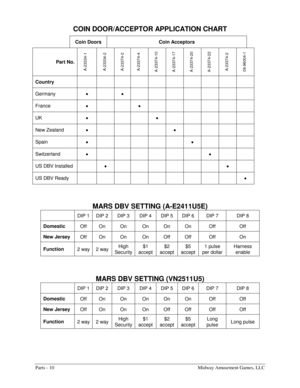

Parts - 10 Midway Amusement Games, LLC
COIN DOOR/ACCEPTOR APPLICATION CHART
Coin Doors Coin Acceptors
Part No.
A-23334-1
A-23334-2
A-23374-2
A-23374-4
A-23374-10
A-23374-17
A-23374-20
A-23374-22
A-23374-2
09.96004-1
Country
Germany
•
•
France
•
•
UK
•
•
New Zealand
•
•
Spain
•
•
Switzerland
•
•
US DBV Installed
•
•
US DBV Ready
•
MARS DBV SETTING (A-E2411U5E)
DIP...
Page 53

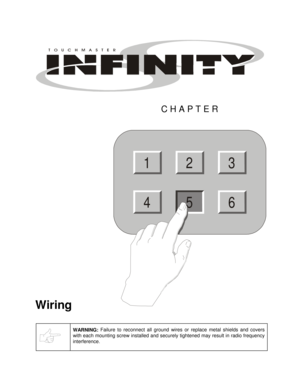

CHAPTER Wiring WARNING: Failure to reconnect all ground wires or replace metal shields and covers with each mounting screw installed and securely tightened may result in radio frequency interference. 2 6 13 45
Page 54

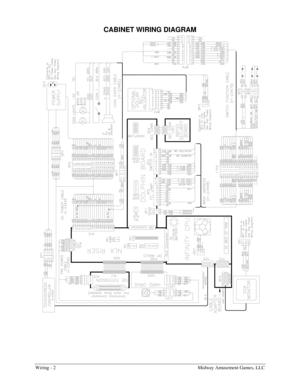

Wiring - 2 Midway Amusement Games, LLC CABINET WIRING DIAGRAM
Page 55

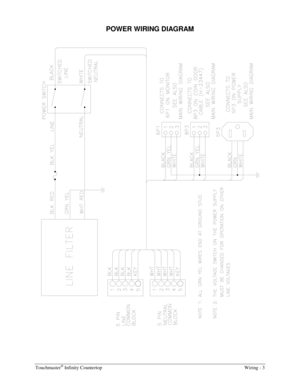

Touchmaster® Infinity Countertop Wiring - 3 POWER WIRING DIAGRAM
Page 56

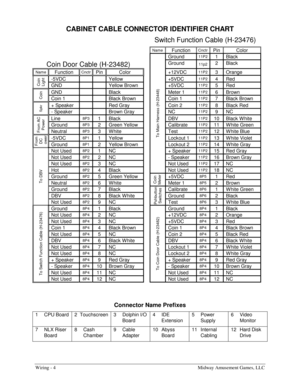

Wiring - 4 Midway Amusement Games, LLC
CABINET CABLE CONNECTOR IDENTIFIER CHART
Switch Function Cable (H-23476)
Name Function Cnctr Pin Color
Ground 11P2 1 Black
Coin Door Cable (H-23482) Ground 11p2 2 Black
Name Function Cnctr Pin Color +12VDC 11P2 3 Orange
-5VDC Yellow +5VDC 11P2 4 Red
Coin
Light GND Yellow Brown +5VDC 11P2 5 Red
GND Black Meter 1 11P2 6 Brown
Coin Coin 1 Black Brown Coin 1 11P2 7 Black Brown
+ Speaker Red Gray Coin 2 11P2 8...
Page 57

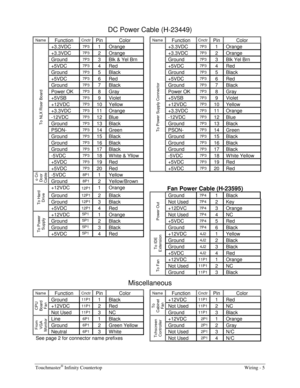

Touchmaster® Infinity Countertop Wiring - 5 DC Power Cable (H-23449) Name Function Cnctr Pin Color Name Function Cnctr Pin Color +3.3VDC 7P3 1 Orange +3.3VDC 7P3 1 Orange +3.3VDC 7P3 2 Orange +3.3VDC 7P3 2 Orange Ground 7P3 3 Blk & Yel Brn Ground 7P3 3 Blk Yel Brn +5VDC 7P3 4 Red +5VDC 7P3 4 Red Ground 7P3 5 Black Ground 7P3 5 Black +5VDC 7P3 6 Red +5VDC 7P3 6 Red Ground 7P3 7 Black Ground 7P3 7 Black Power OK 7P3 8 Gray Power OK 7P3 8 Gray +5VSB 7P3 9 Violet...
Page 58

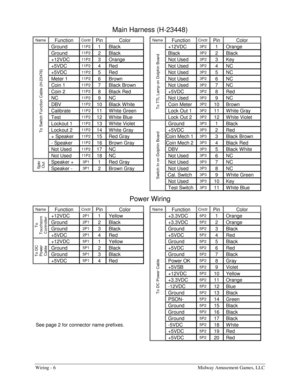

Wiring - 6 Midway Amusement Games, LLC Main Harness (H-23448) Name Function Contr Pin Color Name Function Cnctr Pin Color Ground 11P2 1 Black +12VDC 3P2 1 Orange Ground 11P2 2 Black Black 3P2 2 Black +12VDC 11P2 3 Orange Not Used 3P2 3 Key +5VDC 11P2 4 Red Not Used 3P2 4 NC +5VDC 11P2 5 Red Not Used 3P2 5 NC Meter 1 11P2 6 Brown Not Used 3P2 6 NC Coin 1 11P2 7 Black Brown Not Used 3P2 7 NC Coin 2 11P2 8 Black Red +5VDC 3P2 8 Red NC 11P2 9 NC Not Used 3P2 9 NC...
Page 59

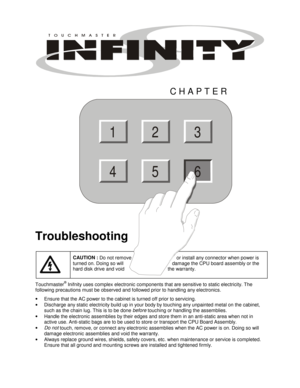

CHAPTER Troubleshooting CAUTION : Do not remove or install any connector when power is turned on. Doing so will damage the CPU board assembly or the hard disk drive and void the warranty. Touchmaster® Inifnity uses complex electronic components that are sensitive to static electricity. The following precautions must be observed and followed prior to handling any electronics. • Ensure that the AC power to the cabinet is turned off prior to servicing. • Discharge any static...
Page 60

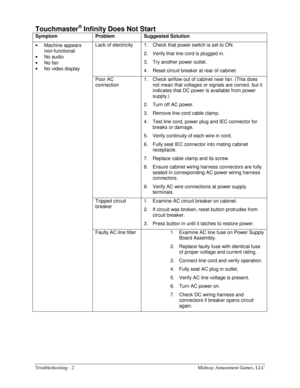

Troubleshooting - 2 Midway Amusement Games, LLC Touchmaster® Infinity Does Not Start Symptom Problem Suggested Solution • Machine appears non-functional. • No audio • No fan • No video display Lack of electricity 1. Check that power switch is set to ON. 2. Verify that line cord is plugged in. 3. Try another power outlet. 4. Reset circuit breaker at rear of cabinet. Poor AC connection 1. Check airflow out of cabinet near fan. (This does not mean that voltages or signals are...
