Midway Touch Master Infinity Countertop Operation Manual

Touchmaster® Infinity Countertop    Service - 3

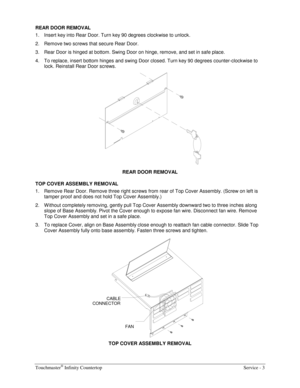

REAR DOOR REMOVAL
1.  Insert key into Rear Door. Turn key 90 degrees clockwise to unlock.
2.  Remove two screws that secure Rear Door.
3.  Rear Door is hinged at bottom. Swing Door on hinge, remove, and set in safe place.
4.  To replace, insert bottom hinges and swing Door closed. Turn key 90 degrees counter-clockwise to
lock. Reinstall Rear Door screws.

REAR DOOR REMOVAL
TOP COVER ASSEMBLY REMOVAL
1.  Remove Rear Door. Remove three right screws...

Service - 4    Midway Amusement Games, LLC
CONTROL SWITCH ACCESS

Remove Side Cover Assembly to access TEST and CAL. pushbuttons on interior wall of cash chamber.
•
CAL. pushbutton lets you calibrate Touchscreen. This is crucial to maintaining quality of game play.
•
TEST pushbutton gives you access to system software to reset high scores, customize Attract Mode
with location name, review game audits, and set other options.

CAL. AND TEST BUTTONS LOCATION
DEFLECTION BOARD BRACKET PIVOTING
You...

Touchmaster® Infinity Countertop    Service - 5

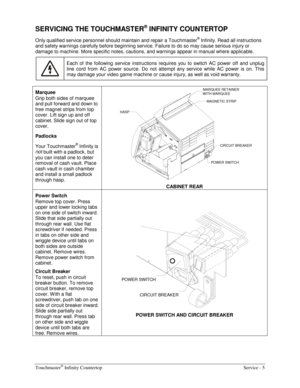

SERVICING THE TOUCHMASTER® INFINITY COUNTERTOP
Only qualified service personnel should maintain and repair a Touchmaster® Infinity. Read all instructions
and safety warnings carefully before beginning service. Failure to do so may cause serious injury or
damage to machine. More specific notes, cautions, and warnings appear in manual where applicable.

Each of the following service instructions requires you to switch AC power off and unplug
line cord...

Service - 6    Midway Amusement Games, LLC

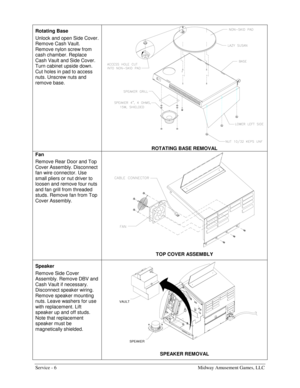

Rotating Base
Unlock and open Side Cover.
Remove Cash Vault.
Remove nylon screw from
cash chamber. Replace
Cash Vault and Side Cover.
Turn cabinet upside down.
Cut holes in pad to access
nuts. Unscrew nuts and
remove base.

ROTATING BASE REMOVAL
Fan
Remove Rear Door and Top
Cover Assembly. Disconnect
fan wire connector. Use
small pliers or nut driver to
loosen and remove four nuts
and fan grill from threaded
studs. Remove fan from Top
Cover...

Touchmaster® Infinity Countertop    Service - 7

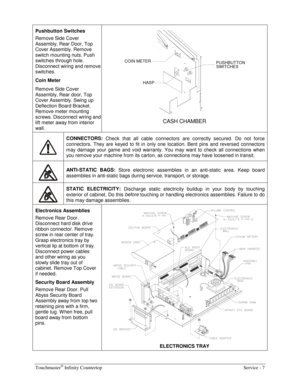

Pushbutton Switches
Remove Side Cover
Assembly, Rear Door, Top
Cover Assembly. Remove
switch mounting nuts. Push
switches through hole.
Disconnect wiring and remove
switches.
Coin Meter
Remove Side Cover
Assembly, Rear door, Top
Cover Assembly. Swing up
Deflection Board Bracket.
Remove meter mounting
screws. Disconnect wiring and
lift meter away from interior
wall.
COIN METER
PUSHBUTTON
SWITCHES
HASP

CASH CHAMBER
 CONNECTORS:
 Check...

Service - 8    Midway Amusement Games, LLC

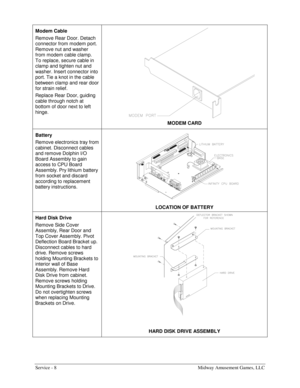

Modem Cable
Remove Rear Door. Detach
connector from modem port.
Remove nut and washer
from modem cable clamp.
To replace, secure cable in
clamp and tighten nut and
washer. Insert connector into
port. Tie a knot in the cable
between clamp and rear door
for strain relief.
Replace Rear Door, guiding
cable through notch at
bottom of door next to left
hinge.

MODEM CARD
Battery
Remove electronics tray from
cabinet. Disconnect cables
and...

Touchmaster® Infinity Countertop    Service - 9

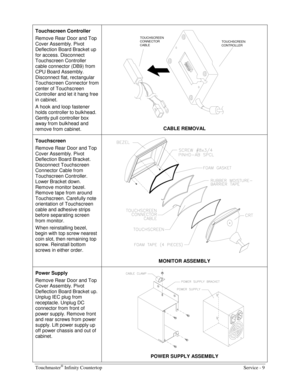

Touchscreen Controller
Remove Rear Door and Top
Cover Assembly. Pivot
Deflection Board Bracket up
for access. Disconnect
Touchscreen Controller
cable connector (DB9) from
CPU Board Assembly.
Disconnect flat, rectangular
Touchscreen Connector from
center of Touchscreen
Controller and let it hang free
in cabinet.
A hook and loop fastener
holds controller to bulkhead.
Gently pull controller box
away from bulkhead and
remove from cabinet....

Service - 10    Midway Amusement Games, LLC

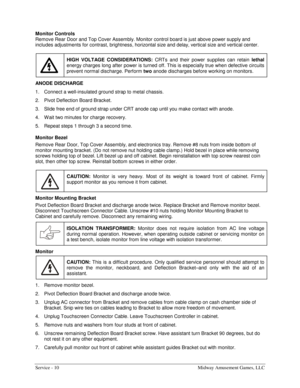

Monitor Controls
Remove Rear Door and Top Cover Assembly. Monitor control board is just above power supply and
includes adjustments for contrast, brightness, horizontal size and delay, vertical size and vertical center.

HIGH VOLTAGE CONSIDERATIONS:
 CRTs and their power supplies can retain lethal

energy charges long after power is turned off. This is especially true when defective circuits
prevent normal discharge. Perform two
 anode discharges...


CHAPTER
2
456
13

System

NOTICE:
This manual is subject to change without notice. Midway Amusement Games,
LLC reserves the right to make improvements in equipment function, design, or
components as progress in engineering or manufacturing methods warrants. Installing field
upgrade kits may also change the operating sequence or functions.


System - 2    Midway Amusement Games, LLC
Displays
game help
demo
Displays names
of record-
breaking high
scores for all
games.
Permits
language
selection, if
available.

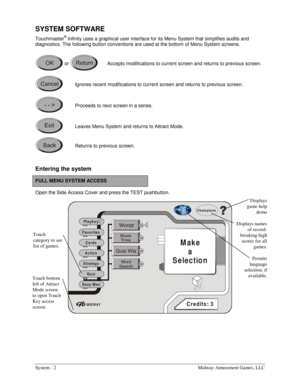

SYSTEM SOFTWARE
Touchmaster® Infinity uses a graphical user interface for its Menu System that simplifies audits and
diagnostics. The following button conventions are used at the bottom of Menu System screens.
 or
   Accepts modifications to current screen and returns to previous screen.

 Ignores recent modifications...
