Mitel Sx-50 Superset 4 User Guide

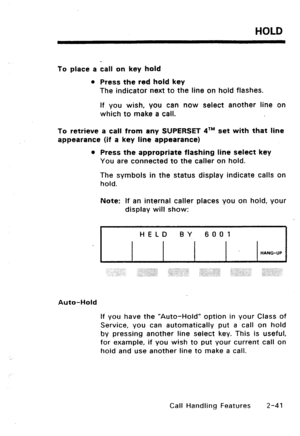

HOLD
To place a cali on key hold
l Press the red hold key
The indicator next to the line on hold flashes.
If you wish, you can now select another line on
which to make a call.
To retrieve a call from any SUPERSET 4”” set with that line
appearance (if a key line appearance)
l Press the appropriate flashing line select key
You are connected to the caller on hold.
The symbols in the status display indicate calls on
hold.
Note: If an internal caller places you on hold, your
display will show:...

HOLD

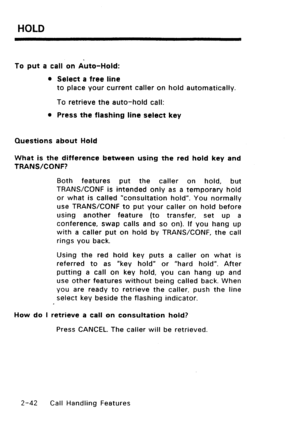

To put a call on iuto-Hold:
l Select a free line
to place your current caller on hold automatically.
To retrieve the auto-hold call:
l Press the flashing line select key
Questions about Hold
What is the difference between using the red hold key and
TRANSKONF?
Both features put the caller on hold, but
TRANSKONF is intended only as a temporary hold
or what is called “consultation hold”. You normally
use TRANSKONF to put your caller on hold before
using another feature (to transfer, set up...

HOLD
What if I forget that l have placed a call on hold?
After a period of time (up to 4 minutes, depending
on what is programmed in your telephone system),
the call you placed on hold will ring your
telephone.
Can I retrieve a held call from another extension other
than a SUPERSET qTM set with a key line appearance?
No, you cannot remotely retrieve a call placed on
hold by a
SUPERSET 4 from another extension,
except from a SUPERSET@ set with an appearance
of the same line.
Call Handling...

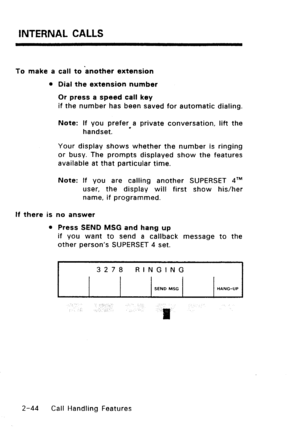

INTERNAL CALLS
To make a call to another extension
l Dial the extension number
Or press a speed call key
if the number has been saved for automatic dialing.
Note: If you prefer a private conversation, lift the
handset. *
Your display shows whether the number is ringing
or busy. The prompts displayed show the features
available at that particular time.
Note: If you are calling another SUPERSET qTM
user, the display will first show his/her
name, if programmed.
If there is no answer
l Press...

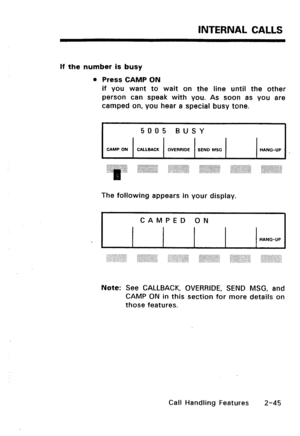

INTERNAL CALLS
If the number is busy
l Press CAMP ON
if you want to wait on the line until the other
person can speak with you. As soon as you are
camped on, you hear a special busy tone.
5005 BUSY
CAMP ON CALlBACK OVERRIDE SEND MSG HANG-UP
The following appears in your display.
CAMPED ON
HANG-UP
Note: See CALLBACK, OVERRIDE, SEND MSG, and
CAMP ON in this section for more details on
those features.
Call Handling Features
2-45

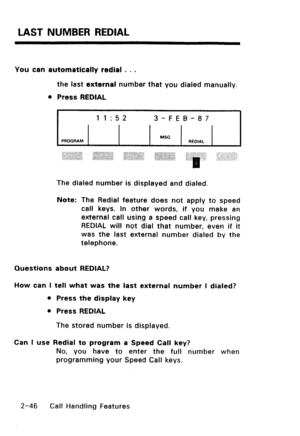

LAST NUMBER REDIAL
You can automatically redial . . .
the last external number that you dialed manually.
0 Press REDIAL
11 :52 3-FEB-87
PROGRAM MSG
REOIAL
The dialed number is displayed and dialed.
Note: The Radial feature does not apply to speed
call keys. In other words, if you make an
external call using a speed call key, pressing
REDIAL will not dial that number, even if it
was the last external number dialed by the
telephone.
Questions about REDIAL?
How can I tell what was the last...

MESSAGES

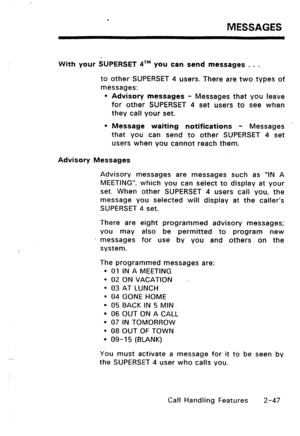

With your SUPERSET 4”” you can send messages . . .
to other SUPERSET 4 users. There are two types of
messages:
l Advisory messages - Messages that you leave
for other SUPERSET 4 set users to see when
they call your set.
l Message waiting notifications - Messages
that you can send to other SUPERSET 4 set
users when you cannot reach them.
Advisory Messages
Advisory messages are messages such as “IN A
MEETING”, which you can select to display at your
set. When other SUPERSET 4 users...

MESSAGES

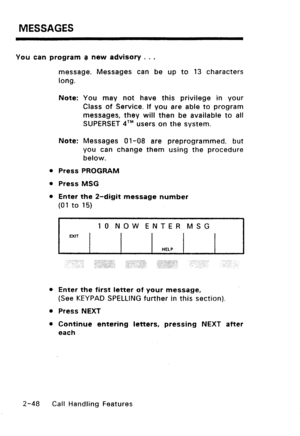

You can program 8 new advisory . . .
message. Messages can be up to 13 characters
long.
Note: You may not have this privilege in your
Class of Service. If you are able to program
messages, they will then be available to all
SUPERSET qTM users on the system.
Note: Messages 01-08 are preprogrammed, but
you can change them using the procedure
below.
l Press PROGRAM
l Press MSG
0 Enter the 2-digit message number
(01 to 15)
10 NOW ENTER MSG
EXIT
HELP
.
.: .,.y ,:., :. . .
,.. .:...

MESSAGES

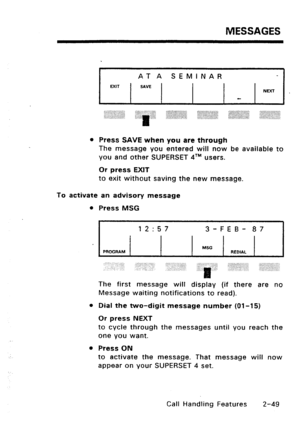

AT A SEMINAR
MIT / SAVE 1 /
‘.~:::::::::::‘.::::‘::::::,: . . . . . . . . . . . . . . . . . . . . .
,.: :.. ::.A::..:,..:‘::::::
..ii.li:~:::~:i:~::::.,::.~:,
l Press SAVE when you are through
The message you entered will now be available to
you and other SUPERSET qTM users.
Or press EXIT
to exit without saving the new message.
To activate an advisory message
l Press MSG
12:57 3-FEB- 87
MSG
PROGRAM REDIAL
The first message will display (if there are no
Message waiting...

MESSAGES

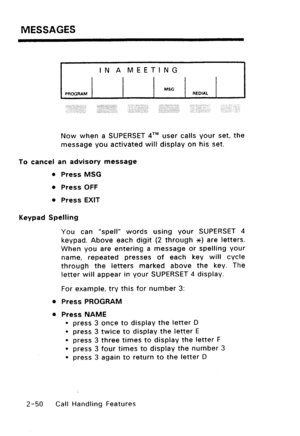

IN A MEETING
PROGRAM MSG
REDIAL
;.;:,. ‘. .,:..::. .$‘..:j:, :.,; ,‘j:,‘.::‘,“,“j, ‘,
‘,, :::“. ,, ., ,, .,.
.,, . :: ” ,.‘., ,.:. : ‘:
:”
Now when a SUPERSET qTM user calls your set, the
message you activated will display on his set.
To cancel an advisory message
l Press MSG
l Press OFF
l Press EXIT
Keypad Spelling
You can “spell” words using your SUPERSET 4
keypad. Above each digit (2 through XC) are letters.
When you are entering a message or spelling your
name, repeated...
