Mitsubishi XL2 Projector User Manual

EN – 1
ENGLISH
XL2
LCD
Projector
User Manual
MODEL   XL2U
FRANÇAIS
DEUTSCH
ITALIANO
ESPAÑOL

EN – 2
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
The exclamation point within an...

EN – 3
ENGLISH
Contents
Important safeguards ........................................................................... 4
Overview ............................................................................................... 6
Using the remote control ...................................................................... 8
Battery installation ......................................................................................................... 8
Installation...

EN – 4
Important safeguards
Please read all these instructions regarding your LCD
projector and retain them for future reference. Follow
all warnings and instructions marked on the LCD pro-
jector.
1. Read instructions
All the safety and operating instructions should
be read before the appliance is operated.
2. Retain instructions
The safety and operating instructions should be
retained for future reference.
3. Warnings
All warnings on the appliance and in the oper-
ating instructions should be adhered...

EN – 5
ENGLISH
WARNING:
Unplug immediately if there is
something wrong with your projector.
Do not operate if smoke, strange noise or odor comes
out of your projector. It might cause fire or electric
shock. In this case, unplug immediately and contact
your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An
inadvertent contact may result in an electric shock.
Except as specifically explained in the Owners
Guide, do not attempt to service this product
yourself. Please...

EN – 6
Overview
TEMP
LAMPVOLUMESOURCE
COMPUTER
VIDEO
AUTO
POSITION
MENUENTER
MUTE
654321
8 9 10 12711
5
9 11
8
6
10
7
1213
14
2
3
4
1
USBLS-VIDEO
VIDEO
AUDIO IN VIDEO IN
MAIN
AC IN
R COMPUTER INRS-232C
COMPUTER OUT
5 10 118976
4321

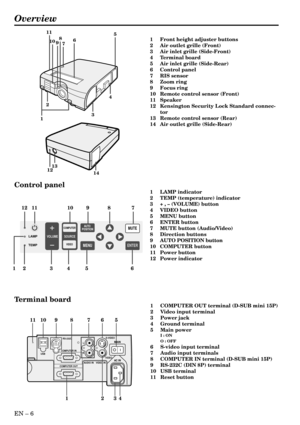

Control panel
Terminal board
1 Front height adjuster buttons
2 Air outlet grille (Front)
3 Air inlet grille (Side-Front)
4 Terminal board
5 Air inlet grille (Side-Rear)
6 Control panel
7 RIS sensor
8 Zoom ring
9 Focus ring
10 Remote control sensor (Front)
11 Speaker
12...

EN – 7
ENGLISH
Bottom side
2
11 Lamp cover
2 Adjustment foot
Caution:
Do not replace the lamp right after using the projector. The
lamp is very hot.
COMPUTER
VIDEO
KEYSTONE
EXPAND
VOLUME
LASER P in P
AUTO POSITION
–+
1
2
3
4
5
6
7
8
9
10
1120
19
18
21 17
16
15
14
13
12
12
MENUENTER
MUTESTILL16 : 9R-CLICK

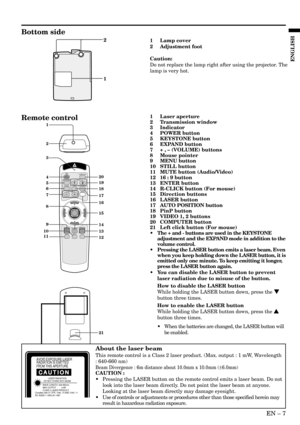

Remote control1 Laser aperture
2 Transmission window
3 Indicator
4 POWER button
5 KEYSTONE button
6 EXPAND button
7 + , – (VOLUME) buttons
8 Mouse pointer
9 MENU button
10 STILL button
11 MUTE button...

EN – 8
Battery installation
Use two AA size batteries.

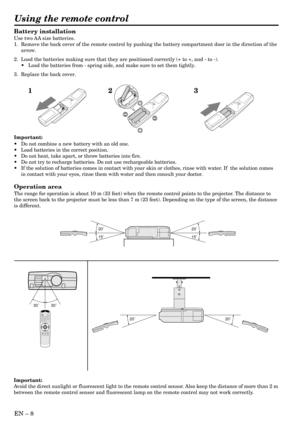

1. Remove the back cover of the remote control by pushing the battery compartment door in the direction of the
arrow.
2. Load the batteries making sure that they are positioned correctly (+ to +, and - to -).
•Load the batteries from - spring side, and make sure to set them tightly.
3. Replace the back cover.
Important:
•Do not combine a new battery with an old one.
•Load batteries in the correct position.
•Do not heat, take apart, or throw batteries...

EN – 9
ENGLISH
Installation
Orientation of the projector
Picture size can be set by changing the distance between the screen and the projector.
Front projection
To find the approximate distance be-
tween the projector and screen:
Multiply the width of the screen
x 1.8 (min.) , Multiply the width of the
screen
x 2.2 (max.).
• Refer to the chart for recommended
distances in maximum zoom and
minimum zoom.
Front projection, ceiling mount
For ceiling mount, you need the ceiling mount kit.
Ask a specialist...

EN – 10
Basic connections
This projector can be connected to equipment such as PC, VCRs, video cameras and DVD players.
Important:
•Make sure that your equipment is turned off before connection.
•Plug in firmly and unplug by holding the plug, not by pulling the AC power cord.
•If connected units are set too close to one another, the image may be affected.
•Refer to the user manual of each component for details of connections.

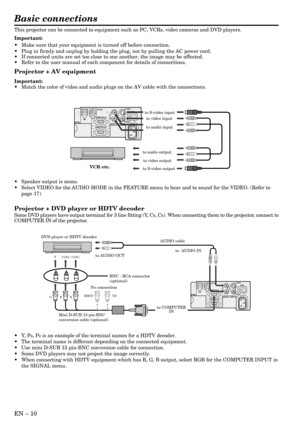

Projector + AV equipment
Important:
•Match the color of video and audio plugs...
