Mitsubishi XL2 Projector User Manual

EN – 11
ENGLISH

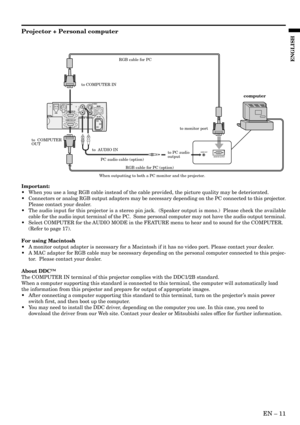

USBLS-VIDEO
VIDEO
AUDIO IN VIDEO IN
MAIN
AC IN
R COMPUTER INRS-232C
COMPUTER OUT
AUDIO OUT
MONITOR OUTPUT
to COMPUTER IN
to  AUDIO INto monitor port
to  COMPUTER
OUT
to PC audio
output
PC audio cable (option)
When outputting to both a PC monitor and the projector.RGB cable for PC
RGB cable for PC (option)
computer
Projector + Personal computer
Important:
•When you use a long RGB cable instead of the cable provided, the picture quality may be deteriorated.
•Connectors or analog RGB output...

EN – 12
Adjustment foot
screen
Preparing the projector for operation
Getting ready for projection
1. Connect the power cord provided to the projector.
2. Connect the power cord to the wall power outlet.
3. Remove the lens cap.
Warning:
•Do not look directly into the lens when projector is
“ON”.
•The lens cap is for protecting the lens.  If you leave
the power on with the cap on, the cap may be warped.
Please remove the lens cap when you turn the power
on.
•This projector is equipped with the power cords...

EN – 13
ENGLISH
To operate projector power ON
• When the lamp indicator is blinking red, the lamp
should be replaced.  Replace the lamp. See pages 22
and 25.
• The picture might not be of optimum performance
in extreme hot or cold conditions. (The projector is
not malfunctioning.)
4.  Select the desired external input source by using
the COMPUTER, VIDEO 1 or 2 button on the  re-
mote control or the COMPUTER or VIDEO button
on the control panel.
• Pressing the VIDEO button on the control panel
repeatedly...

EN – 14
30
To operate projector power ON (Continue)
Turning off the projector
7. Press the POWER button.
The message “POWER OFF? YES : PRESS AGAIN”
appears on the screen.
•To exit from this mode,  press any button except
the POWER button. (Some buttons on the remote
control do not work for exit from this mode.)
8. Press the POWER button again.
The light source lamp will be turned off.
Pressing the POWER button second time  will shut
off the light source lamp, but the exhaust fan con-
tinues to operate...

EN – 15
ENGLISH
Basic operation
Several settings can be adjusted using Menu.
EXAMPLE: Auto power off time setting
1.  Press the MENU button.
2.  Press the $ or % button to select the INSTALLA-
TION menu.
3.  Press the ENTER button (or } button).4.  Press the { or } button to select AUTO POWER
OFF.
5.  Press the $ or % button to adjust auto power off
time.
6.  Exit the menu system by pressing the MENU but-
ton several times.
• If the menu operation is not working, press the
RESET button on the terminal...

EN – 16
CONTRAST
0
BRIGHTNESS 0
STANDARD
0
COLOR
AUTO0
XGA60
COMPUTEROFF
TINT
0SHARPNESS
COLOR TEMP.
GAMMA MODE COLOR MATRIX sRGB
opt.
IMAGE REVERSE
OFF AUTO POWER
ONOFFAUTO POWER
OFF
RIS OFF
ON
INSTALLATION
ON
BACK COLOR
OFF BLUE
XGA60
SPLASH SCREEN
opt.
MUTE MODE
BLACK
STANDARD LAMP MODE
KEYSTONE0
Menu operation (continued)
1 IMAGE
CONTRAST ........ Adjusts the picture contrast. The contrast becomes higher as
the number increases.
BRIGHTNESS .... Adjusts the image brightness. The image becomes...

EN – 17
ENGLISH
MEMORY CALL
SIGNAL
AUTO
HORIZ. POSITION 0
VERT. POSITION 0
TRACKING 0
COMPUTER INPUT RGB
FINE SYNC. 0
HOLD AUTO
USERMEMORIZEDELETE DEFAULT
R G BR G B
A
U
XGA60opt.
FEATURE
XGA60opt.
MENU POSITION
EXPAND MODE
FRAME POSI.
A A
AA
1.
1.
3.
OFF
ON OFF
AUTO
3D CineView
English
SCART INPUTVIDEO SIGNAL
?
ANAMORPHIC
RESET ALL LANGUAGE
AË
OK
AUDIO MODECOMPUTER
VIDEO
3 FEATURE
MENU POSITION .....Use to select the position of the menu on the screen,
(upper left) or  (lower right).
EXPAND MODE...

EN – 18
Adjusting the image
You can adjust the picture by using the IMAGE menu.
To control the level of white-to-black in the image :
Adjust CONTRAST in IMAGE menu.  Press the %
button to increase the contrast and the $ button to
reduce it.
To control the light level of the image :
Adjust BRIGHTNESS in IMAGE menu.  Press the
% button to lighten the image and the $ button to
darken the image.
To determine the intensity of the color :
Adjust COLOR in IMAGE menu.  Press the %
button to increase the amount...

EN – 19
ENGLISH
Adjustment from personal computer
Although this projector sets proper signal systems
automatically for the image signal from personal
computers, it cannot be applied to some of personal
computers.  In this case, press the AUTO POSITION
button.  If the images are still not projected correctly,
use the MENU display to adjust the projected im-
ages.
Image moved to right or left :
Adjust HORIZ. POSITION in SIGNAL menu.  Press
the % button to move the image to left.  Press the $
button to move...

EN – 20
Advanced features for presentation
Expand
By pressing the EXPAND button on the remote con-
trol, you can magnify the detailed image of the picture.
You can also view the screen displaying the picture as
its original size (native resolution display).
Setting the Expand mode
1. Press the MENU button.
2. Press the $ or % to select the FEATURE menu.
3. Press the ENTER button.
4. Press the  { or } button to select EXPAND MODE
or FRAME POSI.
5. Press the $ or % to set the EXPAND MODE or
FRAME POSI.
6....
