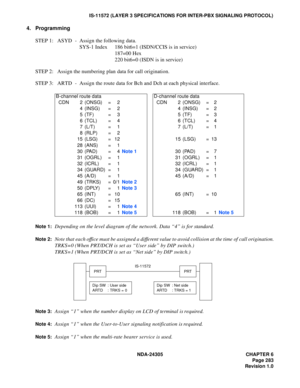

NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 6
Page 283
Revision 1.0
IS-11572 (LAYER 3 SPECIFICATIONS FOR INTER-PBX SIGNALING PROTOCOL)
4. Programming
STEP 1: ASYD - Assign the following data.
SYS-1 Index 186 bit6=1 (ISDN/CCIS is in service)
187=00 Hex
220 bit6=0 (ISDN is in service)
STEP 2: Assign the numbering plan data for call origination.
STEP 3: ARTD - Assign the route data for Bch and Dch at each physical interface.
Note 1:Depending on the level diagram of the network. Data “4” is for standard.
Note 2:Note that each office...

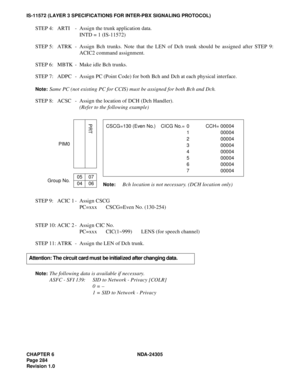

CHAPTER 6 NDA-24305
Pag e 2 84
Revision 1.0
IS-11572 (LAYER 3 SPECIFICATIONS FOR INTER-PBX SIGNALING PROTOCOL)
STEP 4: ARTI - Assign the trunk application data.
INTD = 1 (IS-11572)
STEP 5: ATRK - Assign Bch trunks. Note that the LEN of Dch trunk should be assigned after STEP 9:
ACIC2 command assignment.
STEP 6: MBTK - Make idle Bch trunks.
STEP 7: ADPC - Assign PC (Point Code) for both Bch and Dch at each physical interface.
Note:Same PC (not existing PC for CCIS) must be assigned for both Bch and Dch....

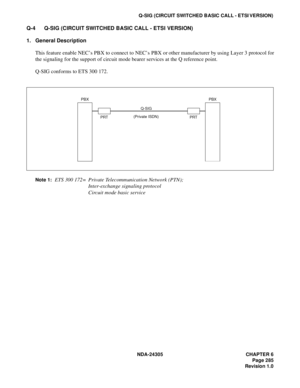

NDA-24305 CHAPTER 6
Page 285
Revision 1.0
Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)
Q-4 Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)
1. General Description
This feature enable NEC’s PBX to connect to NEC’s PBX or other manufacturer by using Layer 3 protocol for
the signaling for the support of circuit mode bearer services at the Q reference point.
Q-SIG conforms to ETS 300 172.
Note 1:ETS 300 172= Private Telecommunication Network (PTN);
Inter-exchange signaling protocol
Circuit mode basic...

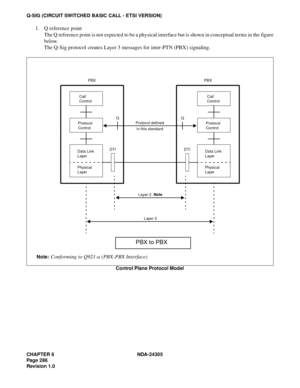

CHAPTER 6 NDA-24305
Pag e 2 86
Revision 1.0
Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)
1. Q reference point
The Q reference point is not expected to be a physical interface but is shown in conceptual terms in the figure
below.
The Q-Sig protocol creates Layer 3 messages for inter-PTN (PBX) signaling.
Control Plane Protocol Model
Note:Conforming to Q921-a (PBX-PBX Interface)
PBX
Call
Control
Protocol
Control
Data Link
Layer
Physical
LayerPBX
Protocol
Control
Data Link
Layer
Physical
Layer DTI...

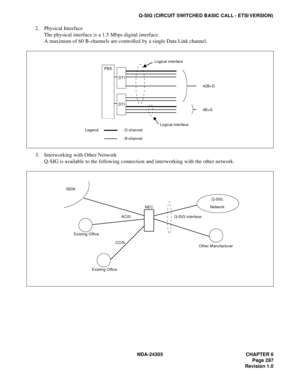

NDA-24305 CHAPTER 6
Page 287
Revision 1.0
Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)
2. Physical Interface
The physical interface is a 1.5 Mbps digital interface.
A maximum of 60 B-channels are controlled by a single Data Link channel.
3. Interworking with Other Network
Q-SIG is available to the following connection and interworking with the other network.
DTI
42B+D
4B+D
Logical interface
Logical interface
DTI
Legend: : D-channel
: B-channel
PBX
ISDN
Existing OfficeACIS
CCIS
Existing OfficeOther...

CHAPTER 6 NDA-24305
Pag e 2 88
Revision 1.0
Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)

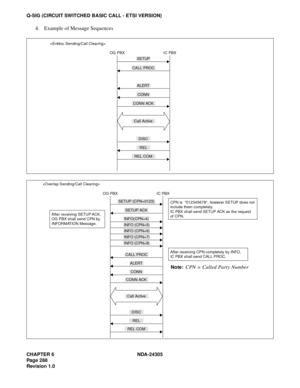

4. Example of Message Sequences

OG PBX IC PBX
SETUP
CONN ACK
DISC
REL COM Call Active CALL PROC
ALERT
CONN
REL

OG PBX IC PBX
SETUP ACK
SETUP (CPN=0123)
INFO(CPN=4)
INFO (CPN=5)
INFO (CPN=6)
INFO (CPN=7)
INFO (CPN=8)
CONN ACK
DISC
REL COM Call Active CALL PROC
ALERT
CONN
REL
After receiving SETUP ACK,
OG PBX shall send CPN by
INFORMATION Message.
CPN is  012345678, however SETUP does not
include them...

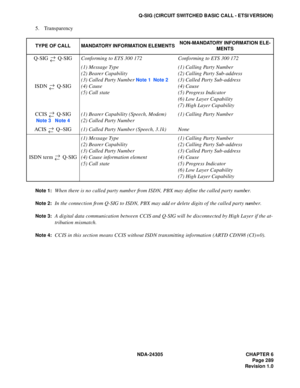

NDA-24305 CHAPTER 6
Page 289
Revision 1.0
Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)
5. Transparency
Note 1:When there is no called party number from ISDN, PBX may define the called party number.
Note 2:In the connection from Q-SIG to ISDN, PBX may add or delete digits of the called party number.
Note 3:A digital data communication between CCIS and Q-SIG will be disconnected by High Layer if the at-
tribution mismatch.
Note 4:CCIS in this section means CCIS without ISDN transmitting information...

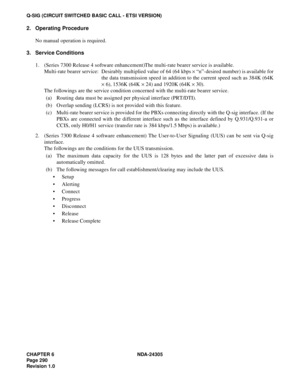

CHAPTER 6 NDA-24305
Pag e 2 90
Revision 1.0
Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)
2. Operating Procedure
No manual operation is required.
3. Service Conditions
1. (Series 7300 Release 4 software enhancement)The multi-rate bearer service is available.
Multi-rate bearer service: Desirably multiplied value of 64 (64 kbps × “n”-desired number) is available for
the data transmission speed in addition to the current speed such as 384K (64K
× 6), 1536K (64K × 24) and 1920K (64K × 30).
The...

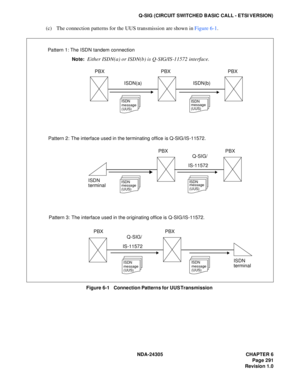

NDA-24305 CHAPTER 6
Page 291
Revision 1.0
Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)
(c) The connection patterns for the UUS transmission are shown in Figure 6-1.
Figure 6-1   Connection Patterns for UUS Transmission
Pattern 1: The ISDN tandem connection
Note:
Either ISDN(a) or ISDN(b) is Q-SIG/IS-11572 interface.
PBX                                          PBX                                          PBX
ISDN(a)                                      ISDN(b)
Pattern 2: The interface used in the...

CHAPTER 6 NDA-24305
Pag e 2 92
Revision 1.0
Q-SIG (CIRCUIT SWITCHED BASIC CALL - ETSI VERSION)

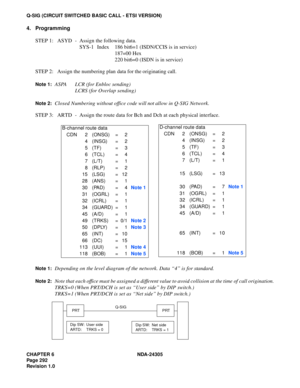

4. Programming
STEP 1: ASYD - Assign the following data.
SYS-1 Index 186 bit6=1 (ISDN/CCIS is in service)
187=00 Hex
220 bit6=0 (ISDN is in service)
STEP 2: Assign the numbering plan data for the originating call.
Note 1:ASPA LCR (for Enbloc sending)
LCRS (for Overlap sending)
Note 2:Closed Numbering without office code will not allow in Q-SIG Network.
STEP 3: ARTD - Assign the route data for Bch and Dch at...
