NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 6
Page 233
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT
 Digital Display – Trunk – CCIS [D-73]
 Direct-In Termination – CCIS [D-74]
 Distinctive Ringing – CCIS [D-75]
 Do Not Disturb – D
term – CCIS [D-76D]
 Data Hotline – CCIS [D-86]
Note
 Dialed Number Display – Recall – CCIS [D-91]
 Dual Hold D
term – CCIS [D-93D]
 Executive Right-of-Way – CCIS [E-8]
 Elapsed Time Display – CCIS [E-9]
 E-911 ANI Unified Number of Digits – CCIS [E-20]
 Flexible Numbering of Stations –...

CHAPTER 6 NDA-24305
Pag e 2 34
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT

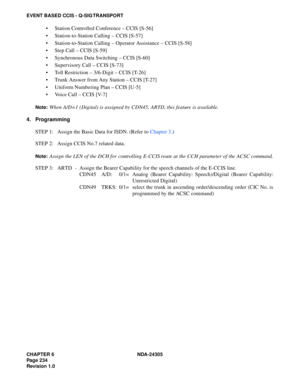

 Station Controlled Conference – CCIS [S-56]
 Station-to-Station Calling – CCIS [S-57]
 Station-to-Station Calling – Operator Assistance – CCIS [S-58]
 Step Call – CCIS [S-59]
 Synchronous Data Switching – CCIS [S-60]
 Supervisory Call – CCIS [S-73]
 Toll Restriction – 3/6-Digit – CCIS [T-26]
 Trunk Answer from Any Station – CCIS [T-27]
 Uniform Numbering Plan – CCIS [U-5]
 Voice Call – CCIS [V-7]
Note:When A/D=1...

NDA-24305 CHAPTER 6
Page 235
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT

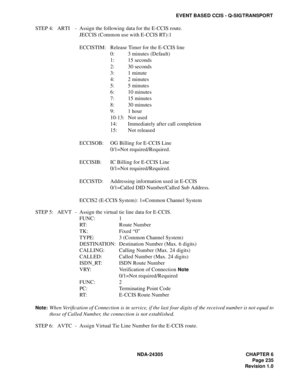

STEP 4: ARTI - Assign the following data for the E-CCIS route.
JECCIS (Common use with E-CCIS RT):1
ECCISTIM: Release Timer for the E-CCIS line
0: 3 minutes (Default)
1: 15 seconds
2: 30 seconds
3: 1 minute
4: 2 minutes
5: 5 minutes
6: 10 minutes
7: 15 minutes
8: 30 minutes
9: 1 hour
10-13: Not used
14: Immediately after call completion
15: Not released
ECCISOB: OG Billing for E-CCIS Line
0/1=Not required/Required.
ECCISIB: IC...

CHAPTER 6 NDA-24305
Pag e 2 36
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT

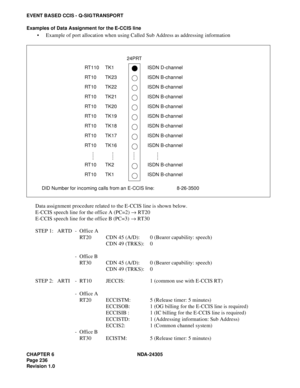

Examples of Data Assignment for the E-CCIS line
 Example of port allocation when using Called Sub Address as addressing information
Data assignment procedure related to the E-CCIS line is shown below.
E-CCIS speech line for the office A (PC=2) → RT20
E-CCIS speech line for the office B (PC=3) → RT30
STEP 1: ARTD -  Office A
RT20 CDN 45 (A/D): 0 (Bearer capability: speech)
CDN 49 (TRKS):  0
- Office B
RT30 CDN 45 (A/D):  0...

NDA-24305 CHAPTER 6
Page 237
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT

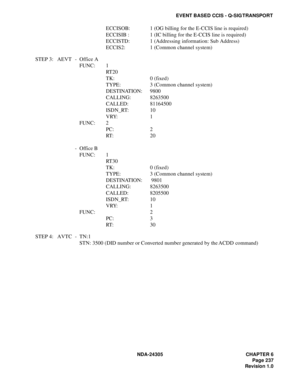

ECCISOB: 1 (OG billing for the E-CCIS line is required)
ECCISIB : 1 (IC billing for the E-CCIS line is required)
ECCISTD: 1 (Addressing information: Sub Address)
ECCIS2: 1 (Common channel system)
STEP 3: AEVT - Office A
FUNC: 1
RT 2 0
TK: 0 (fixed)
TYPE:  3 (Common channel system)
DESTINATION: 9800
CALLING: 8263500
CALLED: 81164500
ISDN_RT: 10
VRY: 1
FUNC: 2
PC: 2
RT: 2 0
- Office B
FUNC: 1
RT 3 0
TK: 0 (fixed)
TYPE:  3 (Common...

CHAPTER 6 NDA-24305
Pag e 2 38
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT

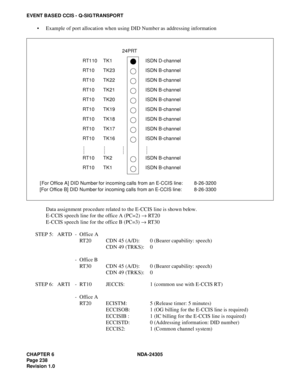

 Example of port allocation when using DID Number as addressing information
Data assignment procedure related to the E-CCIS line is shown below.
E-CCIS speech line for the office A (PC=2) → RT 2 0
E-CCIS speech line for the office B (PC=3) → RT 3 0
STEP 5: ARTD -  Office A
RT20 CDN 45 (A/D):  0 (Bearer capability: speech)
CDN 49 (TRKS): 0
- Office B
RT30 CDN 45 (A/D):  0 (Bearer capability: speech)
CDN 49 (TRKS):  0
STEP 6:...

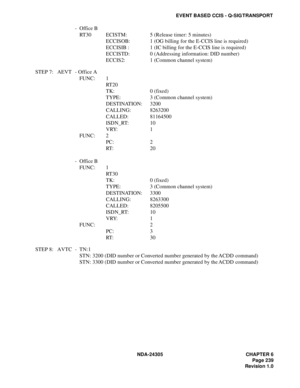

NDA-24305 CHAPTER 6
Page 239
Revision 1.0
EVENT BASED CCIS - Q-SIG TRANSPORT
- Office B
RT30 ECISTM: 5 (Release timer: 5 minutes)
ECCISOB: 1 (OG billing for the E-CCIS line is required)
ECCISIB : 1 (IC billing for the E-CCIS line is required)
ECCISTD: 0 (Addressing information: DID number)
ECCIS2: 1 (Common channel system)
STEP 7: AEVT - Office A
FUNC: 1
RT 2 0
TK: 0 (fixed)
TYPE:  3 (Common channel system)
DESTINATION: 3200
CALLING: 8263200
CALLED: 81164500
ISDN_RT: 10
VRY: 1
FUNC: 2
PC: 2
RT: 2 0
-...

CHAPTER 6 NDA-24305
Pag e 2 40
Revision 1.0
CALL COMPLETION ON NO REPLY (CCNR)

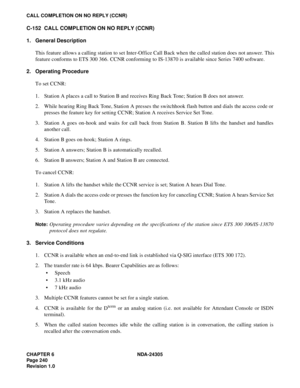

C-152 CALL COMPLETION ON NO REPLY (CCNR)
1. General Description
This feature allows a calling station to set Inter-Office Call Back when the called station does not answer. This
feature conforms to ETS 300 366. CCNR conforming to IS-13870 is available since Series 7400 software.
2. Operating Procedure
To set CCNR:
1. Station A places a call to Station B and receives Ring Back Tone; Station B does not answer.
2. While hearing...

NDA-24305 CHAPTER 6
Page 241
Revision 1.0
CALL COMPLETION ON NO REPLY (CCNR)

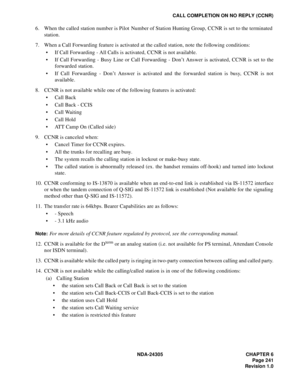

6. When the called station number is Pilot  Number of Station Hunting Group, CCNR is set to the terminated
station.
7. When a Call Forwarding feature is activated at the called station, note the following conditions:
 If Call Forwarding - All Calls is activated, CCNR is not available.
 If Call Forwarding - Busy Line or Call Forwarding - Don’t Answer is activated, CCNR is set to the
forwarded station.
 If Call Forwarding -...

CHAPTER 6 NDA-24305
Pag e 2 42
Revision 1.0
CALL COMPLETION ON NO REPLY (CCNR)

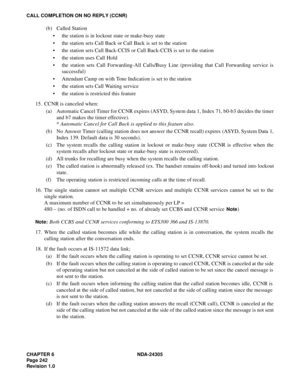

(b) Called Station
 the station is in lockout state or make-busy state
 the station sets Call Back or Call Back is set to the station
 the station sets Call Back-CCIS or Call Back-CCIS is set to the station
 the station uses Call Hold
 the station sets Call Forwarding-All Calls/Busy Line (providing that Call Forwarding service is
successful)
 Attendant Camp on with Tone Indication is set to the station
 the station...
