NEC Neax 2400 Ipx Isdn Feature Programming Manual

NDA-24305 CHAPTER 6
Page 253
Revision 1.0

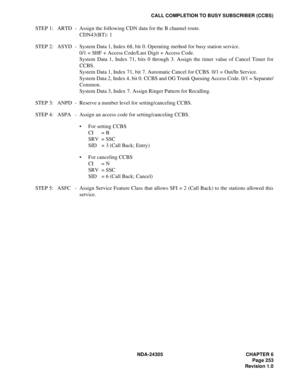

CALL COMPLETION TO BUSY SUBSCRIBER (CCBS)
STEP 1: ARTD - Assign the following CDN data for the B channel route.
CDN43(BT): 1
STEP 2: ASYD - System Data 1, Index 68, bit 0. Operating method for busy station service.
0/1 = SHF + Access Code/Last Digit + Access Code.
System Data 1, Index 71, bits 0 through 3. Assign the timer value of Cancel Timer for
CCBS.
System Data 1, Index 71, bit 7. Automatic Cancel for CCBS. 0/1 = Out/In Service.
System Data 2, Index 4, bit...

CHAPTER 6 NDA-24305
Pag e 2 54
Revision 1.0

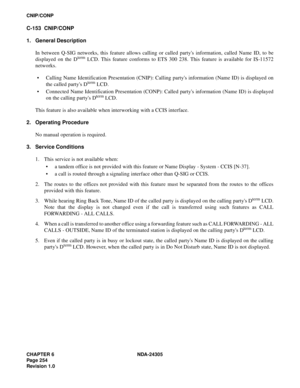

CNIP/CONP
C-153 CNIP/CONP
1. General Description
In between Q-SIG networks, this feature allows calling or called partys information, called Name ID, to be
displayed on the D
term LCD. This feature conforms to ETS 300 238. This feature is available for IS-11572
networks.
 Calling Name Identification Presentation (CNIP): Calling partys information (Name ID) is displayed on
the called partys D
term LCD.
 Connected Name Identification Presentation (CONP): Called...

NDA-24305 CHAPTER 6
Page 255
Revision 1.0
CNIP/CONP

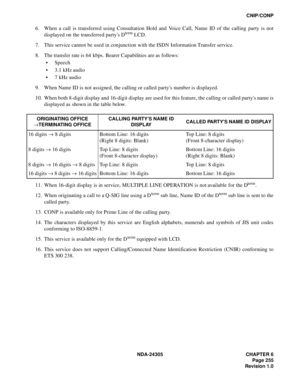

6. When a call is transferred using Consultation Hold and Voice Call, Name ID of the calling party is not
displayed on the transferred partys Dterm LCD.
7. This service cannot be used in conjunction with the ISDN Information Transfer service.
8. The transfer rate is 64 kbps. Bearer Capabilities are as follows:
Speech
 3.1 kHz audio
 7 kHz audio
9. When Name ID is not assigned, the calling or called partys number is displayed.
10. When both 8-digit...

CHAPTER 6 NDA-24305
Pag e 2 56
Revision 1.0
CNIP/CONP

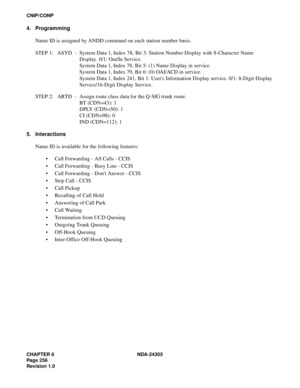

4. Programming
Name ID is assigned by ANDD command on each station number basis.
STEP 1: ASYD - System Data 1, Index 78, Bit 3: Station Number Display with 8-Character Name
Display. 0/1: Out/In Service.
System Data 1, Index 78, Bit 5: (1) Name Display in service.
System Data 1, Index 79, Bit 6: (0) OAI/ACD in service.
System Data 1, Index 241, Bit 1: Users Information Display service. 0/1: 8-Digit Display
Service/16-Digit Display Service.
STEP 2:...

NDA-24305 CHAPTER 6
Page 257
Revision 1.0
CALL FORWARDING SUPPLEMENTARY SERVICE (SS-CF) WITH REROUTING
C-158 CALL FORWARDING SUPPLEMENTARY SERVICE (SS-CF) WITH REROUTING

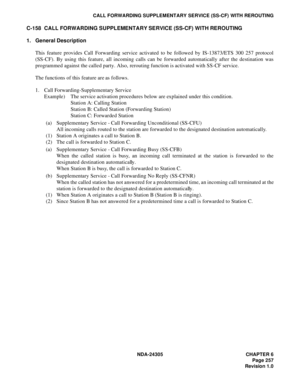

1. General Description
This feature provides Call Forwarding service activated to be followed by IS-13873/ETS 300 257 protocol
(SS-CF). By using this feature, all incoming calls can be forwarded automatically after the destination was
programmed against the called party. Also, rerouting function is activated with SS-CF service.
The...

CHAPTER 6 NDA-24305
Pag e 2 58
Revision 1.0
CALL FORWARDING SUPPLEMENTARY SERVICE (SS-CF) WITH REROUTING

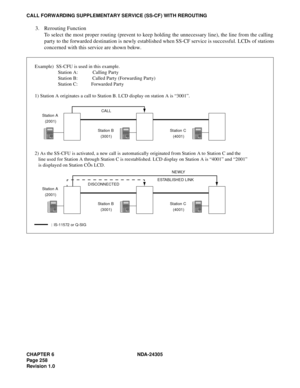

3. Rerouting Function
To select the most proper routing (prevent to keep holding the unnecessary line), the line from the calling
party to the forwarded destination is newly established when SS-CF service is successful. LCDs of stations
concerned with this service are shown below.
2) As the SS-CFU is activated, a new call is automatically originated from Station A to Station C and the
   line used...

NDA-24305 CHAPTER 6
Page 259
Revision 1.0
CALL FORWARDING SUPPLEMENTARY SERVICE (SS-CF) WITH REROUTING

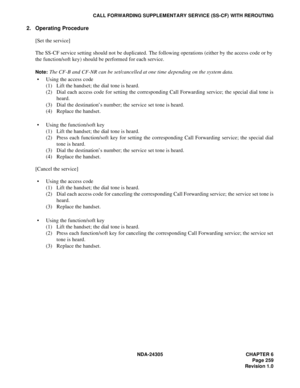

2. Operating Procedure
[Set the service]
The SS-CF service setting should not be duplicated.  The following operations (either by the access code or by
the function/soft key) should be performed for each service.
Note:The CF-B and CF-NR can be set/cancelled at one time depending on the system data.
 Using the access code
(1) Lift the handset; the dial tone is heard.
(2) Dial each access code for...

CHAPTER 6 NDA-24305
Pag e 2 60
Revision 1.0
CALL FORWARDING SUPPLEMENTARY SERVICE (SS-CF) WITH REROUTING

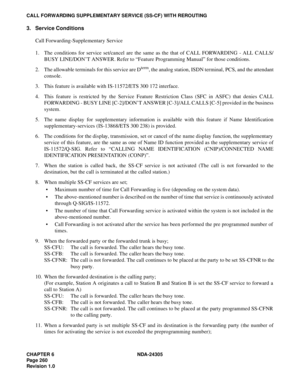

3. Service Conditions
Call Forwarding-Supplementary Service
1. The conditions for service set/cancel are the same as the that of CALL FORWARDING - ALL CALLS/
BUSY LINE/DON’T ANSWER. Refer to “Feature Programming Manual” for those conditions.
2. The allowable terminals for this service are D
term, the analog station, ISDN terminal, PCS, and the attendant
console.
3. This feature is available with...

NDA-24305 CHAPTER 6
Page 261
Revision 1.0
CALL FORWARDING SUPPLEMENTARY SERVICE (SS-CF) WITH REROUTING

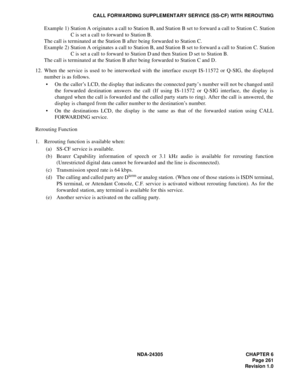

Example 1) Station A originates a call to Station B, and Station B set to forward a call to Station C. Station
C is set a call to forward to Station B.
The call is terminated at the Station B after being forwarded to Station C.
Example 2) Station A originates a call to Station B, and Station B set to forward a call to Station C. Station
C is set a call to forward to Station D and then Station D set to...

CHAPTER 6 NDA-24305
Pag e 2 62
Revision 1.0
CALL FORWARDING SUPPLEMENTARY SERVICE (SS-CF) WITH REROUTING

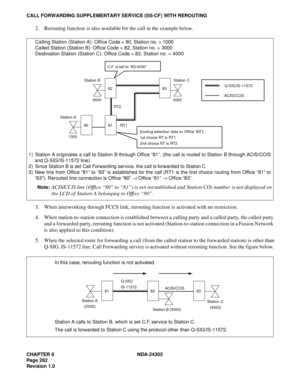

2. Rerouting function is also available for the call in the example below.
3. When interworking through FCCS link, rerouting function is activated with no restriction.
4. When station-to-station connection is established between a calling party and a called party, the called party
and a forwarded party, rerouting function is not activated (Station-to-station connection in a Fusion Network
is also...
