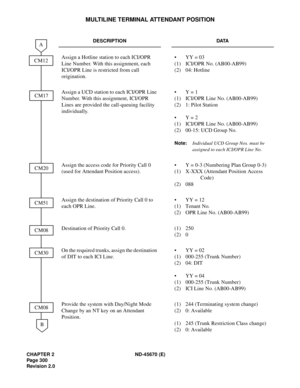

NEC Neax2000 Ivs Feature Programming Manual

CHAPTER 2 ND-45670 (E)
Pag e 3 00
Revision 2.0
MULTILINE TERMINAL ATTENDANT POSITION
DESCRIPTION DATA
Assign a Hotline station to each ICI/OPR
Line Number. With this assignment, each
ICI/OPR Line is restricted from call
origination. •  YY = 03
(1)  ICI/OPR No. (AB00-AB99)
(2) 04: Hotline
Assign a UCD station to each ICI/OPR Line
Number. With this assignment, ICI/OPR
Lines are provided the call-queuing facility
individually.• Y = 1
(1)  ICI/OPR Line No. (AB00-AB99)
(2)  1: Pilot Station
• Y = 2...

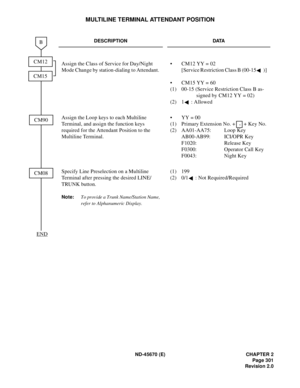

ND-45670 (E) CHAPTER 2
Page 301
Revision 2.0
MULTILINE TERMINAL ATTENDANT POSITION
DESCRIPTION DATA
Assign the Class of Service for Day/Night
Mode Change by station-dialing to Attendant. •  CM12 YY = 02
[Service Restriction Class B (00-15 )]
•  CM15 YY = 60
(1)  00-15 (Service Restriction Class B as-
signed by CM12 YY = 02)
(2)  1 : Allowed
Assign the Loop keys to each Multiline
Terminal, and assign the function keys
required for the Attendant Position to the
Multiline Terminal.•  YY = 00
(1)...

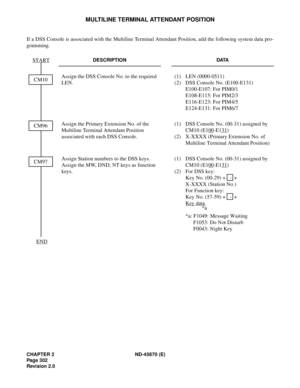

CHAPTER 2 ND-45670 (E)
Pag e 3 02
Revision 2.0
MULTILINE TERMINAL ATTENDANT POSITION
If a DSS Console is associated with the Multiline Terminal Attendant Position, add the following system data pro-
gramming.
DESCRIPTION DATA
Assign the DSS Console No. to the required
LEN. (1) LEN (0000-0511)
(2)  DSS Console No. (E100-E131)
E100-E107: For PIM0/1
E108-E115: For PIM2/3
E116-E123: For PIM4/5
E124-E131: For PIM6/7
Assign the Primary Extension No. of the
Multiline Terminal Attendant Position...

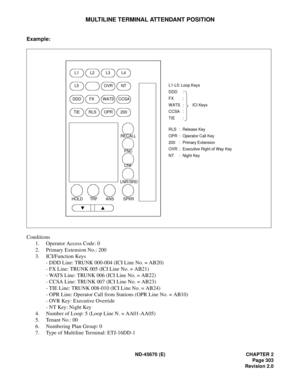

ND-45670 (E) CHAPTER 2
Page 303
Revision 2.0
MULTILINE TERMINAL ATTENDANT POSITION
Example:
Conditions
1. Operator Access Code: 0
2. Primary Extension No.: 200
3. ICI/Function Keys
- DDD Line: TRUNK 000-004 (ICI Line No. = AB20)
- FX Line: TRUNK 005 (ICI Line No. = AB21)
- WATS Line: TRUNK 006 (ICI Line No. = AB22)
- CCSA Line: TRUNK 007 (ICI Line No. = AB23)
- TIE Line: TRUNK 008-010 (ICI Line No. = AB24)
- OPR Line: Operator Call from Stations (OPR Line No. = AB10)
- OVR Key: Executive Override
-...

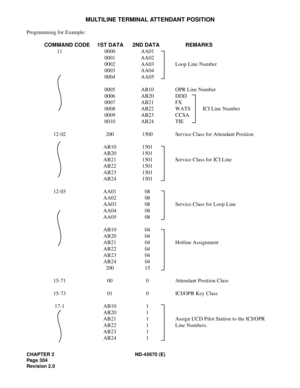

CHAPTER 2 ND-45670 (E)
Pag e 3 04
Revision 2.0
MULTILINE TERMINAL ATTENDANT POSITION
Programming for Example:
COMMAND CODE
 1ST DATA
 2ND DATA
 REMARKS

11 0000 AA01
0001 AA02
0002 AA03 Loop Line Number
0003 AA04
0004 AA05
0005 AB10 OPR Line Number
0006 AB20 DDD
0007 AB21 FX
0008 AB22 WATS  ICI Line Number
0009 AB23 CCSA
0010 AB24 TIE
12-02 200 1500 Service Class for Attendant Position
AB10 1501
AB20 1501
AB21 1501 Service Class for ICI Line
AB22 1501
AB23 1501
AB24 1501
12-03 AA01 08
AA02 08
AA03...

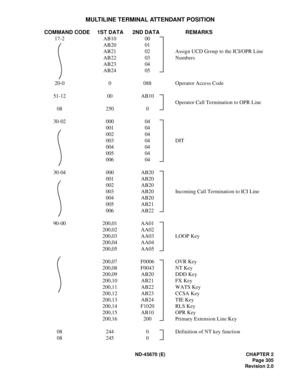

ND-45670 (E) CHAPTER 2
Page 305
Revision 2.0
MULTILINE TERMINAL ATTENDANT POSITION
COMMAND CODE
 1ST DATA
 2ND DATA
 REMARKS

17-2 AB10 00
AB20 01
AB21 02 Assign UCD Group to the ICI/OPR Line
 AB22 03 Numbers
AB23 04
AB24 05
20-0 0 088 Operator Access Code
51-12 00 AB10
Operator Call Termination to OPR Line
08 250 0
30-02 000 04
001 04
002 04
003 04 DIT
004 04
005 04
006 04
30-04 000 AB20
001 AB20
002 AB20
003 AB20 Incoming Call Termination to ICI Line
004 AB20
005 AB21
006 AB22
90-00 200,01 AA01...

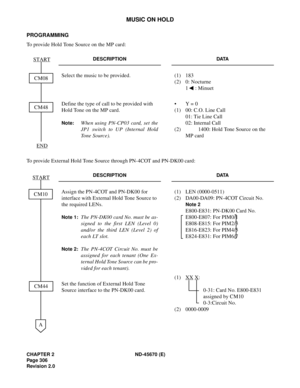

CHAPTER 2 ND-45670 (E)
Pag e 3 06
Revision 2.0
MUSIC ON HOLD
PROGRAMMING
To provide Hold Tone Source on the MP card:
To provide External Hold Tone Source through PN-4COT and PN-DK00 card:
DESCRIPTION DATA
Select the music to be provided. (1) 183
(2) 0: Nocturne
1 : Minuet
Define the type of call to be provided with
Hold Tone on the MP card.
Note:When using PN-CP03 card, set the
JP1 switch to UP (Internal Hold
Tone Source).•Y = 0
(1) 00: C.O. Line Call
01: Tie Line Call
02: Internal Call
(2) 1400:...

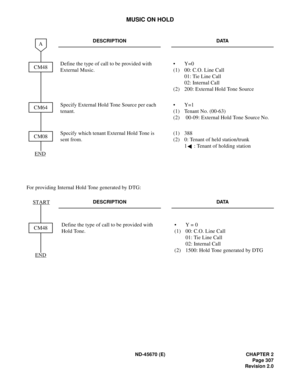

ND-45670 (E) CHAPTER 2
Page 307
Revision 2.0
MUSIC ON HOLD
For providing Internal Hold Tone generated by DTG:
DESCRIPTION DATA
Define the type of call to be provided with
External Music.•Y=0
(1) 00: C.O. Line Call
01: Tie Line Call
02: Internal Call
(2) 200: External Hold Tone Source
Specify External Hold Tone Source per each
tenant.•Y=1
(1) Tenant No. (00-63)
(2) 00-09: External Hold Tone Source No.
Specify which tenant External Hold Tone is
sent from.(1) 388
(2) 0: Tenant of held station/trunk
1 :...

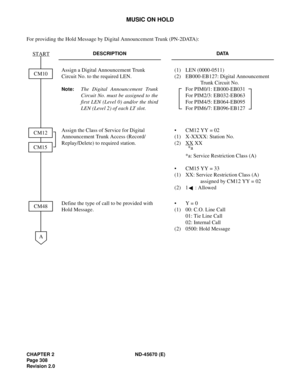

CHAPTER 2 ND-45670 (E)
Pag e 3 08
Revision 2.0
MUSIC ON HOLD
For providing the Hold Message by Digital Announcement Trunk (PN-2DATA):
DESCRIPTION DATA
Assign a Digital Announcement Trunk
Circuit No. to the required LEN.
Note:The Digital Announcement Trunk
Circuit No. must be assigned to the
first LEN (Level 0) and/or the third
LEN (Level 2) of each LT slot.(1) LEN (0000-0511)
(2) EB000-EB127: Digital Announcement
Trunk Circuit No.
For PIM0/1: EB000-EB031
For PIM2/3: EB032-EB063
For PIM4/5:...

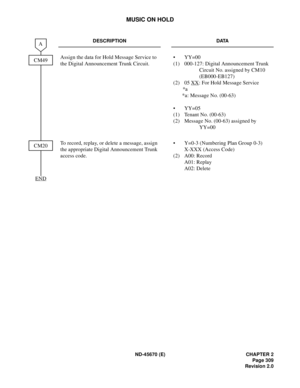

ND-45670 (E) CHAPTER 2
Page 309
Revision 2.0
MUSIC ON HOLD
DESCRIPTION DATA
Assign the data for Hold Message Service to
the Digital Announcement Trunk Circuit.• YY=00
(1) 000-127: Digital Announcement Trunk
Circuit No. assigned by CM10
(EB000-EB127)
(2) 05 XX
: For Hold Message Service
*a
*a: Message No. (00-63)
• YY=05
(1) Tenant No. (00-63)
(2) Message No. (00-63) assigned by
YY=00
To record, replay, or delete a message, assign
the appropriate Digital Announcement Trunk
access code.• Y=0-3...
