NEC Neax2000 Ivs Feature Programming Manual

CHAPTER 2 ND-45670 (E)
Pag e 3 30
Revision 2.0
PAD LOCK (1300 Series Enhancement)
DESCRIPTION DATA

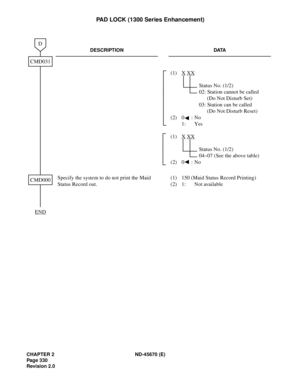

(1) X XX
Status No. (1/2)
02: Station cannot be called
(Do Not Disturb Set)
03: Station can be called
(Do Not Disturb Reset)
(2) 0 : No
1: Yes
(1) X
 XX
Status No. (1/2)
04~07 (See the above table)
(2) 0 : No
Specify the system to do not print the Maid
Status Record out.(1) 150 (Maid Status Record Printing)
(2) 1: Not available
CMD031
D
CMD000
END

ND-45670 (E) CHAPTER 2
Page 331
Revision 2.0
PAD LOCK (1300 Series Enhancement)

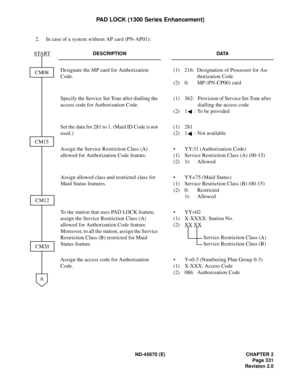

2. In case of a system without AP card (PN-AP01):
DESCRIPTION DATA
Designate the MP card for Authorization
Code.(1) 216: Designation of Processor for Au-
thorization Code
(2) 0: MP (PN-CP00) card
Specify the Service Set Tone after dialling the
access code for Authorization Code.(1) 362: Provision of Service Set Tone after
dialling the access code
(2) 1 : To be provided
Set the data for 281 to 1. (Maid ID Code is not...

CHAPTER 2 ND-45670 (E)
Pag e 3 32
Revision 2.0
PAD LOCK (1300 Series Enhancement)
DESCRIPTION DATA

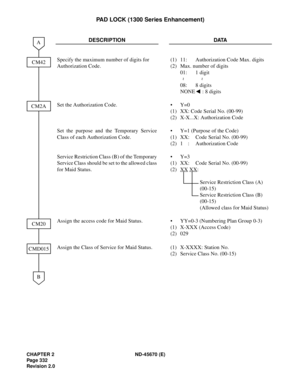

Specify the maximum number of digits for
Authorization Code.(1)
(2)11: Authorization Code Max. digits
Max. number of digits
01: 1 digit
08: 8 digits
NONE : 8 digits
Set the Authorization Code. •
(1)
(2)Y=0
XX: Code Serial No. (00-99)
X-X...X: Authorization Code
Set the purpose and the Temporary Service
Class of each Authorization Code.•
(1)
(2)Y=1 (Purpose of the Code)
XX: Code Serial No. (00-99)
1 :...

ND-45670 (E) CHAPTER 2
Page 333
Revision 2.0
PAD LOCK (1300 Series Enhancement)
DESCRIPTION DATA

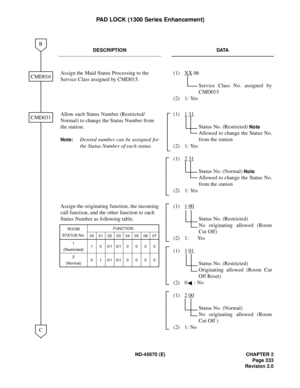

Assign the Maid Status Processing to the
Service Class assigned by CMD015.(1) XX 06
Service Class No. assigned by
CMD015
(2) 1: Yes
Allow each Status Number (Restricted/
Normal) to change the Status Number from
the station.
Note:Desired number can be assigned for
the Status Number of each status.(1) 1
 31
Status No. (Restricted) Note
Allowed to change the Status No.
from the station
(2) 1: Yes
(1) 2
 31...

CHAPTER 2 ND-45670 (E)
Pag e 3 34
Revision 2.0
PAD LOCK (1300 Series Enhancement)
HARDWARE REQUIRED
PN-AP00 card
PN-AP01 card is required for providing the Authorization Code:
• exceeding 8 digits.
• with check code.
• total of more than 100 codes.
DESCRIPTION DATA

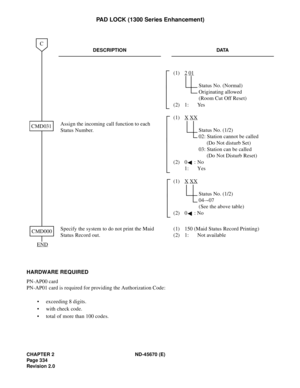

Assign the incoming call function to each
Status Number.(1) 2
 01
Status No. (Normal)
Originating allowed
(Room Cut Off Reset)
(2) 1: Yes
(1) X
 XX
Status No. (1/2)
02: Station cannot be called
(Do Not disturb Set)
03: Station can be called...

ND-45670 (E) CHAPTER 2
Page 335
Revision 2.0

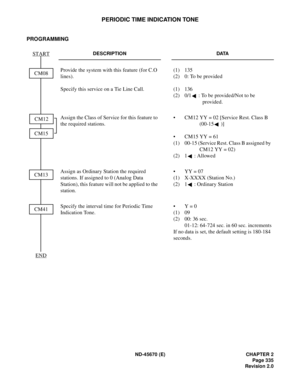

PERIODIC TIME INDICATION TONE
PROGRAMMING
DESCRIPTION DATA
Provide the system with this feature (for C.O
lines).
Specify this service on a Tie Line Call.(1) 135
(2)  0: To be provided
(1) 136
(2)  0/1 : To be provided/Not to be
provided.
Assign the Class of Service for this feature to
the required stations.•  CM12 YY = 02 [Service Rest. Class B
(00-15 )]
•  CM15 YY = 61
(1)  00-15 (Service Rest. Class B assigned by
CM12 YY = 02)
(2) 1 : Allowed
Assign as...

CHAPTER 2 ND-45670 (E)
Pag e 3 36
Revision 2.0
POOLED LINE ACCESS
PROGRAMMING
DESCRIPTION DATA

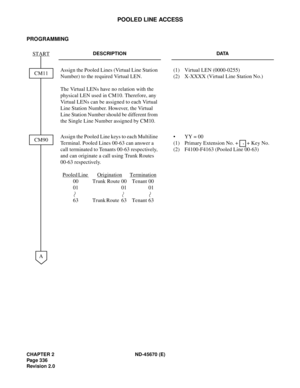

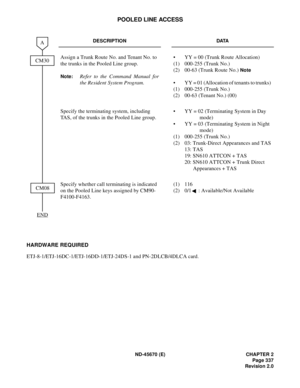

Assign the Pooled Lines (Virtual Line Station
Number) to the required Virtual LEN.
The Virtual LENs have no relation with the
physical LEN used in CM10. Therefore, any
Virtual LENs can be assigned to each Virtual
Line Station Number. However, the Virtual
Line Station Number should be different from
the Single Line Number assigned by CM10.(1) Virtual LEN (0000-0255)
(2)  X-XXXX (Virtual Line Station No.)...

ND-45670 (E) CHAPTER 2
Page 337
Revision 2.0
POOLED LINE ACCESS
HARDWARE REQUIRED
ETJ-8-1/ETJ-16DC-1/ETJ-16DD-1/ETJ-24DS-1 and PN-2DLCB/4DLCA card.
DESCRIPTION DATA
Assign a Trunk Route No. and Tenant No. to
the trunks in the Pooled Line group.
Note:Refer to the Command Manual for
the Resident System Program. •  YY = 00 (Trunk Route Allocation)
(1) 000-255 (Trunk No.)
(2)  00-63 (Trunk Route No.)
Note
•  YY = 01 (Allocation of tenants to trunks)
(1) 000-255 (Trunk No.)
(2)  00-63 (Tenant No.)...

CHAPTER 2 ND-45670 (E)
Pag e 3 38
Revision 2.0
POWER FAILURE TRANSFER
PROGRAMMING

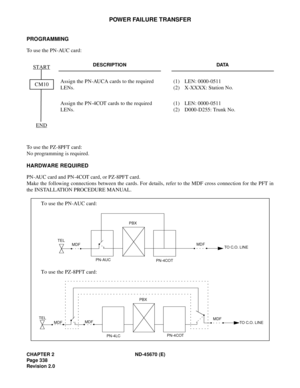

To use the PN-AUC card:
To use the PZ-8PFT card:
No programming is required.
HARDWARE REQUIRED
PN-AUC card and PN-4COT card, or PZ-8PFT card.
Make the following connections between the cards. For details, refer to the MDF cross connection for the PFT in
the INSTALLATION PROCEDURE MANUAL.
DESCRIPTION DATA
Assign the PN-AUCA cards to the required
LENs. (1) LEN: 0000-0511
(2)  X-XXXX: Station No.
Assign the PN-4COT cards to...

ND-45670 (E) CHAPTER 2
Page 339
Revision 2.0
PRIORITY CALL

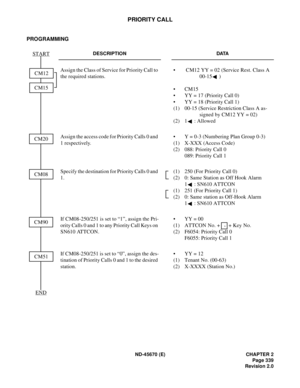

PROGRAMMING
DESCRIPTION DATA
Assign the Class of Service for Priority Call to
the required stations. •  CM12 YY = 02 (Service Rest. Class A
00-15 )
• CM15
•  YY = 17 (Priority Call 0)
•  YY = 18 (Priority Call 1)
(1)  00-15 (Service Restriction Class A as-
signed by CM12 YY = 02)
(2) 1 : Allowed
Assign the access code for Priority Calls 0 and
1 respectively. •  Y = 0-3 (Numbering Plan Group 0-3)
(1)  X-XXX (Access Code)
(2)  088:...
