NEC Neax2000 Ivs Feature Programming Manual

CHAPTER 2 ND-45670 (E)
Pag e 3 40
Revision 2.0

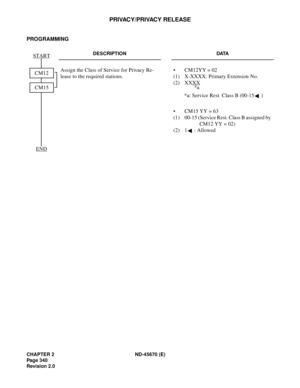

PRIVACY/PRIVACY RELEASE
PROGRAMMING

DESCRIPTION DATA
Assign the Class of Service for Privacy Re-
lease to the required stations. •  CM12YY = 02
(1)  X-XXXX: Primary Extension No.
(2) XXXX
*a: Service Rest. Class B (00-15 )
•  CM15 YY = 63
(1)  00-15 (Service Rest. Class B assigned by
CM12 YY = 02)
(2) 1 : Allowed
START
END
CM12
CM15*a

ND-45670 (E) CHAPTER 2
Page 341
Revision 2.0

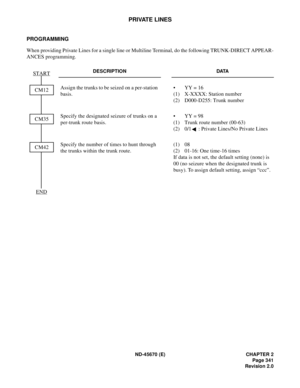

PRIVATE LINES
PROGRAMMING
When providing Private Lines for a single line or Multiline Terminal, do the following TRUNK-DIRECT APPEAR-
ANCES programming.
DESCRIPTION DATA
Assign the trunks to be seized on a per-station
basis.•  YY = 16
(1)  X-XXXX: Station number
(2) D000-D255: Trunk number
Specify the designated seizure of trunks on a
per-trunk route basis.•  YY = 98
(1)  Trunk route number (00-63)
(2)  0/1 : Private Lines/No Private Lines

Specify the...

CHAPTER 2 ND-45670 (E)
Pag e 3 42
Revision 2.0

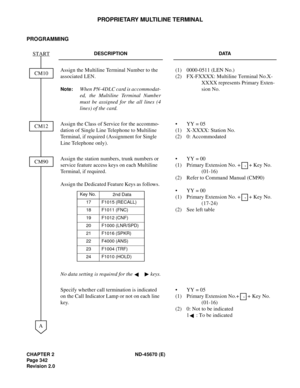

PROPRIETARY MULTILINE TERMINAL
PROGRAMMING
DESCRIPTION DATA
Assign the Multiline Terminal Number to the
associated LEN.
Note:When PN-4DLC card is accommodat-
ed, the Multiline Terminal Number
must be assigned for the all lines (4
lines) of the card.(1) 0000-0511 (LEN No.)
(2)  FX-FXXXX: Multiline Terminal No.X-
XXXX represents Primary Exten-
sion No.
Assign the Class of Service for the accommo-
dation of Single Line Telephone to Multiline
Terminal, if...

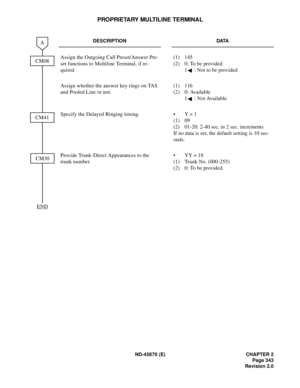

ND-45670 (E) CHAPTER 2
Page 343
Revision 2.0
PROPRIETARY MULTILINE TERMINAL
DESCRIPTION DATA
Assign the Outgoing Call Preset/Answer Pre-
set functions to Multiline Terminal, if re-
quired.(1) 145
(2)  0: To be provided
1 : Not to be provided
Assign whether the answer key rings on TAS
and Pooled Line or not.(1) 116
(2)  0: Available
1 : Not Available
Specify the Delayed Ringing timing. •  Y = 1
(1) 09
(2)  01-20: 2-40 sec. in 2 sec. increments
If no data is set, the default setting is 10 sec-
onds....

CHAPTER 2 ND-45670 (E)
Page 344 Addendum-001
Revision 2.1 JULY, 1998
PROPRIETARY MULTILINE TERMINAL
To provide the key number 30 through 37 of Multiline Terminal (ETJ-24DS-1/DTP-32-1/DTP-32D-1), do the fol-
lowing programming.
DESCRIPTION DATA
Assign the dummy terminal number (Add-
On-Module number) for the key number 30
through 37.
Note:When the data assignment of both
Add-On Module and DSS Console
are required, do not use the same
number (the last two digits of the da-
ta).(1) 0000-0511 (LEN No.)...

ND-45670 (E) CHAPTER 2
Page 345
Revision 2.0

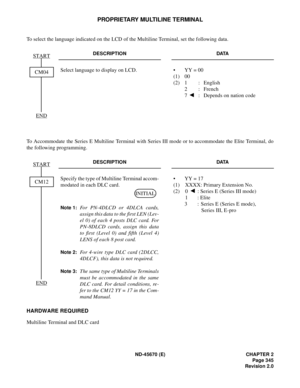

PROPRIETARY MULTILINE TERMINAL
To select the language indicated on the LCD of the Multiline Terminal, set the following data.
To Accommodate the Series E Multiline Terminal with Series III mode or to accommodate the Elite Terminal, do
the following programming.
HARDWARE REQUIRED
Multiline Terminal and DLC card
DESCRIPTION DATA
Select language to display on LCD. • YY = 00
(1) 00
(2) 1 : English
2 : French
7 :  Depends on nation code
DESCRIPTION DATA
Specify...

CHAPTER 2 ND-45670 (E)
Pag e 3 46
Revision 2.0

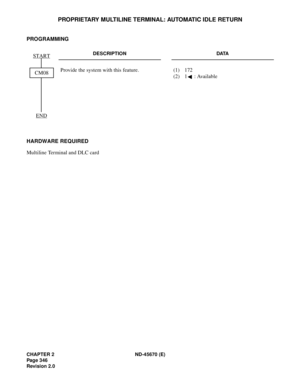

PROPRIETARY MULTILINE TERMINAL: AUTOMATIC IDLE RETURN
PROGRAMMING
HARDWARE REQUIRED
Multiline Terminal and DLC card
DESCRIPTION DATA
Provide the system with this feature.  (1) 172
(2) 1 : Available
START
END
CM08

ND-45670 (E) CHAPTER 2
Page 347
Revision 2.0

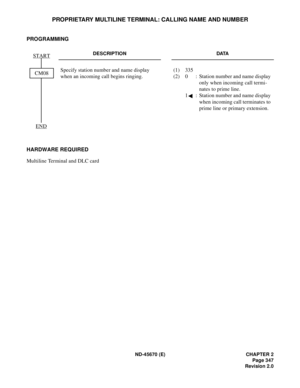

PROPRIETARY MULTILINE TERMINAL: CALLING NAME AND NUMBER
PROGRAMMING
HARDWARE REQUIRED
Multiline Terminal and DLC card
DESCRIPTION DATA
Specify station number and name display
when an incoming call begins ringing.(1) 335
(2) 0 : Station number and name display
only when incoming call termi-
nates to prime line.
1 : Station number and name display
when incoming call terminates to
prime line or primary extension.
START
END
CM08

CHAPTER 2 ND-45670 (E)
Pag e 3 48
Revision 2.0

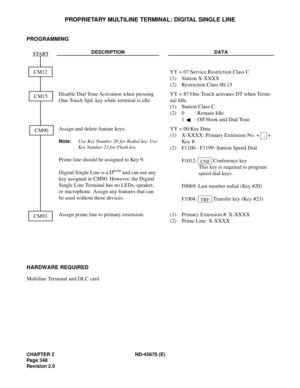

PROPRIETARY MULTILINE TERMINAL: DIGITAL SINGLE LINE
PROGRAMMING
HARDWARE REQUIRED
Multiline Terminal and DLC card
DESCRIPTION DATA
YY = 07:Service Restriction Class C
(1) Station X-XXXX
(2) Restriction Class 00-15
Disable Dial Tone Activation when pressing
One-Touch Spd. key while terminal is idle.YY = 87:One-Touch activates DT when Termi-
nal Idle
(1)Station Class C
(2) 0 : Remain Idle
1  : Off Hook and Dial Tone
Assign and delete feature keys.
Note:Use...

ND-45670 (E) CHAPTER 2
Addendum-001 Page 348-1
JULY, 1998 Revision 2.1
PROPRIETARY MULTILINE TERMINAL: DYNAMIC DIAL PAD
(1900 Series Enhancement)
PROGRAMMING
Do the following programming to make an outgoing call. Press any key on the dial pad of a Multiline Terminal, with-
out pressing a Speaker key or going off hook.
DESCRIPTION DATA
Assign a Prime line to the Multiline Terminal. (1) X-XXXX: Primary Extension No.
(2) X-XXXX: Station No.
Assign Service Restriction Class A to each
station.• YY=02
(1)...
