1. Introduction

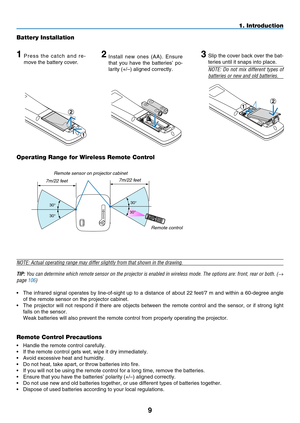

Battery Installation
1P r e s s  t h e  c a t c h  a n d  r e-
move the battery cover.
Install  new  ones  (AA).  Ensure
that  you  have  the  batteries’  po-
larity (+/–) aligned correctly.
Slip the cover back over the bat-
teries until it snaps into place.
NOTE:  Do  not  mix  different  types  of
batteries or new and old batteries.
NOTE: Actual operating range may differ slightly from that shown in the \
drawing.
TIP: You can determine which remote sensor on the...

10
300
240
200
150
120
100
60
80
40
1


This section describes how to set up your projector and how to connect P\
Cs, video and audio sources.
2. Installation and Connections

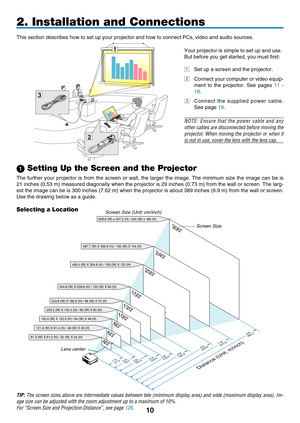

 Setting Up the Screen and the Projector
The  further  your  projector  is  from  the  screen  or  wall,  the  larger  the  image.  The  minimum  size  the  image  can  be  is
21 inches (0.53 m) measured diagonally when the projector is 29 inches (0.73 m) from the wall or screen. The larg-
est the image can be is 300...

11
WIRELESS
WIRELESSUSB ( LAN )
VIDEO INAUDIO IN
USBLANAUDIO INHDMI INAUDIO INCOMPUTER /COMPONENT 2 INCOMPUTER /COMPONENT 1 IN
PC CONTROLMONITOR OUTAUDIO OUT
S-VIDEO INAUDIO IN
L/MONO
L/MONO
R
R
PHONE
COMPUTER/COMPONENT 2 IN
COMPUTER/COMPONENT 1 IN
PHONE
PHONE
AUDIO INAUDIO IN
2. Installation and Connections

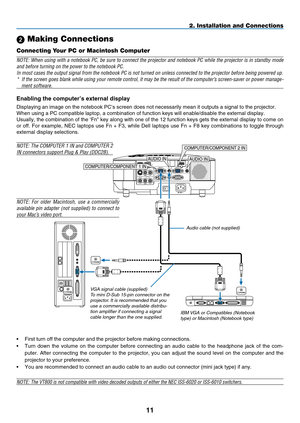

 Making Connections
Connecting Your PC or Macintosh Computer
NOTE: When using with a notebook PC, be sure to connect the projector and notebook PC while the projector is in standby mode
and before...

1
2. Installation and Connections

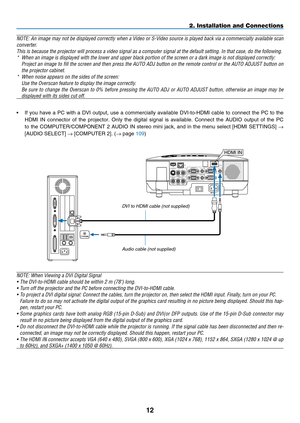

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available scan
converter.
This is because the projector will process a video signal as a computer \
signal at the default setting. In that case, do the following.
*
  When an image is displayed with the lower and upper black portion of the\
 screen or a dark image is not displayed correctly:

Project an image to fill the screen and then press the AUTO...

1
AUDIOIN
WIRELESS
WIRELESS

VIDEO INAUDIO IN
USBLANAUDIO INHDMI INAUDIO INCOMPUTER /COMPONENT 2 INCOMPUTER /COMPONENT 1 IN
PC CONTROLMONITOR OUTAUDIO OUT
S-VIDEO INAUDIO IN
L/MONO
L/MONO
R
R
PHONE
AUDIO OUTMONITOR OUT
2. Installation and Connections

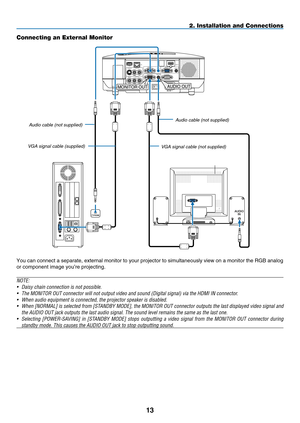

Connecting an External Monitor
You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog
or component image you’re projecting.
NOTE:
•
  Daisy chain connection is not possible.
•
  The MONITOR...

14
2. Installation and Connections

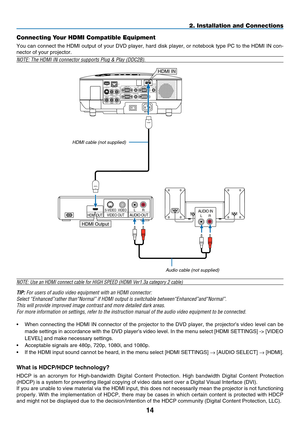

Connecting Your HDMI Compatible Equipment
You can connect the HDMI output of your DVD player, hard disk player, or notebook type PC to the HDMI IN con-
nector of your projector.
NOTE: The HDMI IN connector supports Plug & Play (DDC2B).
AUDIO INL RAUDIO OUTL RVIDEO OUTHDMI OUTS-VIDEOVIDEO
WIRELESS
WIRELESS
VIDEO INAUDIO IN
USBLANAUDIO INHDMI INAUDIO INCOMPUTER /COMPONENT 2 INCOMPUTER /COMPONENT 1 IN
PC CONTROLMONITOR OUTAUDIO OUT
S-VIDEO INAUDIO IN
L/MONO
L/MONO
R
R...

15
AUDIO INL R
AUDIO OUT
LR
Component
Y Cb Cr
WIRELESS
WIRELESSVIDEO INAUDIO IN
USBLANAUDIO INHDMI INAUDIO INCOMPUTER /COMPONENT 2 INCOMPUTER /COMPONENT 1 IN
PC CONTROLMONITOR OUTAUDIO OUT
S-VIDEO INAUDIO IN
L/MONO
L/MONO
R
R
COMPUTER/COMPONENT 1 IN
COMPUTER/COMPONENT 2 IN
AUDIO IN
AUDIO IN
2. Installation and Connections

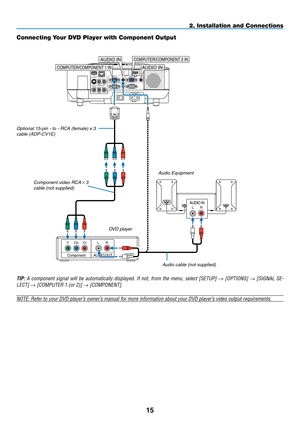

Connecting Your DVD Player with Component Output
dV d  player a udio  e quipment
a udio cable (not supplied)
Component video
r
C
a
3 cable (not supplied)
TIP:  A  component  signal...

1
AUDIO INL RAUDIO OUTLRVIDEO OUTS-VIDEOVIDEO
WIRELESS
WIRELESSVIDEO INAUDIO IN
USBLANAUDIO INHDMI INAUDIO INCOMPUTER /COMPONENT 2 INCOMPUTER /COMPONENT 1 IN
PC CONTROLMONITOR OUTAUDIO OUT
S-VIDEO INAUDIO IN
L/MONO
L/MONO
R
R
S-VIDEO IN
VIDEO IN
AUDIO IN
AUDIO IN
2. Installation and Connections

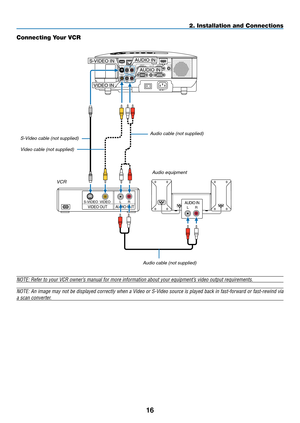

Connecting Your VCR
s -Video cable (not supplied)
Video cable (not supplied)
VC r a udio equipment
a udio cable (not supplied)
NOTE: Refer to your VCR owner’s manual for more information about your...

17

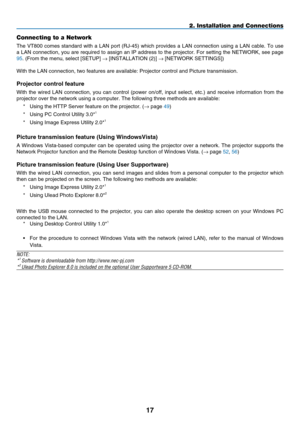

Connecting to a Network
The VT800 comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable. To use
a LAN connection, you are required to assign an IP address to the projector. For setting the NETWORK, see page
95. (From the menu, select [S ETUP] → [I NSTALLATION  (2)] → [NETWORK SETTINGS])
With the LAN connection, two features are available: Projector control a\
nd Picture transmission.
projector control feature
With  the  wired  LAN  connection,  you  can  control...

18

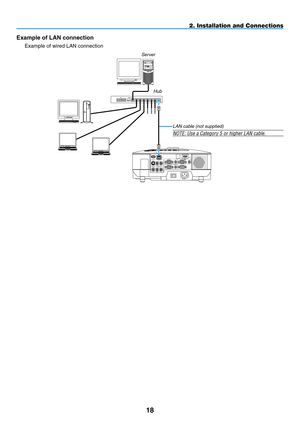

Example of LAN connect on
Example of wired LAN connection
LAN
VIDEO INAUDIO IN
USBLANAUDIO INHDMI INAUDIO INCOMPUTER /COMPONENT 2 INCOMPUTER /COMPONENT 1 INPC CONTROLMONITOR OUTAUDIO OUTS-VIDEO INAUDIO INL/MONO
L/MONO
R
R
server
h ub
lan cable (not supplied)
NOTE: Use a Category 5 or higher LAN cable.
2. Installation and Connections
