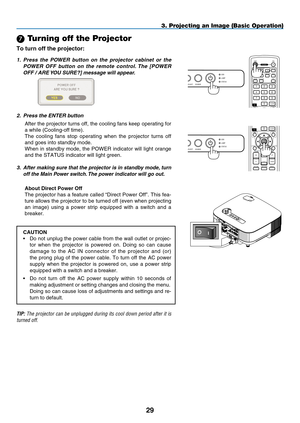

 Turning off the Projector
To turn off the projector:
3. Projecting an Image (Basic Operation)
1.  Press  the  POWER  button  on  the  projector  cabinet  or  the
POWER  OFF  button  on  the  remote  control. The  [ P OWER
O FF  / A RE  y OU   SURE
?] message will appear.

2.  Press the ENTER button
After the projector turns off, the cooling...

0
3. Projecting an Image (Basic Operation)

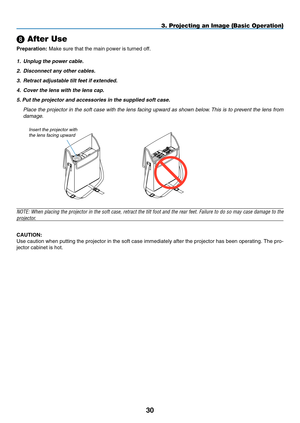

 After Use
p reparat  on: Make sure that the main power is turned off.
1.

Unplug the power cable.
2.

Disconnect any other cables.
3.

Retract adjustable tilt feet if extended.
4.

Cover the lens with the lens cap.
5. Put the projector and accessories in the supplied soft case.
  Place the projector in the soft case with the lens facing upward as shown below.  t his is to prevent the lens from
damage.
insert the projector with the lens facing...

1
MAGNIFYVOLUME
PICTURELAMP MODEASPECTAV-MUTE3D REFORMFREEZEID SETLENS SHIFTFOCUS/ZOOMHELP
PAGE
MENU
L-CLICKR-CLICK
EXIT0
ENTER
UP
DOWN
ID
ID

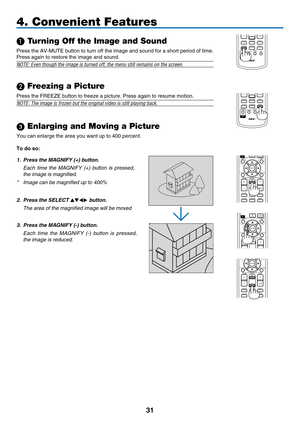

4. Convenient Features
 Turning Off the Image and Sound
Press the AV-MUTE button to turn off the image and sound for a short period of time.
Press again to restore the image and sound.
NOTE: Even though the image is turned off, the menu still remains on the\
 screen.
 Freezing a Picture
Press the FREEZE button to freeze a picture. Press again to resume...


MAGNIFYVOLUME
PICTURELAMP MODEASPECTAV-MUTE3D REFORMFREEZEID SETLENS SHIFTFOCUS/ZOOMHELP
PAGE
MENU
L-CLICKR-CLICK
EXIT
ENTER
UP
DOWN
ID
ID

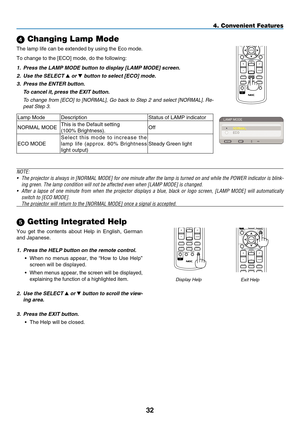

4. Convenient Features
 Getting Integrated Help
You  get  the  contents  about  Help  in  English,  German
and Japanese.
1.  Press the HELP button on the remote control.•
  When  no  menus  appear,  the  “How  to  Use  Help”
screen will be displayed.
•

When menus appear, the screen will be displayed,
explaining the function of a highlighted item.
2....

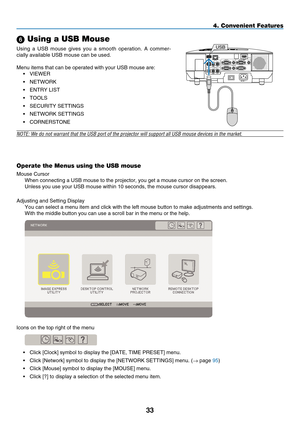

Operate the Menus using the USB mouse
Mouse Cursor
When connecting a USB mouse to the projector, you get a mouse cursor on \
the screen.
Unless you use your USB mouse within 10 seconds, the mouse cursor disapp\
ears.
Adjusting and Setting Display
You can select a menu item and click with the left mouse button to make \
adjustments and settings.
With the middle button you can use a scroll bar in the menu or the help.\
Icons on the top right of the menu
•  Click [Clock] symbol to display the...

4
4. Convenient Features

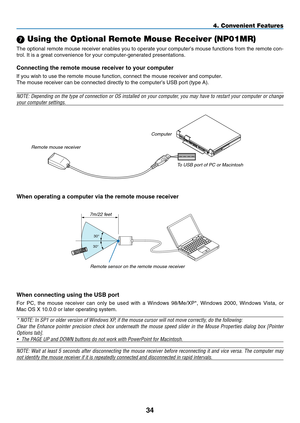

 Using the Optional Remote Mouse Receiver (NP01MR)
The optional remote mouse receiver enables you to operate your computer’s mouse functions from the remote con-
trol. It is a great convenience for your computer-generated presentation\
s.
Connect  ng the remote mouse rece  ver to your computer
If you wish to use the remote mouse function, connect the mouse receiver\
 and computer.
The mouse receiver can be connected directly to the computer’s USB po\
rt (type...

5
4. Convenient Features

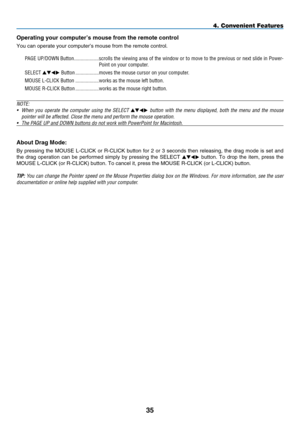

Operat  ng your computer’s mouse from the remote control
You can operate your computer’s mouse from the remote control.
PAGE UP/DOWN Button   ...................scrolls the viewing area of the window or to move to the previous or next slide in Power-
Point on your computer.
SELECT  Button  ..................moves the mouse cursor on your computer.
MOUSE L-CLICK Button   ..................works as the mouse left button.
MOUSE R-CLICK Button  ..................works...

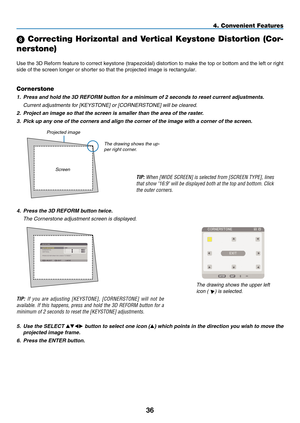

 Correcting Horizontal and Vertical Keystone Distortion (Cor-
nerstone)
Use the 3D Reform feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right
side of the screen longer or shorter so that the projected image is rect\
angular.
4. Convenient Features
Projected image
Cornerstone
1.  Press and hold the 3D REFORM button for a minimum of 2 seconds to reset current adjustments.
  Current adjustments for [ Ke
Y st O ne
] or [C O rnerst O ne] will be...

7

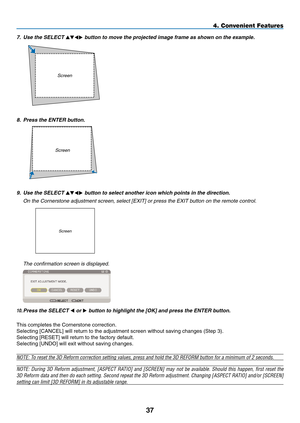

8.   Press the ENTER button.
4. Convenient Features
10.  Press the SELECT  or  button to highlight the [OK] and press the ENTER button.
This completes the Cornerstone correction.
Selecting [ C ANCEL] will return to the adjustment screen without saving changes (Step 3)\
.
Selecting [R ESET] will return to the factory default.
Selecting [U NDO] will exit without saving changes.
NOTE: To reset the 3D Reform correction setting values, press and hold the 3D R\
EFORM button for a minimum of 2...

8
4. Convenient Features

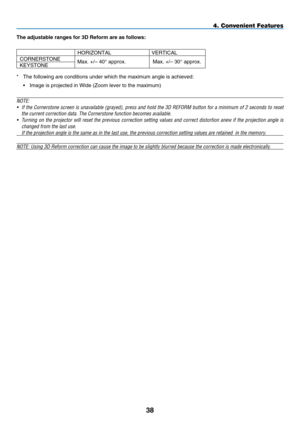

*  The following are conditions under which the maximum angle is achieved:
•   Image is projected in Wide (Zoom lever to the maximum)
NOTE:
•  If the Cornerstone screen is unavailable (grayed), press and hold the 3D REFORM button for a minimum of 2 seconds to reset
the current correction data. The Cornerstone function becomes available.\
•

Turning  on  the  projector  will  reset  the  previous  correction  setting  values  and  correct  distortion  anew  if  the...
