NEC Vt800 Projector User Manual

9
4. Convenient Features

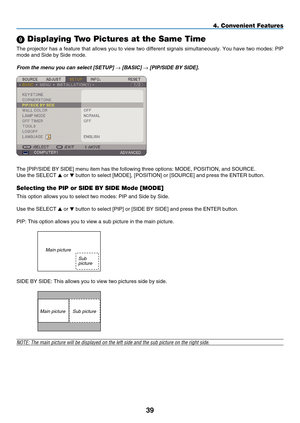

9 Displaying Two Pictures at the Same Time
The projector has a feature that allows you to view two different signals simultaneously. You have two modes: PIP
mode and Side by Side mode.
From the menu you can select [SETUP] → [BASIC] →  [PIP/SIDE B y  SIDE].
The [PIP/SIDE BY SIDE] menu item has the following three options: MODE, \
POSITION, and SOURCE.
Use the SELECT  or  button to select [MODE], [POSITION] or [SOURCE] and press the ENTER but\
ton.
Selecting the PIP or...

40
4. Convenient Features

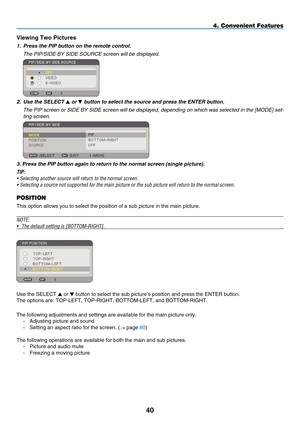

V ew  ng Two  p ctures
1.  Press the PIP button on the remote control.
  t he P i P/ side  BY  side  s
OU r C e
 screen will be displayed.

2.  Use the SELECT  or  button to select the source and press the ENTER button.
  t
he P
i
P screen or
side
 BY  side  screen will be displayed, depending on which was selected in the [MO de ] set
-
ting screen.

3. Press the PIP button again to return to the normal screen (single picture).
TIP:
•  Selecting another...

41
4. Convenient Features

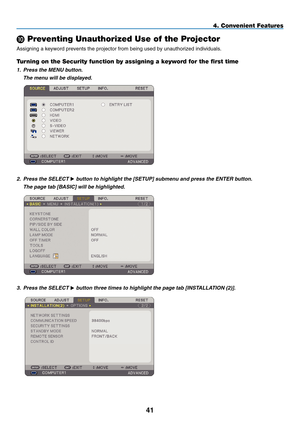

 Preventing Unauthorized Use of the Projector
Assigning a keyword prevents the projector from being used by unauthoriz\
ed individuals.
Turning on the Security function by assigning a keyword for the first time
1.  Press the MENU button.
  The menu will be displayed.

2.
  Press the SELECT
 button to highlight the [ S ETUP] submenu and press the ENTER button.

The page tab [ B
ASIC
] will be highlighted.

3.   Press the SELECT  button three times to highlight the page...

4
4. Convenient Features

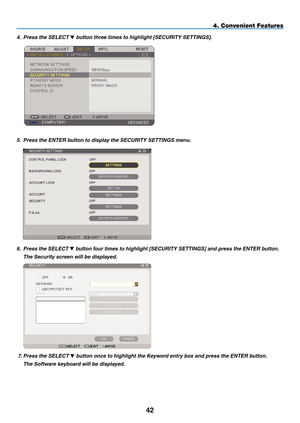

4.   Press the SELECT  button three times to highlight [ S ECURIT y SETTINGS].

5.
  Press the ENTER button to display the SECURIT y  SETTINGS menu.

6. Press the SELECT   button four times to highlight [SECURIT y  SETTINGS] and press the ENTER button.
 The Security screen will be displayed.

 7.  Press the SELECT  button once to highlight the Keyword entry box and press the ENTER button.

The Software keyboard will be displayed.

4
4. Convenient Features

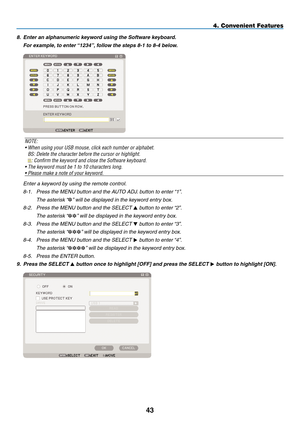

8.   Enter an alphanumeric keyword using the Software keyboard.
  For example, to enter “1234”, follow the steps 8-1 to 8-4 below.

NOTE:
•  When using your USB mouse, click each number or alphabet.

BS: Delete the character before the cursor or highlight.
: Confirm the keyword and close the Software keyboard.
• The keyword must be 1 to 10 characters long.
• Please make a note of your keyword.
e nter a keyword by using the remote control.
8-1.
  Press the M en U button...

44
4. Convenient Features

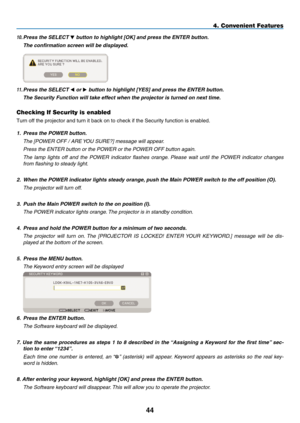

10. Press the SELECT  button to highlight [OK] and press the ENTER button.

The confirmation screen will be displayed.

11.   Press the SELECT  or   button to highlight [ y ES] and press the ENTER button.

The Security Function will take effect when the projector is turned on next time.
Checking If Security is enabled
Turn off the projector and turn it back on to check if the Security func\
tion is enabled.
1.
  Press the POWER button.
  t he [POW er  O ff  /  are  YOU  s...

45

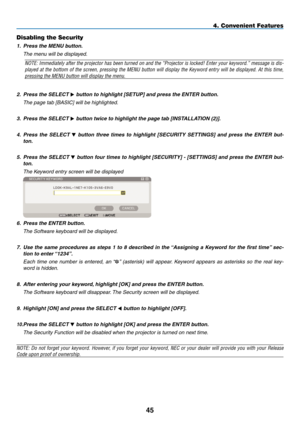

Disabling the Security
1.  Press the MENU button.
  t he menu will be displayed.
NOTE: Immediately after the projector has been turned on and the “Projector is locked! Enter your keyword.” message is dis-
played at the bottom of the screen, pressing the MENU button will display the Keyword entry will be displayed. At this time,
pressing the MENU button will display the menu.
2.

Press the SELECT
 button to highlight [ S ETUP] and press the ENTER button.
  t
he page tab [ Basi
C
] will be...

4
4. Convenient Features

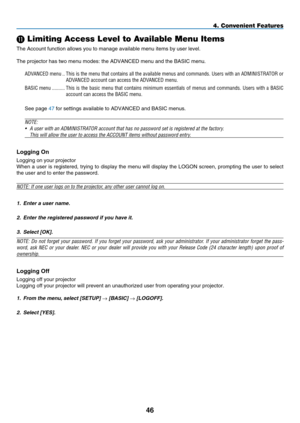

 Limiting Access Level to Available Menu Items
The Account function allows you to manage available menu items by user l\
evel.
The projector has two menu modes: the ADVANCED menu and the BASIC menu.
ADVANCED menu   ..This is the menu that contains all the available menus and commands. Use\
rs with an ADMINISTRATOR or
ADVANCED account can access the ADVANCED menu.
BASIC menu  ..........This  is  the  basic  menu  that  contains  minimum  essentials  of  menus  and...

47
4. Convenient Features

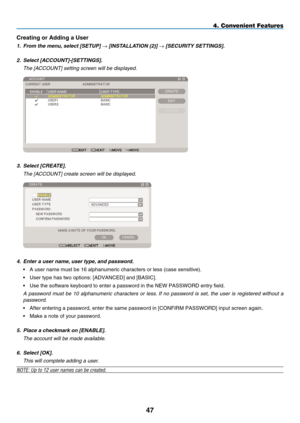

Creat ng or Add  ng a User
1.   From the menu, select [SETUP] → [INSTALLATION (2)] → [SECURIT y  SETTINGS].
2.

Select [ACCOUNT]-[SETTINGS].
  t
he [
a
CCOU
nt
] setting screen will be displayed.

3.    Select [CREATE].
  t
he [ a CCOU nt ] create screen will be displayed.

4.  Enter a user name, user type, and password.
•
  A user name must be 16 alphanumeric characters or less (case sensitive)\
.
•
  User type has two options: [ADVANCED] and [BASIC].
•
  Use the...

48
4. Convenient Features

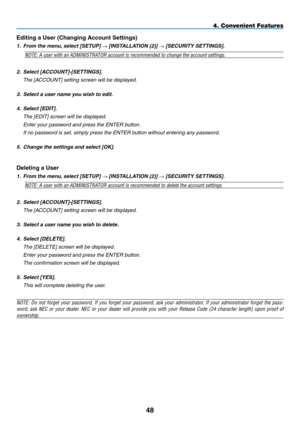

Ed t  ng a User (Chang  ng Account Sett  ngs)
1.   From the menu, select [SETUP] → [INSTALLATION (2)] → [SECURIT y  SETTINGS].
NOTE: A user with an ADMINISTRATOR account is recommended to change the account settings.
2.

Select [ACCOUNT]-[SETTINGS].
  t he [ a CCOU nt ] setting screen will be displayed.
3.

Select a user name you wish to edit.
4.

Select [EDIT].
  t he [ edit ] screen will be displayed.
  e nter your password and press the  enter...
