Troubleshooting > 51 >To remove a sheet just entering the fuser , separate the trailing edge of the sheet from the belt, push the fuser pressure release lever (1) towards the front and down to release the fuser’s grip on the sheet, and withdraw the sheet through the drum cavity area. Then allow the pressure release lever to rise again. 9.Starting with the cyan image drum unit nearest the fuser, replace the four image drums into the drum cavity, making sure to locate them in the correct order....
Page 52
Troubleshooting > 52 11.Open the rear stacker and check for a sheet of paper in the rear path area. >Pull out any sheets found in this area. >If the sheet is low down in this area and difficult to remove, it is probably still gripped by the fuser. In this case raise the top cover, reach around and press down on the fuser pressure release lever (1). 12.If you are not using the rear stacker, close it once paper has been removed from this area. 13.Press the front cover release and pull open the front...
Page 53
Troubleshooting > 53 14.Check inside the cover for sheets in this area and remove any that you find, then close the cover. 15.Pull out the Cassette Tray and ensure that all paper is stacked properly, is undamaged, and that the paper guides are properly positioned against the edges of the paper stack. When satisfied, replace the tray. 16.Finally, close the top cover and press down firmly at both sides so that the cover latches closed. When the jam has been cleared, if Jam Recovery is set to ON in the...
Page 54
Installing additional memory > 54 INSTALLING ADDITIONAL MEMORY This section explains how to install additional RAM memory into your printer as a memory upgrade. ORDER CODES Use the following order codes for additional memory: >256MB RAM – 01182901 >512MB RAM – 01182902 MEMORY UPGRADE The basic printer model comes equipped with 128MB of main memory. This can be upgraded with an additional memory board containing 256MB or 512MB, giving a maximum total memory capacity of 640MB. 1.Switch the printer off...
Page 55
Installing additional memory > 55 4.Locate the two fasteners (1) at each side of the belt (3) and the lifting bar (2) at the front end. 5.Unlock the fasteners and remove the belt as shown. 6.Carefully remove the new memory board from its wrapping. Try to handle the board only by its short edges, avoiding contact with any metal parts as far as possible. In particular, avoid touching the edge connector. 7.Notice that the memory board has a small cutout in the edge connector, which is closer to one end...
Page 56
Installing additional memory > 56 8.Identify the RAM expansion slot in the printer. Unclip the plastic cover to open this slot. 9.If the RAM expansion slot already contains a memory upgrade board, that board will have to be removed before you can install the new one. To remove it proceed as follows, otherwise skip to step 10. (a) Identify the locking clips at each end of the RAM expansion slot. (b) Push the clips outward and back into the printer. The board will pop out slightly. (c) Grip the board...
Page 57
Installing additional memory > 57 16.When the printer is ready, print a menu map (see “Information menu” on page 21). 17.Examine the first page of the menu map. Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This list contains the figure for total memory size. This should indicate the total memory now installed, which should be the size of memory board you have installed plus 128MB. Downloaded From ManualsPrinter.com Manuals
Page 58
Specifications > 58 SPECIFICATIONS C3600 - N34116B ITEMSPECIFICATION Dimensions 376 x 479 x 290mm (W x D x H) Weight 21Kg approx. Print method LED exposed light source electronic photographic method Print speeds 16 pages per minute colour / 20 pages per minute monochrome Resolution 600 x 600, 600 x 1200dpi or 600 x 600dpi x 2bit Emulations PostScript 3 PCL 5c, HP-GL, PCL XL, PCL 6e Epson FX IBM Pro Printer III XL Auto Features Auto registration Auto density adjustment Auto consumable counter reset...
Page 59
Specifications > 59 Duty cycle 35,000 pages per month max., 5,000 pages per month average Toner lifeStarter: C, M, Y & K:1,000 pages at 5% coverage (500 pages to charge image drum, 500 pages usable) Replacement: Standard CMY&K:1,500 pages at 5% coverage High capacity CMY&K: 2,500 pages at 5% coverage Image drum life 15,000 pages at 3 pages per job Belt life 50,000 A4 pages at 3 pages per job Fuser life 50,000 A4 pages Power supply 220 to 240VAC @ 50/60 Hz ± 1 Hz Power consumption Operating: 980 max.;...
Page 60

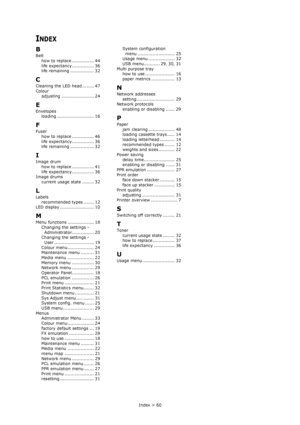

Index > 60 INDEX B Belt how to replace ............... 44 life expectancy............... 36 life remaining ................ 32 C Cleaning the LED head ........ 47 Colour adjusting ...................... 24 E Envelopes loading ......................... 16 F Fuser how to replace ............... 46 life expectancy............... 36 life remaining ................ 32 I Image drum how to replace ............... 41 life expectancy............... 36 Image drums current usage state ........ 32 L Labels...
