Panasonic Color Television Ct 27d11 Operating Instructions
Here you can view all the pages of manual Panasonic Color Television Ct 27d11 Operating Instructions . The Panasonic manuals for Television are available online for free. You can easily download all the documents as PDF.
Page 1
® ® Color Television Operating Instructions CT-27D11D CT-27D31C CT-2772SCCT-32D11C CT-32D31C CT-3274SCCT-36D11C CT-36D31C TQB2AA0398-1 10112 PRINTED IN MEXICO Télé-couleur Manuel d’utilisation CT-27D11D CT-27D31C CT-2772SCCT-32D11C CT-32D31C CT-3274SCCT-36D11C CT-36D31C TQB2AA0398-1 10112 IMPRIMÉ AU MEXIQUE 0398 Cover.fm Page 1 Tuesday, February 6, 2001 5:52 PM
Page 2
1 WARNING: To reduce the risk of electric shock do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel. The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance. The lightning flash with arrow head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons. RISK OF ELECTRIC SHOCK DO NOT OPEN...
Page 3
2 TABLE OF CONTENTS Table of Contents Feature Comparison Chart ......................................3 Congratulations ........................................................4 Customer Record .....................................................................4 Care and Cleaning ...................................................................4 Specifications ...........................................................................4 Installation...
Page 4
3 FEATURE COMPARISON CHART Feature Comparison Chart MODELS CT-27D11D CT-27D31C CT-2772SC CT-32D11C CT-32D31C CT-3274SC CT-36D11C CT-36D31C FEATURES MENU LANGUAGE ENG/SPAN/FRrrrrrrrr NO PIPrrr 1 TUNER PIPr 2 TUNER PIPrrrr VIDEO INPUT PICTURE MEMORYrrrrrrrr CLOSED CAPTIONINGrrrrrrrr V-CHIP CAPABILITY rrrrrrrr 75 OHM INPUTrrrrrrrr CHANNEL INFO BANNERrrrrrrrr VIDEO NORMrrrrrrrr AUDIO NORMrrrrrrrr STEREOrrrrrrrr AI SOUNDrrrrrrrr BASS/BALANCE/TREBLErrrrrrrr SURROUNDrrrrrrrr NUMBER OF SPEAKERS22222222 A/V IN...

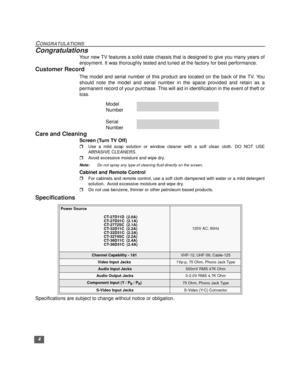

Page 5
4 CONGRATULATIONS Congratulations Your new TV features a solid state chassis that is designed to give you many years of enjoyment. It was thoroughly tested and tuned at the factory for best performance. Customer Record The model and serial number of this product are located on the back of the TV. You should note the model and serial number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event of theft or loss. Model Number Serial Number...
Page 6
5 INSTALLATION Installation Television Location This unit is intended to be used with an optional stand or entertainment centre-. Consult your dealer for available options. rAvoid excessive sunlight or bright lights, including reflections. rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure. rFluorescent lighting may reduce remote control transmitting range. rKeep away from magnetic equipment, including motors, fans and external speakers. CAUTION: Use...
Page 7
6 INSTALLATION Optional Cable Connections Shielded audio and video cables should be used between components. For best results: rUse 75-ohm coaxial shielded cables. rUse appropriate input and output connectors, that match your component connectors. rAvoid long cables to minimize interference. AC Power Supply Cord CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED...

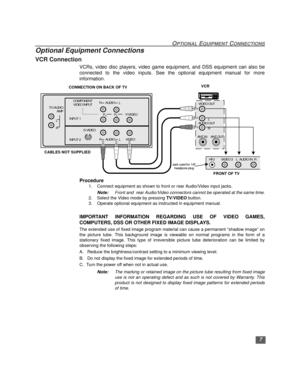

Page 8
7 OPTIONAL EQUIPMENT CONNECTIONS Optional Equipment Connections VCR Connection VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the optional equipment manual for more information. Procedure 1. Connect equipment as shown to front or rear Audio/Video input jacks. Note:Front and rear Audio/Video connectors cannot be operated at the same time. 2. Select the Video mode by pressing TV/VIDEO button. 3. Operate optional equipment as instructed in...

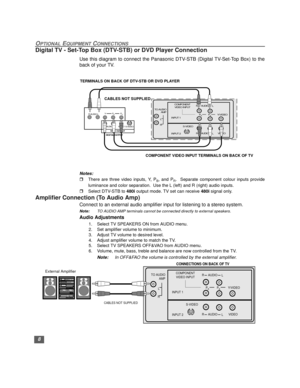

Page 9
8 OPTIONAL EQUIPMENT CONNECTIONS Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV. Notes: rThere are three video inputs, Y, PB, and PR. Separate component colour inputs provide luminance and color separation. Use the L (left) and R (right) audio inputs. rSelect DTV-STB to 480i output mode. TV set can receive 480i signal only. Amplifier Connection (To Audio Amp) Connect to an external audio...

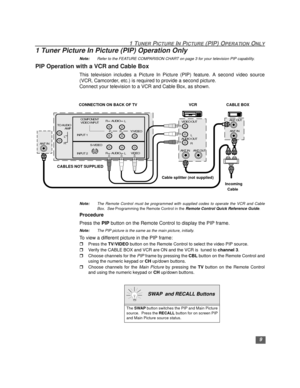

Page 10
9 1 TUNER PICTURE IN PICTURE (PIP) OPERATION ONLY 1 Tuner Picture In Picture (PIP) Operation Only Note:Refer to the FEATURE COMPARISON CHART on page 3 for your television PIP capability. PIP Operation with a VCR and Cable Box This television includes a Picture In Picture (PIP) feature. A second video source (VCR, Camcorder, etc.) is required to provide a second picture. Connect your television to a VCR and Cable Box, as shown. Note:The Remote Control must be programmed with supplied codes to operate...
